10G 1310nm 220m X2 Optic Transceiver

1550nm 1G fiber optic transceiver

10G 1310nm 220m X2 Optic Transceiver

Features

  • Compatible with X2 MSA Rev2.0b
  • Support of IEEE 802.3aq 10GBASE-LRM at 10.3125Gbps
  • Transmission Distance up to 220m(MMF)
  • Low Power Consumption
  • SC Receptacle 1310 DFB Laser
  • SC Duplex Optical Connector
  • Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
  • Management and control via MDIO 2-wire interface
  • Power Supply :+3.3V, APS(+1.2V)
  • Diagnostic Optics Monitoring
  • Temperature Range: 0~ 70 °C
  • ROHS Compatible

Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Data Center Applications

Product Description

The SPT-X2-LRM is a highly integrated、Serial optical transponder module for high-speed,

10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 220m transmission. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Ref.

Storage Ambient Temperature Range



-40

+85

°C

non condensing

Powered case Temperature Range



0

+70

°C

non condensing

Adaptable Power Supply (APS)

Vapsense

0

1.5

V

Voltage @ Pin APS Sense

Supply Voltage Range @ 3.3V

Vcc3

-0.5

4.0

V



Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Tc

0



+70

°C

Power Supply Voltage



VCC3

3.14

3.0

3.47

V



VAPS

1.152

1.2

1.248

Power Dissipation

PD



3.5

4

W

XAUI I/O Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

XAUI Date Rate

DR



3.125



Gb/s



XAUI Baud Rate Tolerance



-100



+100

ppm

Relative Tolerance

Differential Input Voltage Swing



220



1600

mv

8B/10B Coded Input Signal

Differential Output Voltage Swing



800



1600

mVp-p

RLOAD = 100Ω ± 5%

Differential Input Impedance



80

100

120

Ω



Total Output Jitter

TJXAUI





0.35

UI

no pre-equalization

Total Deterministic Output Jitter

DJXAUI





0.17

UI

no pre-equalization

Optical Interface

Transmitter Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Range

Iop

0



220

m

1

Operating Date Rate

DR



10.3125



Gb/s



Lanuch Power in OMA

Poma

-4.5



1.5

dBm



Average Lanuch Power

Pavg

-6.5



0.5

dBm



Input Centre Wavelength

λ

1260

1310

1355

nm



RMS Spectral width at 1260

RMS Spectral width at 1260-1300

RMS Spectral width at 1300-1355

Lrms

--

--

2.4

Figre 1

4

nm



Extinction Ratio

ER

3.5

--







Transmitter Waveform and Dispersion Penalty

TWDP





4.7

dB



Peak lanuch Power

OMA





3

dB



RIN20 OMA

RIN





-128

dB/HZ



Uncorrelated jitter (rms)

Jitter





0.033

UI



Optical Return Loss Tolerance

ORLT

20





dB



Note: 220m in OM1,OM2,OM3

Receiver Characteristics



Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate





10.3125



Gb/s



Input Centre Wavelength

λ

1260



1355

nm



Overload in OMA

Po

1.5





dBm



Stressed Sensitivity in OMA

OMAst





-6.5

dBm



Sensitivity in OMA for symmetrical test

Pmin





-6

dBm

1

Receiver Reflectance

ORL





-12

dB



Note :1. Measured at 10.3125Gb/s,Non-framed PRBS2 31-1,NRZ

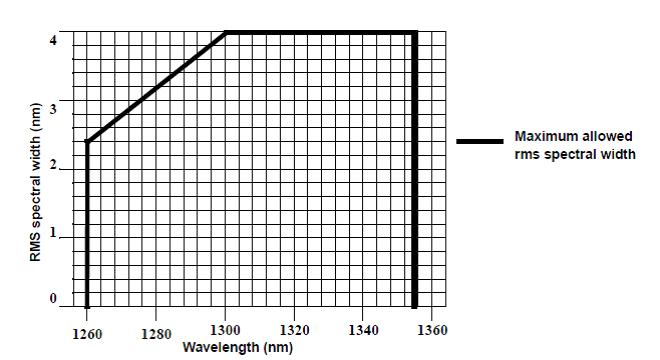

Figure 1: 10GBASE-LRM Transmitter Spectral Limits

Electrical PAD Layout



Host PCB X2 PINOUT



Pin Descriptions



PIN NO

Name

Dir

Logic

Function

Notes

1

GND





Electrical Ground



2

GND





Electrical Ground



3

GND





Electrical Ground



4

5.0V





Power



5

3.3V





Power



6

3.3V





Power



7

APS





Adaptive Power Supply



8

APS





Adaptive Power Supply



9

LASI

O

1.2V CMOS

Open Drain

Link Alarm Status Interrupt, low active, Open Drain Output

A pull-up resistor with 10-22KΩ to 1,2V is expected.

Logic High: Normal Operation

Logic Low: Link Alarm is indicated



10

Reset

I

1.2V CMOS

Open Drain

Low active Reset Input 10KΩ pull-up on Transceiver Logic high = Normal Operation

Logic Low = Reset asserted



11

VEND SPECIFIC





Vendor Specific Pin,. leave unconnected



12

TX ON/OFF

I

1.2V CMOS

Open Drain

High active Transmitter Enable Input

10KΩ pull-up on Transceiver

Logic high = Transmitter active (normal

Operation)

And Register Bit 1.9.0 set to low as well

Logic Low = shut down of Transmitter



13

RESERVED





RESERVED



14

MOD DETECT

O



1kΩ to Ground On Transceiver



15

VEND SPECIFIC





Vendor Specific Pin,. leave unconnected



16

VEND SPECIFIC





Vendor Specific Pin,. leave unconnected



17

MDIO

I/O

1.2V CMOS

Management Data I/O. Requires external 10-22 kΩ pull-

up to 1.2 V on host.



18

MDC

I

1.2V CMOS

Management Clock Input



19

PRTAD4

I



Port Address Bit 4(LOW=0)



20

PRTAD3

I



Port Address Bit 3(LOW=0)



21

PRTAD2

I



Port Address Bit 2(LOW=0)



22

PRTAD1

I



Port Address Bit 1(LOW=0)



23

PRTAD0

I



Port Address Bit 0(LOW=0)



24

VEND SPECIFIC





Vendor Specific Pin,. leave unconnected



25

APS SET

I



Feedback Input for APS, Input of APS Setting Resistor



26

RESERVED





RESERVED



27

APS SENSE

O



APS Sense Output for APS Control Circuit



28

APS





Adaptive Power Supply



29

APS





Adaptive Power Supply



30

3.3V





Power



31

3.3V





Power



32

5.0V





Power



33

GND





Electrical Ground



34

GND





Electrical Ground



35

GND





Electrical Ground







PIN NO

Name

Dir

Logic

Function

Notes

36

GND





Electrical Ground



37

GND





Electrical Ground



38

RESERVED





RESERVED



39

RESERVED





RESERVED



40

GND





Electrical Ground



41

RX LANE 0+





Module XAUI Output Lane 0+



42

RX LANE 0-





Module XAUI Output Lane 0-



43

GND





Electrical Ground



44

RX LANE 1+





Module XAUI Output Lane 1+



45

RX LANE 1-





Module XAUI Output Lane 1-



46

GND





Electrical Ground



47

RX LANE 2+





Module XAUI Output Lane 2+



48

RX LANE 2-





Module XAUI Output Lane 2-



49

GND





Electrical Ground



50

RX LANE 3+





Module XAUI Output Lane 2+



51

RX LANE 3-





Module XAUI Output Lane 2-



52

GND





Electrical Ground



53

GND





Electrical Ground



54

GND





Electrical Ground



55

RX LANE 0+





Module XAUI Output Lane 0+



56

RX LANE 0-





Module XAUI Output Lane 0-



57

GND





Electrical Ground



58

TX LANE 1+





Module XAUI Output Lane 1+



59

TX LANE 1-





Module XAUI Output Lane 1-



60

GND





Electrical Ground



61

TX LANE 2+





Module XAUI Output Lane 2+



62

TX LANE 2-





Module XAUI Output Lane 2-



63

GND





Electrical Ground



64

TX LANE 3+





Module XAUI Output Lane 2+



65

TX LANE 3-





Module XAUI Output Lane 2-



66

GND





Electrical Ground



67

RESERVED





RESERVED



68

RESERVED





RESERVED



69

GND





Electrical Ground



70

GND





Electrical Ground





Block Diagram of Adapter Power Supply Circuit



Package Dimensions











Ordering information



Part Number

Product Description

SPT-X2-LRM

1310nm, 10.3125Gbps, 220m, 0ºC ~ +70ºC
