Fiber Media Converter

Fiber Converter, Fiber Media Converter Sopto offers switches, routers and fiber converters including 10/100M, 10/100/1000M and 10G fiber converters, SFP fiber converters, manageable/unmanageable fiber converters, OEO fiber converters, POE fiber converters, fiber converter cards, and fiber converter chassis; transmitting distance from 2km(MM) to 150km(SM) with SC or LC or FC connectors.

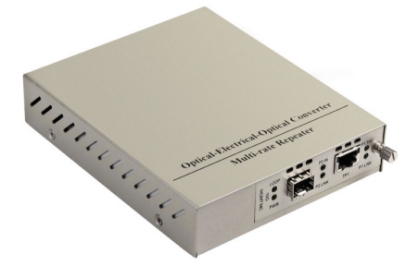

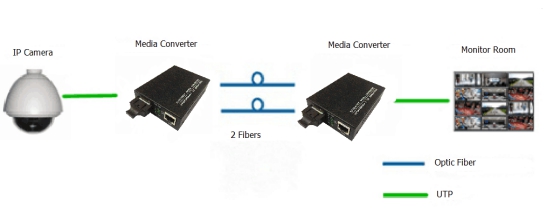

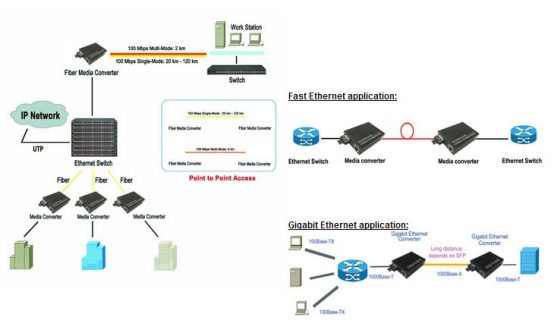

In Today's systems, LANs are becoming larger and more complicated. People are looking for equipment that is cost effective and flexible and easy to manage. The fiber media converters play an important role there. They can connect different types of media effectively and seamlessly. Fiber media converters are used in the fiber optic network to transform the signals sent from fiber glass to traditional UTP cables; they are typically used in Ethernet as physical layer networking equipments. Sopto offers 10/100M Ethernet fiber converters, gigabit fiber converters, SFP fiber converters, managed fiber converters, OEO fiber optic media converters, fiber converter cards, and fiber media converter chassis.


People also call fiber media converter as fiber converter which receives data signals, sends via one media, converts the signals and then transmits the signals into another kind of media. Fiber converters can convert the signals sent from copper cable to signals that run on the fiber cable. There are copper to fiber and fiber-to-fiber conversion devices, and single mode fiber converters and multimode fiber converters. For single mode fiber converters, there are dual fiber type and single fiber type which the fiber cable functions both as transmitting media and receiving media; while for multimode fiber converters, there are only dual fiber types. Single fiber media converters are also called WDM fiber optic media converters.


Working distance of the ethernet fiber media converters are different. For typical multimode ethernet fiber media converters, their working distance max is about 2km, while for single mode ethernet fiber media converters, their working distance can be 20km, 40km, 60km, 80km and up to 120km.

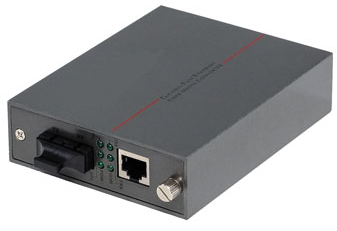

Standalone fiber media converter is a small device with the fiber optic interface and copper cable interface and the power supply adaptor. For the fiber optic interface, SC type is the most commonly used, but there are also FC and ST types. For the Ethernet interface, it is usually one or several UTP cable ports. There are also chassis type fiber media converters, typical type is a 19-inch rack-mounted chassis, with 16 slots on it, so that it can fit 16 pieces of chassis type fiber converters. For chassis type fiber media converters, they share the same power supply. There are also 14 Slot Media Converter Chassis. Its feature and application is as similar as 16 slot chassis fiber media converters. The difference is 14 slots chassis is used with standalone fiber media converters, while 16 slots chassis is used with card type fiber optic media converters, and 16 slot chassis is bigger size.



ProductsDescriptions

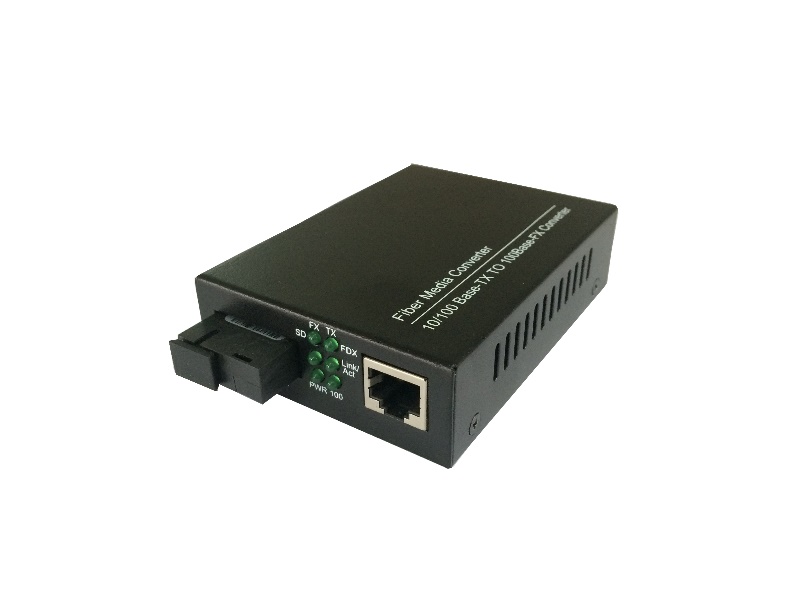

Fast Media Converter
Data rate: 10/100M
Dual fiber or single fiber (WDM)
Wavelength:850nm/1310nm/1550nm
External or internal power supply
Distance from SX 2km to ZX 120km
Manageable or unmanageable available

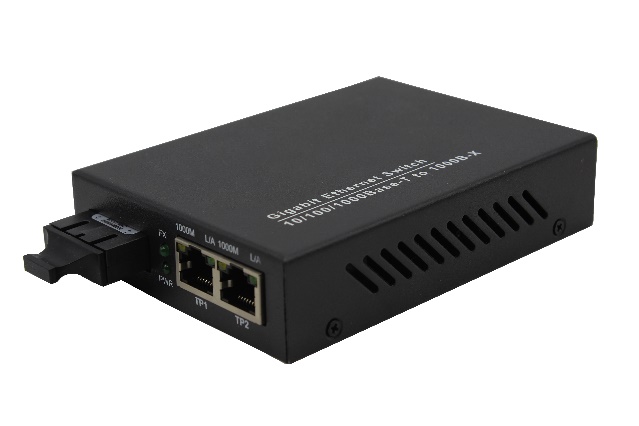

Gigabit Media Converter
Data rate: 1000M or 10/100/1000M
Dual fiber or single fiber (WDM)
Wavelength:850nm/1310nm/1550nm
External or internal power supply
Distance from SX 0.5km to ZX 120km
Manageable or unmanageable available
Gigabit SFP Media converter available
Multi UTP Converter
Multi UTP Converter 10/100M
1 Fiber port with 4 or 7 UTP ports
SM dual fiber 20km SC
External power supply
Managable(Vlan)
Management Fiber Switch
Management Fiber Switch
10/100M 1 Fiber port with 4 UTP port
SM dual fiber 20km SC
External power supply
Managable(Vlan)

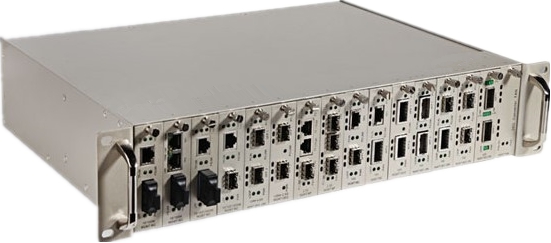

Media Converter Chassis

10/100m or 10/100/1000M standalone media converter
Two 220V or 110V or 48V power supply or both
14 or 16 slots for 10/100m or 10/100/1000M
Without management or CONSOLE, WEB, TELNET and SNMP management

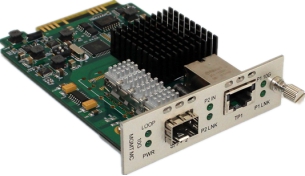

Media Converter Cards
Media converter card, 10/100M, MM/SM, dual fiber 2KM, SC, with or without management, 2km~80km distance

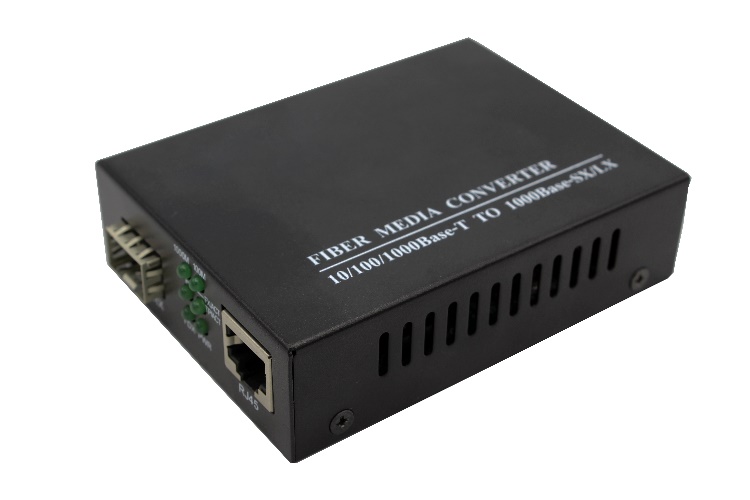

SFP Media Converter
Data rate: 10/100M (fast ethernet) or 1000M or 10/100/1000M (gigabit)
Available for SFP Port Dual fiber or single fiber (WDM)
Wavelength: 850nm/1310nm/1550nm
External or internal power supply
Distance from SX 0.5km to ZX 120km
Manageable or unmanageable available
10G Media Converter
For 10Gbps Ethernet function
Support ITUT prescribed DWDM/CWDM wavelength
Support DMI function for SFP+/XFP fiber module
Support PRBS31 Pattern Generator and Checker function
1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion
Support 2U Rack (16 channel) and standalone use
Powerful Network Management function(Web, SNMP, Console)
PSE Media Converter
10/100Base-TX UTP to 100Base-FX fiber media converter.
IEEE802.3af PoE PSE compatible.
9K bytes packet at cut-through mode
Built-in AC/DC power supply.
Choice of SC, BiDi or other connectors for multimode and singlemode.
LFP (Link Fault Pass-through) support
PD Media converter
10/100Base-TX UTP to 100Base-FX fiber media converter.
Built-in AC/DC power supply.
Choice of SC, BiDi or other connectors for multimode and singlemode.
Complied with IEEE802.3af standard, the DC/DC powered.

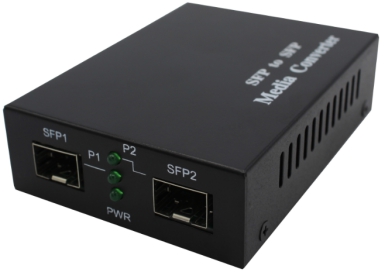

SFP to SFP
With the flexibility to convert fiber between single-mode, multi-mode, single-strand and CWDM wavelengths, one can easily extend network range to reach more remote locations.
SM to MM Media Converter
T4/T2 series fiber media converters 2 fiber ports
Adopted or repeater optical digital signals between single/single mode fiber and multi/multi mode fiber.
Manageable Converter
Standalone manageable Media converter
Data rate: 10/100M
Dual fiber for 10km
Wavelength:850nm/1310nm/1550nm
Supports LC/SC, SFP/1x9
Internal power supply
Remote Media Converter
Media converter,
10/100M, MM, 2KM, SC , IP113C external power supply manageable
Industrial Media converter
10/100M, F/H duplex, MDI/MDI-X auto negotiation
-40 to 75C operating temperature range
Fiber Ports: 100BaseFX ports (SC/ST connector, optional)Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2,5Km,optionalWavelength: 850nm, 1310 nm, 1550nm
