SC fast connector

Product Impression:

  1. Manufacturer: SOPTO
  2. Latest Price: Contact online customer service NOW!
  3. Cable Scope: 3.0 x 2.0 mm Bow-type Drop Cable
  4. Fiber Diameter: 125μm (652 & 657 )
  5. Coating Diameter: 250μm
  6. Mode: SM
  7. Operation Time: about 15s (exclude fiber presetting)
  8. Insertion Loss: ≤ 0.25dB(1310nm & 1550nm)
  9. Return Loss: ≤ -45dB
  10. Success Rate: >98%
  11. Reusable Times: >10 times
  12. Tensile Strength: >5 N
  13. Tighten Strength of Coating: >10 N
  14. Operating Temperature: -40~+85°C
  15. Storage Temperature: -20~+85°C
  16. Connector Size: 49.5*7*6mm or produced as per client's request
  17. On-line Tensile Strength Test (20 N): IL ≤ 0.3dB
  18. Mechanical Durability(500 times): IL ≤ 0.3dB
  19. Browse the Evaluation: Click here to browse



Performance Feature:

  1. Twin end-face of pre embedded fiber is polised in the factory.
  2. Fiber optics is aligned in V-groove through the ceramic ferrule.
  3. Side cover design provide complete preservation of the matching liquid.
  4. Length of the FTTH cable is controllable
  5. Simple tooling, easy operation, portable style and reusable design.



Applications

  1. Premise/Enterprise Networks
  2. LAN/WAN Connections
  3. Patch Panels
  4. Equipment Termination
  5. FTTx Applications
  6. Field Repair/Replacement
  7. Equipment Test Leads



Note: Part in order to prevail in kind. Please contact customer service before buying.



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.

 pay=

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



SOPTO SC Fsat Connector Introduction

SOPTO’S FAOC(Field Assembly Optical Connector) enable easy and fast fiber termination in the field. It is ready in less than two minutes without any adhesives or polishing processes. It is possible to reconnect, so can be reduced the defect rate by worker’s connection error. No Special assembly tool;No epoxy or polishing required;Fast and easy installation ( within 90 seconds); Can be reconnected in the field;Compatible with both 3mm drop cable and 3x2mm flat fiber cable.



SOPTO SC Fast Connector Installation

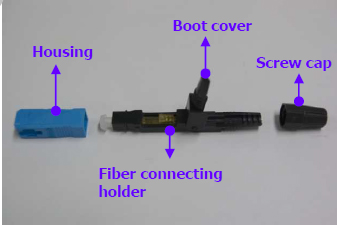

1. Arrange for a FAOC to assemble

2. Insert screw cap into optical cable.

3. Strip the coating of optical cable over 40mm.

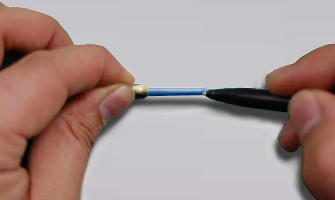

4.Mark the point of 22mm length on the 900㎛buffer using a rule on the polybag.

5. Strip the coating of 900/250㎛ from the end of 900㎛ to the point of 22mm marked(about 18mm) and clean the fiber using the alcohol and gauze.

6. Cut off the fiber at the length of 13mm using optical fiber cleaver.

7. Insert optical cable into the fiber guide on the boot. when it is checked  the bending of cable as above, stop inserting,

8. And maintaining the cable bending with right hand, push the connecting holder forward to the end and fix the fiber.

9. Take the boot cover down, connect the screw cap with boot by turning it and make the coating & strength member (yarn) fix.
Cut the yarn with scissor and arrange it.

10. Turn the protrusion of housing toward the bottom and unite it to the body.
Completion.

A.Pull out the housing and then separate them by turning the screw cap

B. Pull the fiber connecting holder in reverse with procedure 8. And then, pull out the cable and reassemble.

The video of SC fast connector installation.SOPTO SC Fast Connector Installation
