Splitter CWDM DWDM
Fiber optic splitter is used to split a fiber optic beam into several beams at a certain splitting ratio. Fiber optic splitter is one of the key components in FTTH.
Depend on the technology used; there are fused fiber splitter and PLC fiber splitter. Sopto is producing complete range of СWDM/DWDM systems that can be done according to customer requirements or network topology.

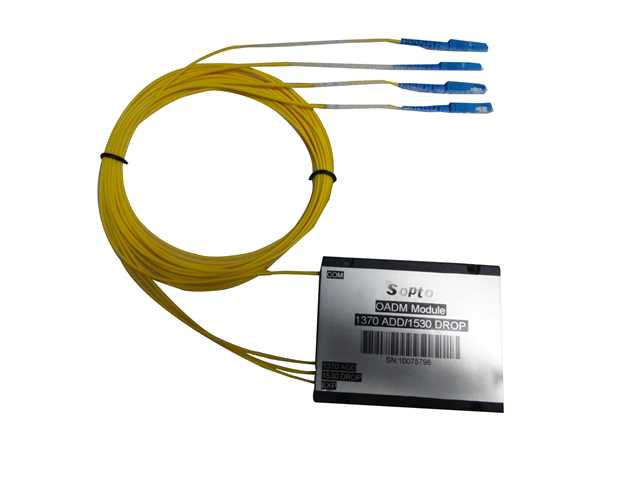

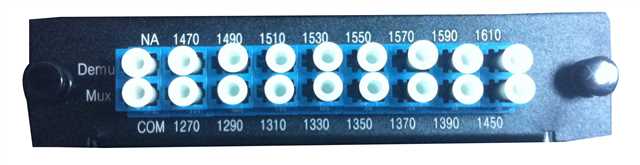

OADM | LGX type WDM Mux/Demux Single Fiber |

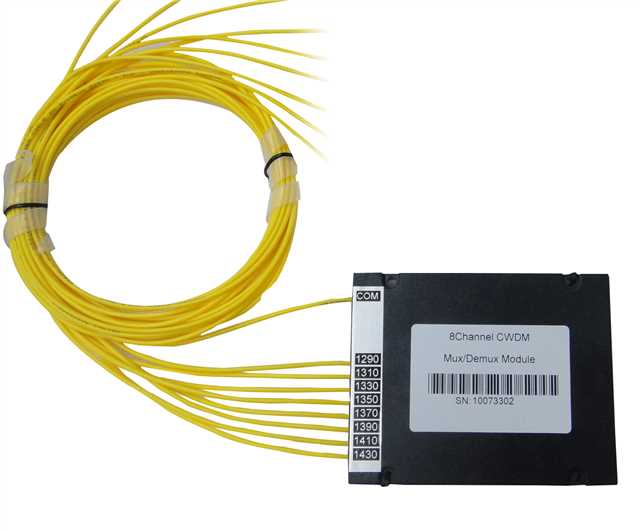

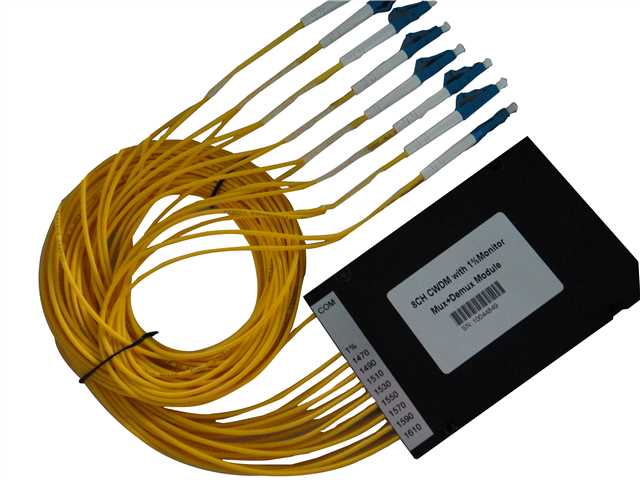

ABS type WDM Module Single or Duplex fiber | |

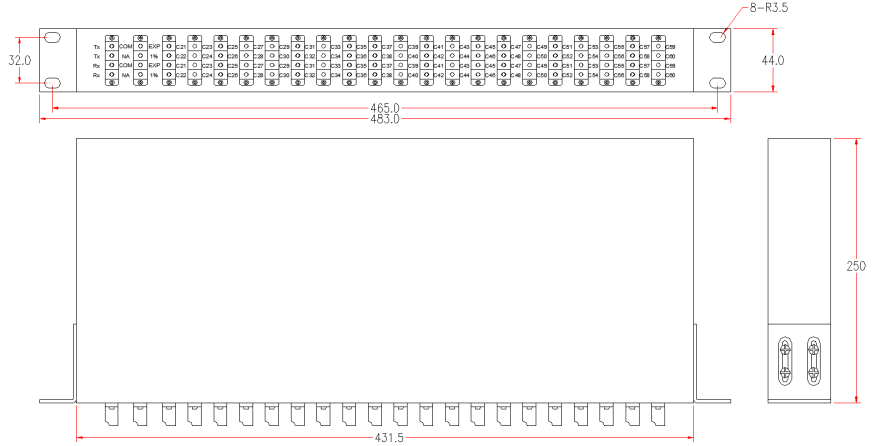

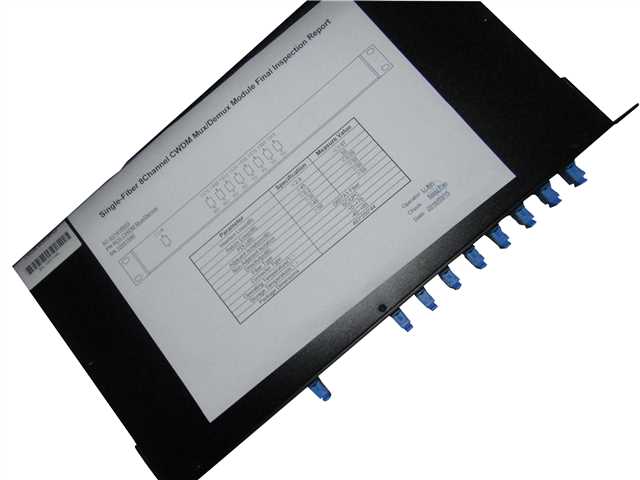

19Inch Rack WDM Mux/Demux optional Mon port ,1310 Exp port or UPG port |
Features
1. CWDM 20nm ITU Channel Spacing ,1470nm-1610nm , up to 18ch channels over Single or Duplex fiber
2. DWDM 100GHz or 50GHz ITU Channel Spacing,C15-C62 & H15-H62 , X channels over Single or Duplex fiber
3. 100Mb~10Gb per channel
4. ABS cassette, LGX or 19 inch Rack Fixed
5. Low Insertion Loss
6. Wide Pass Band
7. High Channel Isolation
8. High Stability and Reliability
9. Expansion Port optional:Express Port, Upgrade Port, Monitor Port
Application
1. Channel Add/Drop
2. CWDM Network
3. Fiber Optical Amplifier
4. CATV Fiber-optic System
CWDM Specification Example
Parameter | Unit | Specification |
Operating Wavelength Range | nm | 1260~ 1620 |
Center Wavelength | nm | Customer specified 8 wavelengths |
Channel Spacing | nm | 20 |
Pass band | nm | CW±6.5 |
Insertion Loss | dB | ≤2.5 |
Adjacent Channel Isolation | dB | ≥30 |
Non-Adjacent Isolation | dB | ≥45 |
Reflection Channel Isolation | dB | ≥15 |
PDL | dB | ≤0.2 |
Directivity | dB | ≥50 |
Return Loss | dB | ≥45 |
PMD | ps | ≤0.1 |
Optical Power | mW | ≤500 |
Operating Temperature | ℃ | -10 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Fiber Type | G657A1 Fiber | |
Connector Type | LC/UPC or others | |
Communication Type | Single or Dual Fiber | |
Optional ports | 1310 Express port; Upgrade port; |
DWDM Specification Example
Parameter | Unit | Specification |
Operating Wavelength Range | nm | 1500 ~ 1600 |
Channel Number | - | X+UPG |
Center Wavelength | nm | Customer specified X wavelengths ,such as C53 C54 C55 C56 C57 C58 C59 C60 (X=8) etc |
Channel Spacing | GHz | 100 |
Channel Passband(@-0.5dB) | nm | ≥0.11 |
Insertion Loss | dB | ≤3.2 |
Adjacent Channel Isolation | dB | ≥30 |
Non-Adjacent Isolation | dB | ≥40 |
UPG Port Isolation | dB | ≥12 |
PDL | dB | ≤0.2 |
Directivity | dB | ≥50 |
Return Loss | dB | ≥45 |
PMD | ps | ≤0.20 |
Operating Temperature | ℃ | -10 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Fiber Type | G657A1 Fiber | |
Connector Type | LC/UPC or others | |
Communication Type | Single or Dual Fiber |
