Filter Wavelength Division Multiplexer

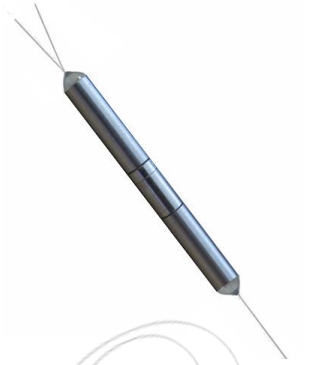

Filter Wavelength Division MultiplexerProduct Impression

  1. Manufacturer: Sopto
  2. Latest Price:Contact online customer service NOW!
  3. Polarization Dependent Loss: ≤0.1dB
  4. Polarization Mode Dispersion: ≤0.1ps
  5. Return Loss: ≥50dB
  6. Directivity: ≥50dB
  7. Maximum Power Handing: 500mW
  8. Operating Temperature: -40 to +85℃
  9. Storage Temperature: -40 to +85℃
  10. Fiber Type: Corning SMF-28e
  11. Package Dimensions: ø3.0X25.0mm
  12. Browse the Evaluation: Click here to browse



Note: Part in order to prevail in kind. Please contact customer service before buying.



Performance Feature

  • Compact size
  • Low insertion loss
  • Excellent temperature stability
  • High Isolation
  • Epoxy-free Optical Path



Applications

  • CATV
  • Fiberoptic Instruments
  • WDM system
  • System Monitoring
  • Laboratory R&D



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



Sopto Filter Wavelength Division Multiplexer Description



Sopto now offers a mini size FWDM, Sopto’s mini FWDM is based on thin film filter technology. Optical performance is excellent with low insertion loss and excellent temperature stability.

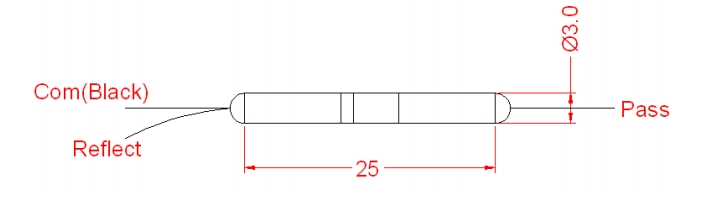

Package Dimension

Filter Wavelength Division Multiplexer Package Dimension

Filter Wavelength Division Multiplexer Package Dimension



Performance Specification



Parameter

Unit

FWDM-A

FWAM-B

FWDM-C

Pass Channel Wavelength Range

nm

1480~1500

1540~1560

1260~1360

1480~1500

Reflection Channel Wavelength Range

nm

1260~1360

1540~1560

1260~1360

1480~1500

1540~1560

Insertion Loss Without Connector

Pass Channel

dB

≤0.65

 Reflect Channel

≤0.45

Isolation



Pass Channel



dB

≥30

Reflect Channel

≥15

Polarization Dependent Loss

dB

≤0.1

Polarization Mode Dispersion

ps

≤0.1

Return Loss

dB

≥50

Directivity

dB

≥50

Maximum Power Handing

mW

500

Operating Temperature

-40 to +85

Storage Temperature

-40 to +85

Fiber Type

Coning SMF-28e

Package Dimensions

mm

ø3.0X25.0
