Tap Photo Detector

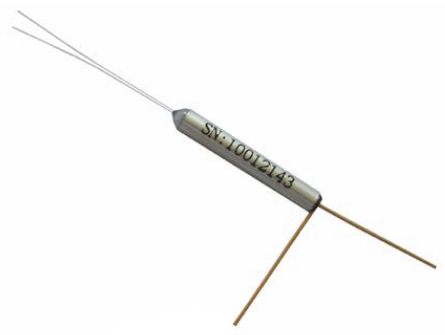

Tap Photo DetectorProduct Impression

  1. Manufacturer: Sopto
  2. Latest Price:Contact online customer service NOW!
  3. Return Loss: ≥45dB
  4. PDL: ≤0.1dB
  5. PMD: ≤0.1ps
  6. Dark Current: ≤1.0 (@25℃, 5V bias) nA
  7. Reverse Voltage: ≤30V
  8. Forward Current: ≤10mA
  9. Operating Temperature: -10 to +70℃
  10. Storage Temperature: -40 to +85℃
  11. Fiber Type: Corning SMF-28e
  12. Browse the Evaluation: Click here to browse



Note: Part in order to prevail in kind. Please contact customer service before buying.



Performance Feature

  • Performance Feature
  • Compact Design
  • High Responsively
  • Low Insertion Loss and PDL
  • Low Dark Current
  • RoHS Compliant

Applications

  • Power Control Monitoring For Amplifier
  • Optical Add/Drop Multiplexing
  • DWDM & CWDM Systems
  • Optical Monitoring For Switching System





Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



Sopto Tap Photo Detector Description

Sopto's Tap Photo Detector (TAPD) is a small size optical power monitor that integrates a thin -film tap with photo detector. It applies to channel power monitoring in DWDM system, in-line optical network switching protection monitoring (OLP), re-configurable optical add/drop multiplexer (OADM), and gain/attenuation monitoring in EDFA, etc. Sopto can provide customized designs to meet specialized feature applications.



Package Dimension

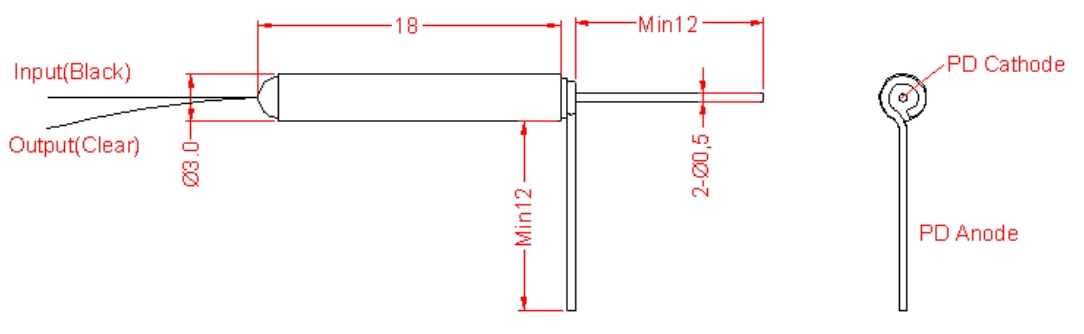

Tap Photo Detector Package Dimension

Sopto Tap Photo Detector Package Dimension

Performance Specification



Parameter

Unit

Specification

Wavelength Range

nm

1510~1610

Tap Ratio

%

1

2

5

10

Max Insertion Los

Without Connector

dB

0.5

0.5

0.6

0.9

Responsivity

mA/W

7~12

14~24

35~60

70~120

Max Input Power

dBm

25

22

18

15

Return Loss

dB

≥45

PDL

dB

≤0.1

PMD

ps

≤0.1

Dark Current

nA

≤1.0 (@25℃, 5V bias)

Reverse Voltage

V

≤30

Forward Current

mA

≤10

Capacitance

pF

≤6 (VR=-5V, f=1MHz)

-3dBm Bandwidth

GHz

≥1.5 (RL=50Ω)

Operating Temperature

-10 to +70

Storage Temperature

-40 to +85

Fiber Type

Corning SMF-28e

Lead Soldering Temperature

260 (<10s)

Package Dimensions

mm

Ø3.0X18 (Bare Fiber)

Ø3.0X22(900 μm Loose Tube)
