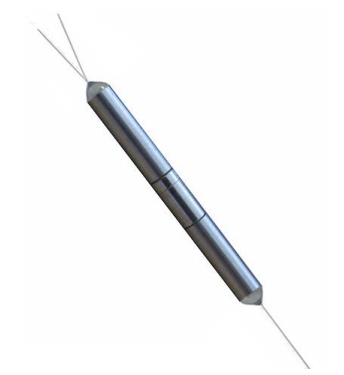

Filter Based Multi-Mode Splitter

Product Impression:

  1. Manufacturer: Sopto
  2. Latest Price: Contact online customer service NOW!
  3. Wavelength: 850nm or 1310nm or others
  4. Return Loss: ≥30dB
  5. PDL: ≤0.1dB
  6. Directivity: ≥38dB
  7. Wavelength Thermal Stability: ≤0.003nm/ ℃
  8. Power Handling: 500mW
  9. Operating Temperature: -10 to +70℃
  10. Storage Temperature: -40 to +85℃
  11. Fiber Type: OM3 or OM4 Multi-Mode Fiber
  12. Browse the Evaluation: Click here to browse



Note: Part in order to prevail in kind. Please contact customer service before buying.



Performance Feature:

  • Compact Design
  • Stable split ratio
  • Low excess loss
  • High stability and reliability



Applications:

  • Multi-mode Fiber System
  • LAN
  • Testing Instruments



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



Sopto Filter Based Multi- Mode Splitter Description



Sopto's multi -mode splitter utilizes thin film filtering technology. It provide the stable split ratio for any light resources and low excess loss, it has more temperature stability and reliability than fused fiber coupler.  It is mini size, and we can customize the split ratio.

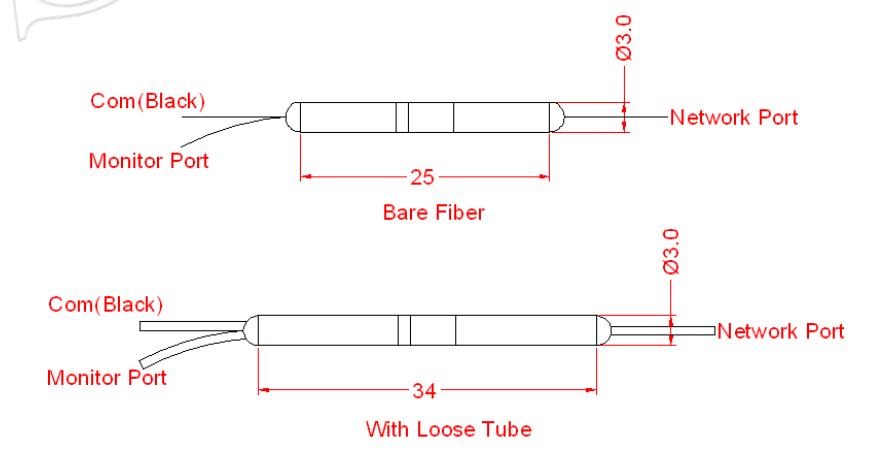

Packaging Dimension:



Filter Based Multi-Mode Splitter Package Dimension

Sopto Filter Based Multi-Mode Splitter Package Dimension



Performance Specification



Parameter

Unit

Specification

Wavelength

nm

850 or 1310, or others on request

Tap Ratio

%

50/50

30/70

10/90

5/99

Max Insertion Loss

Without Connector

dB

3.9/3.9

6.2/2.1

11.3/1.1

14.5/0.9

Return Loss

dB

≥30

PDL

dB

≤0.1

Directivity

dB

≥38

Wavelength Thermal Stability

nm/℃

≤0.003

Insertion Loss Thermal Stability

dB/≤

≤0.003

Power Handing

nW

≤500

Operating Temperature

-10 to +70

Storage Temperature

-40 to +85

Fiber Type

OM3 or OM4 Multi-mode Fiber

Package Dimensions

mm

Ø3.0X25(Bare Fiber)

Ø3.0X34(Loose Tube)
