Direct Attach Cable DAC

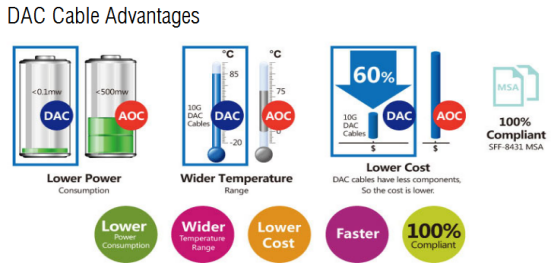

DACs are widely chosen by data centers for connecting servers to the Top Of the Rack(TOR) switch as they are passive, consume zero power, have the lowest latency and cost-effective. DAC is the ideal option for data centers, super computers and other circumstances similar. DAC, with the advantages of lower power consumption, lower cost and wider temperature, is the first alternative without question to replace optical transceiver for short distance.

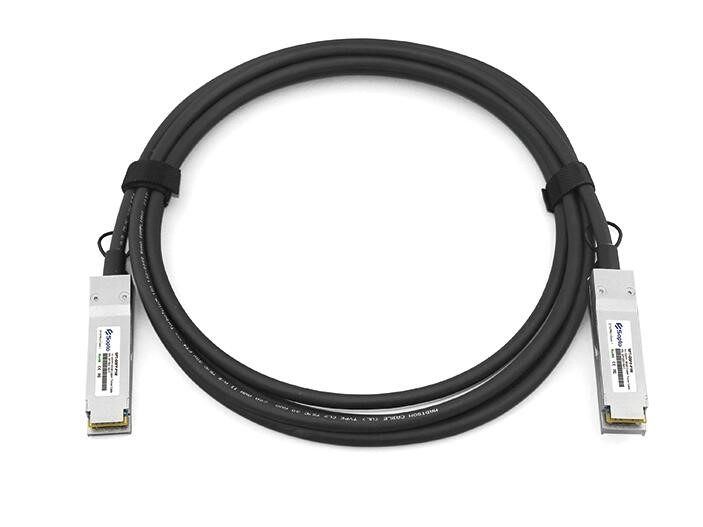

SOPTO supplies various kinds of high speed interconnect DAC cable assemblies including 10G SFP+ Cables, 40G QSFP+ Cables, and 100G QSF28 Cables and so on. All of our direct attach cables can meet the ever-growing need to cost-effectively deliver more bandwidth and can be customized to meet different requirements. length: from 0.5m to 10m. AWG:24,26,28,30 optional. We accept the customization.
SOPTO Direct Attach Cable (DAC) Type
 |  |
 |  |
Part No. | Description |
SPH-SFP-Cx | 1G SFP to SFP Copper Passive Cable x Meters x=0.5,1,2,3...12 AWG30/28/24 |

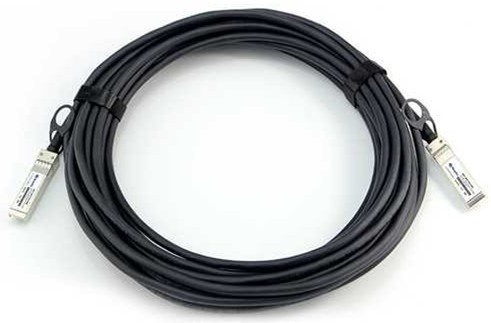

SPH-SFP+Cx | 10G SFP+ to SFP+ Copper Passive Cable x Meters x=0.5,1,2,3 AWG30 ;x=0.5,1,2,3...10 AWG28/24 |
SPH-SFP+ACx | 10G SFP+ to SFP+ Copper Active Cable x Meters x=1,2,3 AWG30;x=1,2,3...10 AWG28; x=1,2,3...15 AWG24 |
SPH-XFP-Cx | 10G XFP to XFP Passive Copper Cable x Meters x=1 AWG30; x=1,2,3 AWG24 |
SPH-XFP-ACx | 10G XFP to XFP Active Copper Cable x Meters x=1,2,3...10 |
SPH-XFP/SFP+Cx | 10G XFP to SFP+ Passive Copper Cable x Meters x=1 AWG30; x=1,2,3 AWG24 |
SPH-XFP/SFP+ACx | 10G XFP to SFP+ Active Copper Cable x Meters x=1,2,3...10 |
SPH-QSFP-Cx | 40G QSFP+ to QSFP+ QDR Infiniband passive cable x Meters x=1,2,3 AWG30; x=4,5 AWG28; x=1,2,3...7 AWG24 |
SPH-QSFP-ACx | 40G QSFP+ to QSFP+ QDR Active copper cable x Meters x=1,2,3...10 |

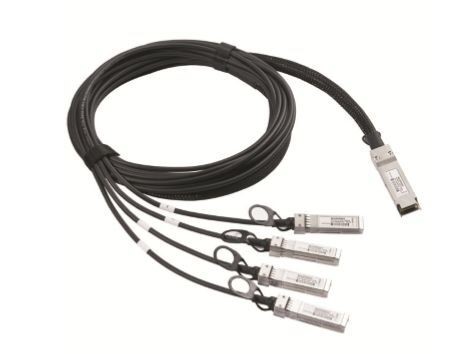

SPH-Q/4SFP-Cx | 40G QSFP+ to 4*SFP+ QDR Infiniband passive cable x=1,2,3 AWG30; x=4,5 AWG28; x=7 AWG24 |
Note:
Default operating case temperature is 0 ~ 70℃. If you need -40 ~85℃ products, add “T” after Part Number .
