Fiber Optic Transceiver Module

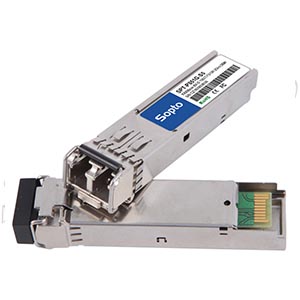

1531980247572859.jpgSopto provides hundreds of QSFP28/ CFP4/ CFP2/ CFP/ QSFP+/ SFP28/ SFP+/ XFP/ X2/ Xenpak/ CSFP/ GBIC/ GBIC Copper/ SFP/ SFP Copper/ SFF/ 1 x 9 standardized transceivers Modules and customized transceivers Modules for data-rate of 100G/ 40G/ 10G/ 8G/ 6G/ 4G/ 3G Video/ PON / 2.5G/ 2.125G/ 1.25G/ 622M/ 155M/100Mbps network. Types of Dual fiber/ Single fiber (BIDI)/ CWDM/ DWDM / PON/ PHY(SGMII) and wavelengths of 850nm/ 1310nm/ 1490nm/ 1550nm/ CWDM 1270 - 1610nm/ DWDM wavelengths on 50/100GHz grid and transmitting distance from 30m up to 150km can be selected. Digital Diagnostic Function are also available. Operating Case Temperature: Standard: 0~70°C; Extended: -40~85°C; Industrial: -40~85°C


All optical transceivers Modules are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.


If you want to know more about the exact information of the specified transceiver, please contact us.


ProductsDescriptions
10G SFP+
8GFC and 10Gigabit/s, 8.5G data rates
Operating temperature range 0°C to 70°C
850nm 1310nm 1550nm wavelength
Up to 80km distance
Operating temperature range 0°C to 70°C
10G XFP
850nm/1310nm/1550nm laser diode transmitter
XFP MSA package with duplex LC connector
Support 9.95Gb/s to 11.3Gb/s (data rate: 10 gigabit)
Operating temperature range 0°C to 70°C
40G QSFP+
For high speed application, such as 40Gbps
850nm 1271nm 1291nm 1331nm wavelength
Up to 10km distance
QSFP+ MSA, SFF-8436 compatible
GEPON Transceiver
1310nm/ 1490nm/ 1550nm continuous-mode transmitter
1490nm/ 1310nm/ 1550nm burst-mode receiver
Distance 1000BASE-PX20
Copper RJ45 SFP
Up to 1.25Gbps data links
SFP form with compact RJ-45 connector
100m transmission over unshielded twisted pair (UTP) Cat5 Cable
+3.3/5V single power supply
Operating case temperature: 0℃ to +70℃
CWDM SFP
Transmitter Center Wavelength: 1270nm~ 1610nm.
Receiver PIN or APD
Data Rate up to 4Gbps
Operating Temperature 0℃~+70 ℃
Distance up to 80km
DWDM SFP
C-band and L-band ITU-T grid wavelengths
Up to 2.667Gb/s, 9.95Gbs to 11.3Gbps
-5ºC to 70ºC Operating Case Temperature
OC48/STM-16 Long Reach 80km (1600 ps/nm),120km (2400 ps/nm) Versions
WDM SFP
Data rate: 155M/622M/1.25G/2.5G/4G
Wavelength:1310nm/1550nm/1490nm
PIN/APD photodiode receiver
SFP MSA package BIDI SC/ LC,
+3.3V single power supply
Distance from LX 10km to ZX 120km
Dual SFP
Data Rate: 155M/622M/1.25G/2.5G/4G
Wavelength:850nm/1310nm/1550nm
PIN/APD photodiode receiver
SFP MSA package duplex LC
With or without DDM function
Distance from SX 0.5km to ZX 120km
Video SFP
WDM/CWDM
Data rates from 50Mbps to 2.97Gbps
Distance up to 40km with DDM function
SMPTE 297-2006 compatible
Dual fiber Video SFP
Single / Dual transmitter video SFP
WDM / CWDM video SFP modules
GPON SFP Transceiver
Access Networks
Fiber to the Home, Curb, Office (FTTx)
Point to Multipoint Service (P2MP)
ITU-T G.984.2
ITU-T G.984.5
FSAN Class B+
WDM SFP+
9.95Gb/s to 10.3Gb/s bit rates (10 Gigabit)
LC connector
+3.3V power supply
Up to 80km distance
Single Fiber 1270/1310nm DFB laser Transmitter and 1300/1270nm Receiver
CWDM SFP+
8.5G/10G Fiber- Channel applications
1260nm~1620nm wavelength
Up to 80km distance
DWDM SFP+
2G/4G/ 8G/10G Fiber Channel applications.
1260nm~1620nm wavelength
40km/80km distance
Single 3.3V power supply
-5ºC to 70ºC Operating Case Temperature

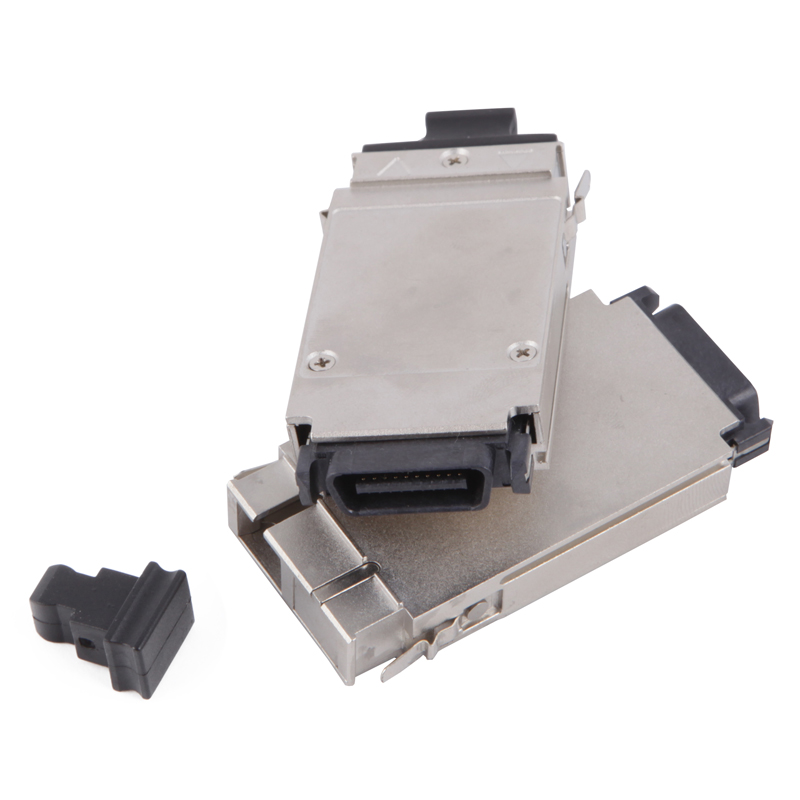

GBIC
Gigabit Ethernet 1000Base-SX/LX/XD/ZX at 1.25Gb/s Optional
Wavelength: 850nm/1310nm/1550nm
Single +3.3V or +5V Power Supply
Hot-Pluggable Duplex SC
Up to 80km distance
WDM GBIC
Data-rate 1.25Gbps/1.0625Gbps
20km to 80km transmission distance
Duplex SC optical interface
Standard: 0 to +70℃
1310nm/1490nm/1550nm wavelength
GBIC Copper
Up to 1.25Gbps data links
GBIC form with compact RJ-45 connector
Support intelligent auto-negotiation 1000BASE-T
+3.3/5V single power supply
100m transmission over unshielded twisted pair (UTP) Cat5 Cable
Operating case temperature: 0℃ to +70℃
WDM XFP
9.95Gb/s to 10.3Gb/s bit rates (10 Gigabit)
Hot-pluggable XFP footprint
Maximum link length of 10km with SMF
Single Fiber 1270/1310nm DFB laser Transmitter and 1300/1270nm Receiver
XFP MSA package with LC connector
10G XFP
850nm/1310nm/1550nm laser diode transmitter
XFP MSA package with duplex LC connector
Support 9.95Gb/s to 11.3Gb/s (data rate: 10 gigabit)
Operating temperature range 0°C to 70°C
CWDM XFP
Supports 9.95Gb/s to 11.1Gb/s bit rates
Maximum link length of 10km with SMF
Temperature range 0°C to 70°C
4-Wavelengths Uncooled CWDM DFB laser from1270nm to 1330nm, with Step 20nm

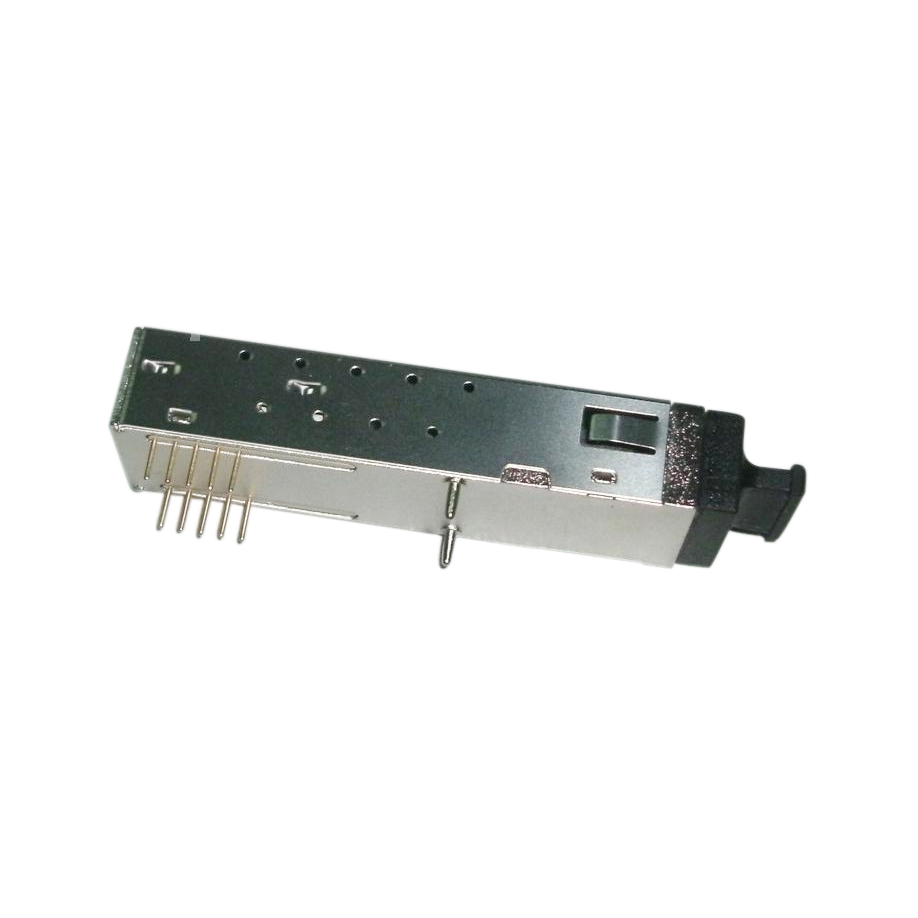

WDM SFF
SFF  模块.jpg
2X5 Small Form Factor SFF Package
Bi-directional optical data links
Fully Compliance With IEEE802.3ah
+3.3V Power Supply
20km Reach
10G XENPAK
Dual fiber,CWDM,DWDM
Support of IEEE 802.3ae 10G gigabit
XENPAK MSA package with duplex SC connector
Operating temperature range 0°C to 70°C
10G X2
Dual fiber, CWDM,DWDM
Compatible with X2 MSA Rev3.0
Support of IEEE 802.3ae 10GBASE
X2 MSA package with duplex SC connector
With Digital Diagnostic Monitor Interface
Operating temperature range 0°C to 70°C
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
CSFP Transceiver
1.25G data rate
20km distance
1310nm/1490nm or 1490nm/1310nm

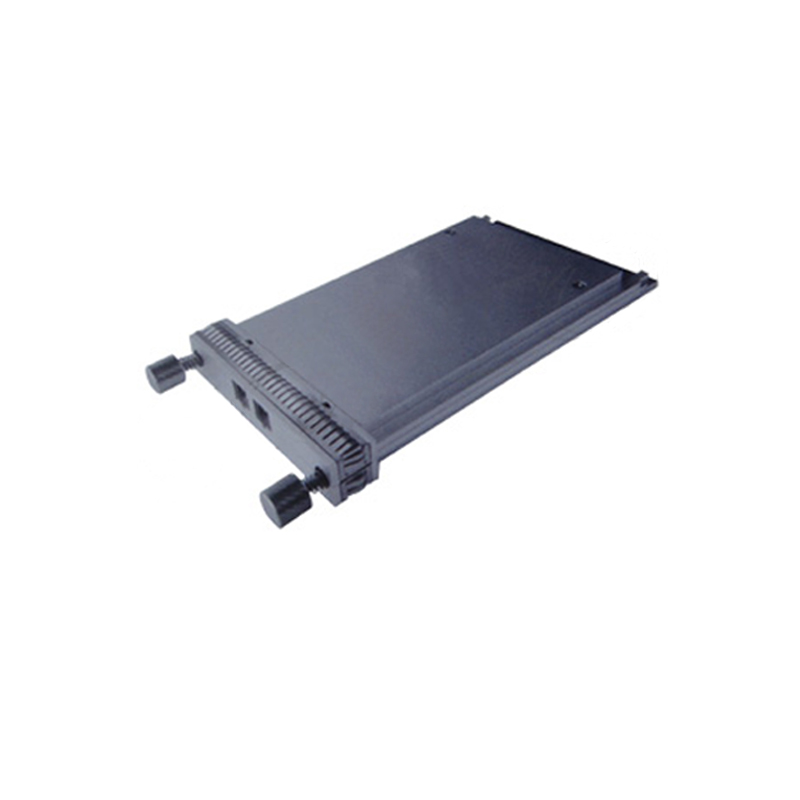

CFP Transceiver
Supports 41.2Gbps aggregate bit rates
•CWDM DFB laser and PIN receiver
•Up to 10km transmission on SMF
•Single 3.3V Power Supply and Power dissipation<8W
•Hot-Pluggable CFP Footprint Duplex LC Connector Interface
•Class 1 FDA and IEC60825-1 Laser Safety Compliant
•Operating Case Temperature Standard: 0C~+70C
•Compliant with CFP MSA Specification
SGMII SFP
Data Rate 125Mbps; Distance 2km
Wavelength 850nm,1310nm
Operating Temperature 0℃~+70 ℃
Meet SFP MSA and SFF-8472.




Note

Fiber Optical transceiver Modules refers to a typically hot-pluggable optical module used in high-bandwidth data communications applications. Fiber optical transceivers typically have an electrical interface on the side that connects to the inside of the system and an optical interface on the side that connects to the outside world through a fiber optic cable. The form factor and electrical interface are often specified by an interested group using a multi-source agreement (MSA). Fiber optical transceivers can either plug into a front panel socket or an on-board socket. Many different forms of optical modulation and multiplexing have been employed in optical transceivers.

Fiber optical transceivers Modules are widely Used in Local Area Networks (LANs), Wide Area Networks (WANs), Storage Area Networks (SANs), Metropolitan Area Networks (MANs) and Access Networks (ANs).

Multiple standards have used Fiber optical transceivers Modules. Such as 100Mbps to 100Gbps Ethernet, InfiniBand , Fibre Channel , SDH /SONET system etc
