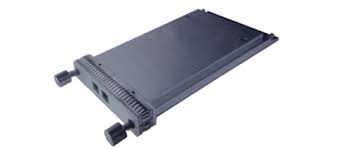

CFP Transceiver

Product Impression:

1. Manufacturer: SOPTO

2. Color: Sliver

3. Material: Metal

4. Weight: 0.02kg

5. Packing Quantity: 200pcs, 400pcs, 600pcs

6. Package Type: CFP

7. Data Rate: 40G/80G/100G

8. Wavelength: 850nm/1310nm/1550nm

9. Fiber Types:  SMF

10. Fiber Connector Type: Duplex SC or LC Receptacle

11. Transmission Mode: Half duplex or full duplex

12. Transmission Distance: SMF 10km

13. Laser Type: CWDM DFB laser and PIN receiver

14. Extinction Ratio: >3.5dB

15. Storage Temperature: -40~85°C

16. Operating Case Temperature: Standard: 0~70°C; Industrial: -40~85°C

17. Operating Humidity: 0%~90% RH no condensing

18. Storage Humidity: 5%~90% RH no condensing

19. Saturated Optical Power: -3dBm

20. Average Output Power: -2.5~+2.9Bm

21. Receiver Sensitivity: <-17dBm

22. Supply Current: 351~386mA

23. Power Supply: +3.3V single power supply

24. Power Consumption: <8W

25. DDM Function: With

26. Number of Times of Hot-Pluggable: >200

27. Compatible Brands: Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

28. Application: 40GBASE-LR4 Ethernet

Performance Feature:

1. Supports 41.2Gbps aggregate bit rates

2. CWDM DFB laser and PIN receiver

3. Up to 10km transmission on SMF

4. Single 3.3V Power Supply and Power dissipation<8W

5. Hot-Pluggable CFP Footprint Duplex LC Connector Interface

6. Class 1 FDA and IEC60825-1 Laser Safety Compliant

7. Operating Case Temperature Standard: 0C~+70C

8. Compliant with CFP MSA Specification

9. MDIO interface with integrated Digital Diagnostic Monitoring

10. XLAUI electrical interface

11. TX input and RX output CDR retiming

12. RoHS 6 compliant lead free

CFP Transceiver Module Introduction

CFP is a hot-pluggable transceiver that supports a wide range of 40 and 100 Gb/s applications such as 40G and 100G Ethernet, OC-768/STM-256, OTU3, and OTU4. Different versions of CFP modules can support various link distances over either multimode or single mode fiber optics. The CFP module includes numerous innovative features like advanced thermal management, EMI management and enhanced signal integrity design, as well as an MDIO-based management interface.

SOPTO 40G CFP transceivers are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 40GBASE-LR42. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.
