Outdoor Optical Cable

Part No.Description

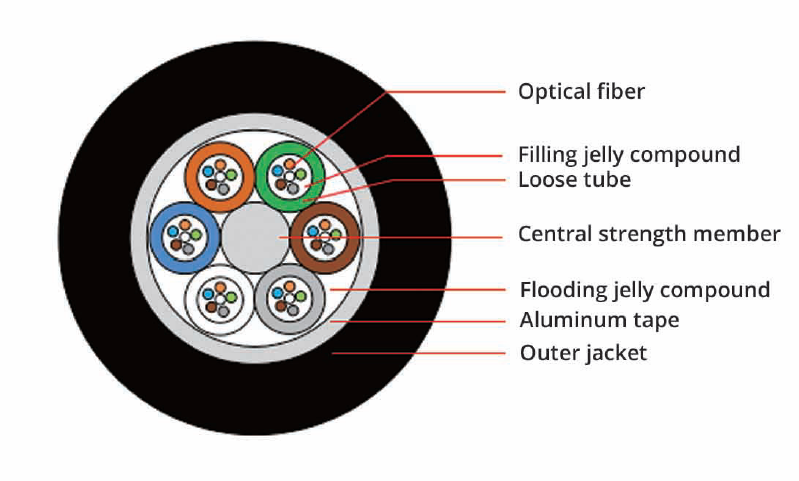

GYTAGYTA (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)

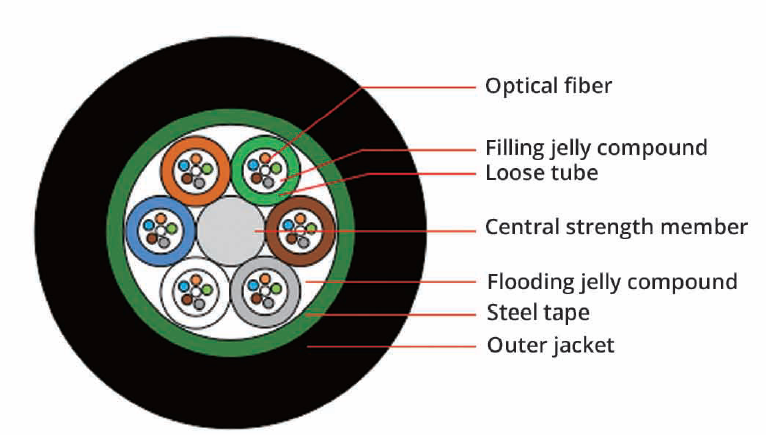

GYTSGYTS (Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
GYFTYGYFTY (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE jacket)
GYFTAGYFTA (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
GYFTS GYFTS (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)

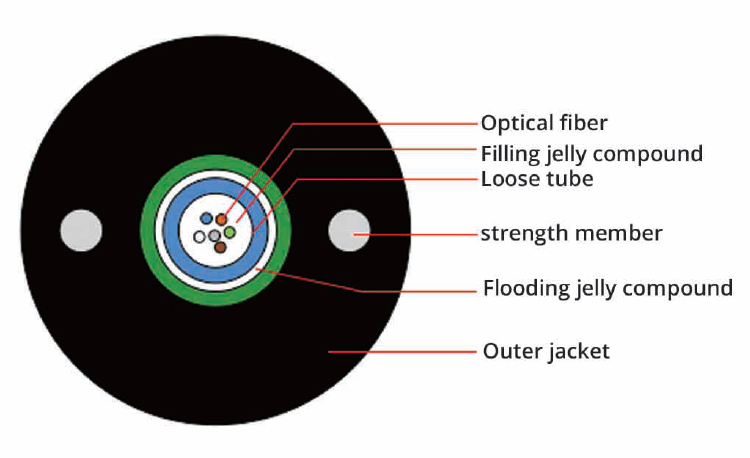

GYXTWGYXTW (Structure with central tube, Metal strength member, Flooding jelly compound, PE jacket with steel wire)
GYXS GYXS (Structure with central tube, Steel wire armoring, Steel-polyethylene adhesive jacket)
GYFXYGYFXY (Structure with central tube, Non-metal strength member, PE jacket)
GYTY53GYTY53 (Loose tube stranding, Metal strength member, Flooding jelly compound, PE inner jacket, Steel-polyethylene adhesive outer jacket)

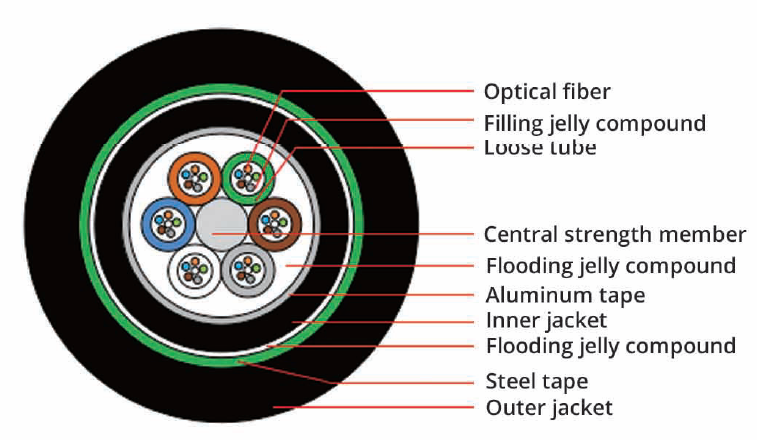

GYTA53GYTA53 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket)
GYFTY53GYFTY53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Steel-polyethylene adhesive outer jacket)
GYFTA53GYFTA53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket)
GYTA33GYTA33 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Single smaller round steel wire armoring, PE outer jacket)
GYTA333GYTA333 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, double smaller round steel wire armoring, PE outer jacket)
GYFYGYFY (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Glass yarn strength member, PE outer jacket)
GYFTY73GYFTY73 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Glass yarn strength member, PE outer jacket)

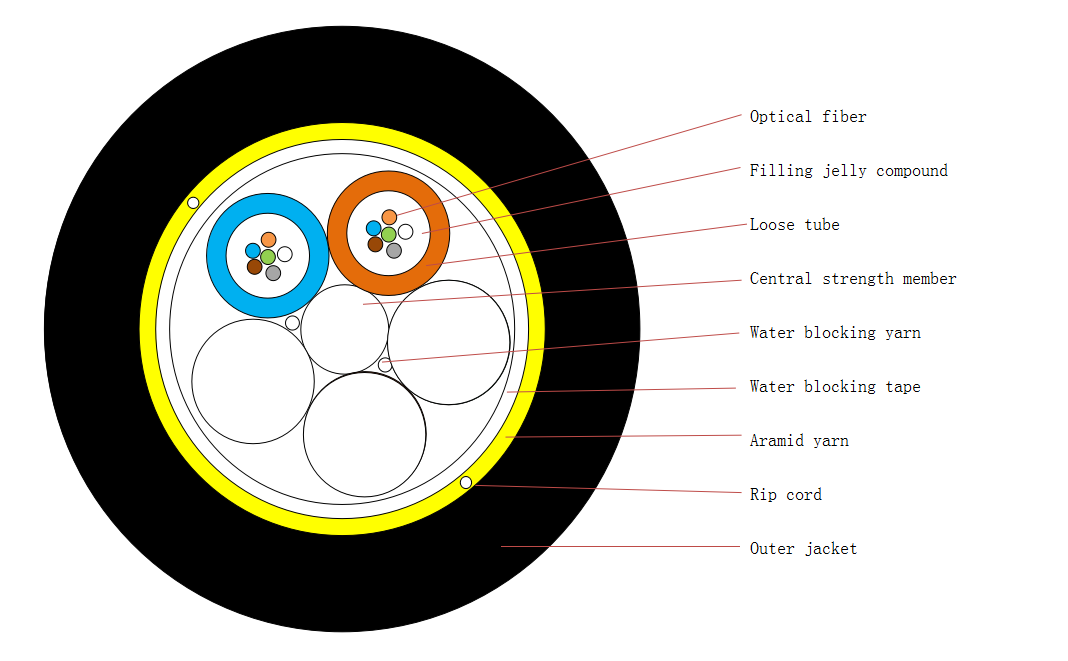

ADSS SingleSingle protector ADSS (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket)

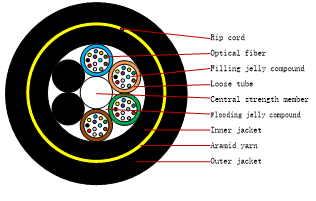

ADSS DoubleDouble protector ADSS (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Aramid yarn strength member, PE outer jacket)
GYDTAGYDTA (Optical fiber ribbon, Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
GYDTSGYDTS (Optical fiber ribbon, Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
GYDXTWGYDXTW (Optical fiber ribbon, Central tube structure, Flooding jelly compound, Steel-polyethylene adhesive jacket)
GYTC8YGYTC8Y (Loose tube stranding, Metal strength member, Flooding jelly compound, PE jacket, figure‘8’ )

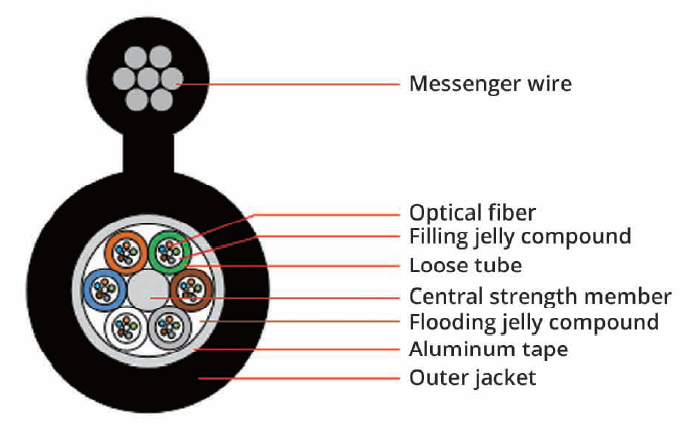

GYTC8AGYTC8A (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket, figure‘8’ )
GYTC8SGYTC8S (Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket, figure‘8’ )
GYFC8YGYFC8Y (Loose tube stranding, Non-metal strength member, Half dry water-blocking, PE jacket, figure‘8’ )
GYFC8YGYFC8Y (Loose tube stranding, Non-metal strength member, Half dry water-blocking, PE jacket, figure‘8’ )
GYXC8YGYXC8Y (Central tube structure, PE jacket, figure‘8’ )

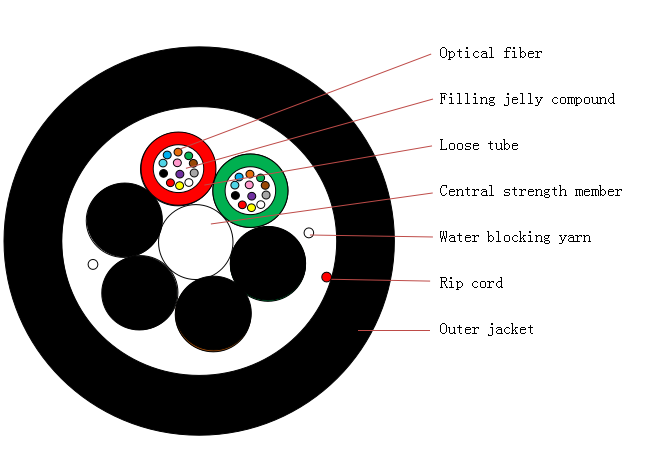

GCYFYGCYFY(Loose tube stranding, Tiny tube, Dry water-blocking , PE jacket)
GDTAGDTA(Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
GDTSGDTS(Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)


Product Impression:

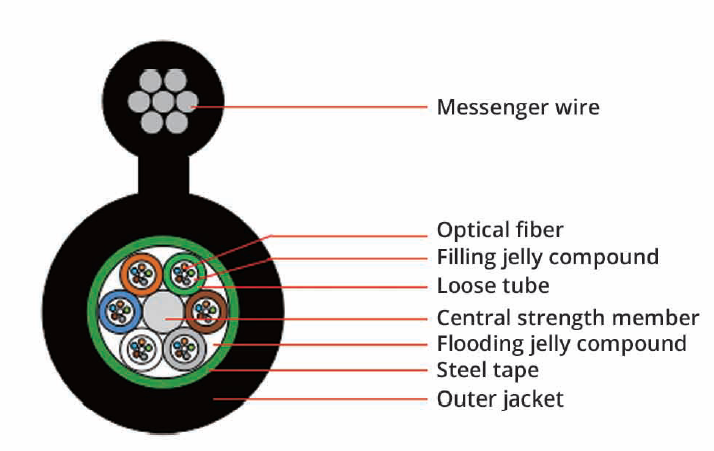

  Manufacturer: SOPTO                GYTC8S.png

  1. Cable Type: GYTC8S, or others

  2. Cable Specification: 3.0×2.0

  3. Cores Number: 1, 2, 4, 6, 8 cores fiber.

  4. Central Strength Member: Steel or FRP.

  5. Fiber Module Mode: SM or MM.

  6. Fiber Color: Nature, Black, Grey, Yellow, Purple…

  7. Fiber Type: Stranded loose tube cable with steel tape

  8. Sheath Color: Nature

  9. Sheath Material: LSZH/PVC/OFNR/OFNP/Plenum

  10. Cable Dimension: 3.0 x 2.0mm

  11. Cable Weight: 10.0Kg/km

  12. Min. Bending Radius: 10mm (Static) 25mm (Dynamic)

  13. Attenuation: 0.4 dB/km at 1310nm, 0.3dB/km at 1550nm

  14. Short Term Tensile: 200N

  15. Crush Resistance: 2200 N/100mm

  16. Operation Temperature: -20~+60°C




Performance Feature:

  1. Good mechanical and environmental characteristics

  2. Flame retardant characteristics meet the requirements of relevant standards

  3. The mechanical characteristics of jacket meet the requirements of relevant standards

  4. Soft, flexible, easy to lay and splice, and with big capacity data transmission

  5. Meet various requirements of market and clients

  6. Stranded Loose Tube Light-armored cable (GYTS)

  7. Loose tube style, Gel-filled, layer-stranded

  8. Fiber cable with metallic/non-metallic central strength member of steel wire/FRP

  9. Different cores are available

  10. GYXTW, GYTA, GYFTY, GYTY53, GYTA53, GYSTC8S are available



Note: Part in order to prevail in kind. Please contact customer service before buying.



Extra Important Product's Information

  1. Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;

  2. Jacket Material: Environmental flame retardant polyvinylchloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), or other contracted material;

  3. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

  4. Cable Dimension: The nominal cable dimension or other contracted dimension;

  5. Delivery Length: 1km or 2km, or other contracted length;

  6. Other Requirements: Other contracted special requests.



Outdoor Optical Cable Description

Outdoor fiber optic cables are made to protect the optical fiber to operate safely in complicated outdoor environment. Most outdoor fiber cables are loose buffer design, with the strengthen member in the middle of the whole cable, the loose tubes surround the central strength member. Inside the loose tube there is waterproof gel filled, whole cable materials used and gels inside cable between the different components (not only inside loose tube) will help make the whole cable resist of water. Outdoor fiber cables are used for aerial and duct applications, GYTA53 and GYTY53 are used for direct buried, GYTC8S fiber optic cable is used mainly for aerial.



SOPTO supply various kinds outdoor use fiber cables including both armored type and not armored type; these cables are competitive on prices and fast delivery. Typical outdoor fiber optic cable types are GYTS, GYTA, GYXTW, GYTA53, GYTY53 and GYTC8S, GYTS, GYTA and GYXTW.
