FTTH Drop Cable

Part No.Description

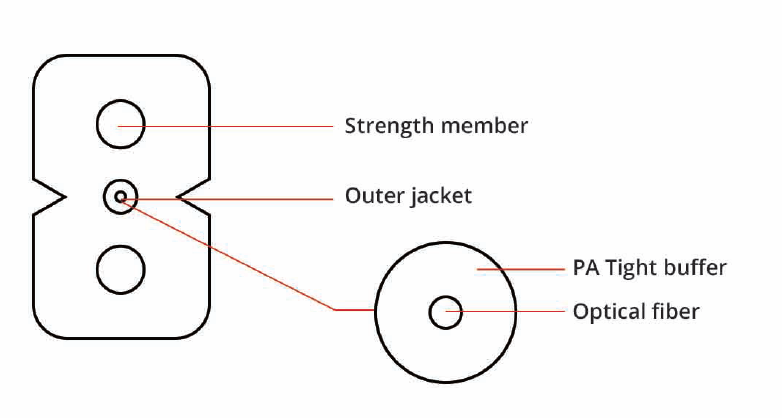

GJXH, GJXDH, GJXFH, GJXFDHGJXH (Metal strength member, LSZH jacket, Non Self-Supporting) GJXDH (Optical fiber ribbon, Metal strength member, LSZH jacket, Non Self-Supporting) GJXFH (Non-metal strength member, LSZH jacket, Non Self-Supporting) GJXFDH (Optical fiber ribbon, Non-m

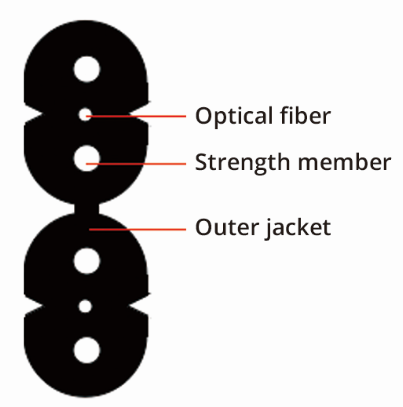

GJXH, GJXFHDouble core independent GJXH (Metal strength member, LSZH jacket, Non Self-Supporting) Double core independent GJXFH (Non-metal strength member, LSZH jacket, Non Self-Supporting)
GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCHGJYXCH (Metal strength member, LSZH jacket, Self-Supporting) GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting) GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting) GJYXFDCH (Optical fiber ribbon, Non-metal

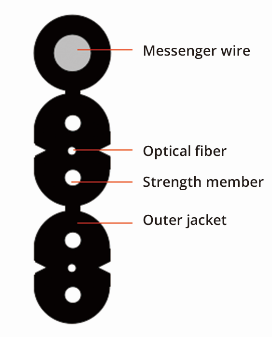

GJYXCH, GJYXFCHDouble core independent GJYXCH (Metal strength member, LSZH jacket, Non Self-Supporting) Double core independent GJYXFCH (Non-metal strength member, LSZH jacket, Non Self-Supporting)

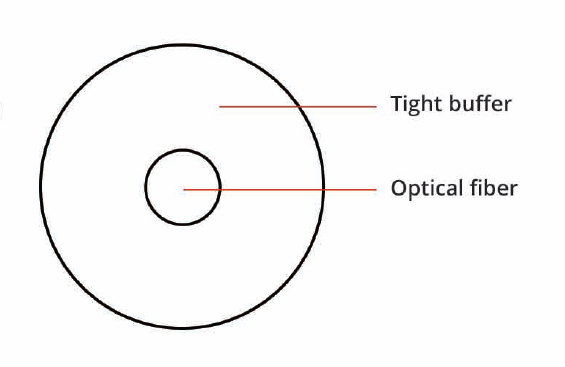

GJFJH, GJYFJCHGJFJH (Tight buffer fiber structure, Aramid yarn strength member, LSZH outer jacket) GJYFJCH (Tight buffer fiber structure, Aramid yarn strength member, LSZH outer jacket, Self-Supporting)

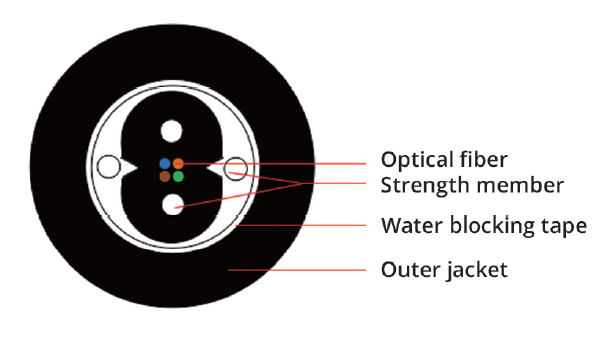

GJYXH03, GJYXDH03, GJYXFH03, GJYXFDH03GJYXH03 (Metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket) GJYXFH03 (Non-metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket)
GYBJAGYBJA(Metal strength member, LSZH inter jacket, Water blocking tape, Outer jacket)

FTTH Drop Cable






Applications:

The kind of cable is suitable for fiber to the home.



Characteristics:



Bow-Type Drop Cable

Lighter and small diameter, flame retardant , separated easily and excellent softness;

The glass fiber bar, aramid fiber rods and small wire are as strength member;

The steel wire and stranding steel wire have excellent performance of tensile strength as the Self-Supporting bow-type drop cable’s  messenger wire ;

Excellent flame retardant performance.



Double Core Side By Side Bow-Type Drop Cable

Two Bow-type cables can be installed at the same time.

Each typical cable can be separately terminated and doesn’t need to be separated.



Rotundity Drop Cable

Small diameter, Aramid yarn strength member. excellent softness and high strength.



Duct Bow-Type Drop Cable

The kind of cable is suitable for duct to the home;

Excellent waterproof performance and excellent tensile strength;

Excellent lateral waterproof performance.



Water-Proof Cable

Excellent lateral waterproof performance and excellent tensile strength;

Each Sub-cable unit can be separately terminated.



Operating Temperature:-20℃~﹢70℃



Transmission Performance


Item

62.5μm(OM1)

850nm/1300nm

50μm(OM2)

850nm/1300nm

50μm(OM3)

850nm/1300nm

SM

1310nm/1550nm

Attenuation Of

Maximum Value(dB/km)

3.5/1. 5

3.5/1. 5

3.5/1. 5

0. 4/0. 3

Attenuation Of

Typical Value(dB/km)

3.5/1. 5

3.0/1. 0

3.0/1. 0

0. 38/0. 25


Note: Other types of fiber can be provided according to the customer’s demands.


Product Impression:

  1. Manufacturer: SOPTO

  2. Cable Type: GJXH, or others

  3. Cable Specification: 3.0×2.0

  4. Cores Number: 1, 2, 4, 6, 8 cores fiber.

  5. Central Strength Member: Steel or FRP.

  6. Fiber Module Mode: SM or MM.

  7. Fiber Color: Nature, Black, Yellow…

  8. Fiber Type: 9/125 (G657A2)

  9. Sheath Color: Black

  10. Sheath Material: LSZH/PVC/OFNR/OFNP/Plenum

  11. Cable Dimension: 3.0 x 2.0mm

  12. Cable Weight: 10.0Kg/km

  13. Min. Bending Radius: 10mm (Static) 25mm (Dynamic)

  14. Attenuation: 0.4 dB/km at 1310nm, 0.3 dB/km at 1550nm

  15. Short Term Tensile: 200N

  16. Crush Resistance: 2200 N/100mm

  17. Operation Temperature: -20~+60°C



Performance Feature:

  1. Good mechanical and environmental characteristics

  2. Flame retardant characteristics meet the requirements of relevant standards

  3. The mechanical characteristics of jacket meet the requirements of relevant standards

  4. Soft, flexible, easy to lay and splice, and with big capacity data transmission

  5. Meet various requirements of market and clients

  6. The Optical fiber unit is positioned in the centre

  7. Two parallel fiber reinforced plastics as placed at the two sides

  8. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

  9. Simply structure, light weight and high practicability

  10. LSZH and flame retardant sheath

  11. Different cores are available



Note: Part in order to prevail in kind. Please contact customer service before buying.



FTTH Drop Cable Application:

  1. Access network, fiber to the home

  2. Used end users directly cabling



Extra Important Product's Information

  1. Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;

  2. Jacket Material: Environmental flame retardant polyvinylchloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), or other contracted material;

  3. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

  4. Cable Dimension: The nominal cable dimension or other contracted dimension;

  5. Delivery Length: 1km or 2km, or other contracted length;

  6. Other Requirements: Other contracted special requests.


FTTH Drop Cable Description



FTTH Drop Cables are good to use for fiber to the home last mile solution, it has small diameter and light weight, this makes it space-saving and easy to handle, the optical fiber cable is with special structure so it is easy to pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the houses, suitable for being used in homes and offices. The FTTH drop cable has different counts from 1, 2, 4, to 12. They are fully meet the RoHS standards and contain no harmful components.
