GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCH, Outdoor Cabling Bow-Type Drop Cable
Traditional Bow-Type Drop Cable
(GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCH)

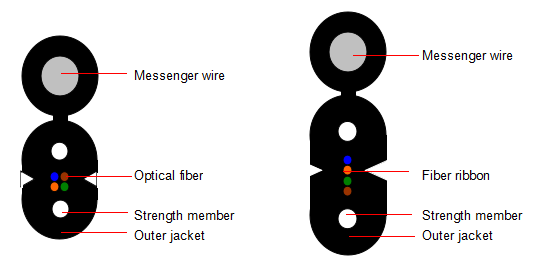

Product Structure:
Product Description:
GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)
GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)
GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)
GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting)
Standards:
YD/T 1997.1-2014 Bow-type drop cable for access network
Technical Parameters(Typical Value):
| Type | Fiber Count | Specifications (mm) | Weight (kg/km) | Tensile(N) | Crush(N) | Bending Radius(mm) | |||
Long term | Short term | Long term | Short term | Static | Dynamic | ||||
GJYXCH | 1, 2, 4 | 2.0×5. 0 | 18. 1 | 100 | 200 | 1000 | 2200 | 15 | 30 |
Low friction GJYXCH | 1, 2 | 1. 6×3.7 | 15. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
GJYXDCH | 4 | 2.0×6. 0 | 18. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
GJYXFCH | 1, 2, 4 | 2.0×5. 0 | 13.5 | 40 | 80 | 500 | 1000 | 15 | 30 |
Low friction GJYXFCH | 1, 2 | 1. 6×3.7 | 17. 0 | 40 | 80 | 500 | 1000 | 15 | 30 |
GJYXFDCH | 4 | 2.0×6. 0 | 17. 1 | 40 | 80 | 500 | 1000 | 15 | 30 |
Note 1. The relevant technical Parameters can be adjusted according to the customer’s demands;
2.PVC and other materials can be used as jacket according to the customer’s demands.
