Fiber Optical Adapter

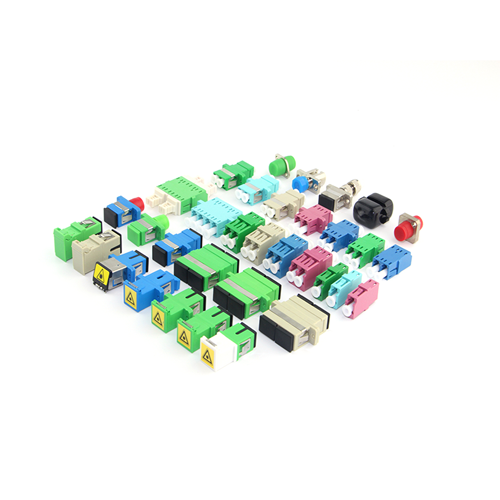

fiber-optic-adapter.pngSopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters ,mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors ,while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.



They provide reliable solution for fiber connections, single mode fibre optic adapters and multimode fiber optic adapters available on request. Sopto adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adapters fully compatible with the products from other manufacturers' in the market. Sopto offer Fiber Optic Adapters FC, SC, ST, LC, MT-RJ, MU, simplex, E2000, FC/APC, duplex, SC/APC, LC/APC, E2000/APC , MPO/MTP, quad, mating sleeves, hybrid fiber optic adapters, Single mode fiber optic adapters, multimode fiber optic adapters.

Specification:

ParameterUnitLC,SC,FC,MU,ST,SC-ST,FC-ST,FC-SC,FC-LC,FC-MU
SM
MM
PCUPCAPCPC
Insertion Loss(Typical)dB≤0.3≤0.2≤0.3≤0.2
Return LossdB≥45≥50≥60≥30
ExchangeabilitydB≤0.2
RepeatabilitydB≤0.2
DurabilityTime>1000
Operating Temperature-40~75
Storage Temperature-45~85
