GYTY53

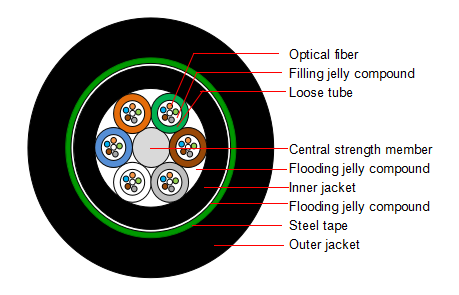

Product Structure:










Product Description:

GYTY53 (Loose tube stranding, Metal strength member, Flooding jelly compound, PE inner jacket, Steel-polyethylene adhesive outer jacket)



Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications



Technical Parameters(Typical Value):



Fiber Count
Structure

Diameter

(mm)

Weight

(kg/km)

Tensile(N)
Crush(N)
Bending Radius(mm)

long

term

Short

 term

long

term

Short

term

Static
Dynamic

2-30

1+6

11. 6

140

1000

3000

1000

3000

12.5D

25D

32-36

1+6

11. 6

140

1000

3000

1000

3000

12.5D

25D

38-60

1+6

12.4

161

1000

3000

1000

3000

12.5D

25D

62-72

1+6

12.4

162

1000

3000

1000

3000

12.5D

25D

74-84

1+7

13.3

186

1000

3000

1000

3000

12.5D

25D

86-96

1+8

13.9

199

1000

3000

1000

3000

12.5D

25D

98-108

1+9

14.6

217

1000

3000

1000

3000

12.5D

25D

110-120

1+10

15. 3

240

1000

3000

1000

3000

12.5D

25D

122-132

1+11

15. 9

255

1000

3000

1000

3000

12.5D

25D

134-144

1+12

16. 7

277

1000

3000

1000

3000

12.5D

25D

146-216

1+6+12

16. 6

278

1000

3000

1000

3000

12.5D

25D

218-288

1+9+15

18. 6

341

1000

3000

1000

3000

12.5D

25D



Note  1.D refers to the cable diameter;

          2.The relevant technical Parameters can be adjusted according to the customer’s demands;

          3.The block water way can be adjusted according to the customer’s demands;

          4.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
