10G XFP

XFP modules are hot-swappable and protocol-independent. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. Principal applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense wavelength-division multiplexing techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard. XFP modules use an LC fiber connector type to achieve higher density. The XFP specification was developed by the XFP Multi Source Agreement Group. It is an informal agreement of an industry group, not officially endorsed by any standards body. The first preliminary specification was published on March 27, 2002. The first public release was on July 19, 2002. It was adopted on March 3, 2003, and updated with minor updates through August 31, 2005.

SOPTO XFP Module Main Info

1. Ring Color: Blue/Red/White/Black

2. Material: Metal

3. Weight: 0.02kg

4. Packing Quantity: 200pcs, 400pcs, 600pcs(accept sample order)

5. Data Rate: 9.95Gb/s to 11.3Gb/s

6. Wavelength: 850nm/1310nm/1550nm

7. Fiber Types: 50/1251m MMF/ 62.5/1251m MMF/SMF

8. Fiber Connector Type: LC

9. Transmission Mode: Duplex/Simplex

10. Transmission Distance: 300m (MM), 10km/20km/80km (SM)

11. Laser Type: 850nm/1310nm/1550nm laser diode transmitter

12. Operating Case Temperature: Standard: 0~70°C; Industrial: -40~85°C

13. DDM Function: With

14. Compatible Brands: Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

SOPTO XFP Transceiver Model

Other Information of our XFP Module

1. Operating Humidity: 0%~90% RH no condensing

2. Storage Humidity: 5%~90% RH no condensing

3. Saturated Optical Power: -3dBm

4. Average Output Power: -20~ -14dBm

5. Receiver Sensitivity: -31~-12.3 dBm

6. Supply Current: 351~386mA

7. Power Supply: +3.3V single power supply

8. Power Consumption: <2.5W

9. Extinction Ratio: 10~17dB

10. Storage Temperature: -40~85°C

11. Number of Times of Hot-Pluggable:>200

Performance Feature:

1. Compliant with XFP MSA Rev.4.0

2. XFP 10 Gigabit Transceiver Description

3. 850nm/1310nm/1550nm laser diode transmitter

4. Support 9.95Gb/s to 11.3Gb/s (data rate: 10 gigabit)

5. Below 2.5W power consumption

6. 10G XFI interface

7. XFP MSA package with duplex LC connector

8. With Digital Diagnostic Monitor Interface

9. Standard operating temperature range 0°C to 70°C

10. No reference clock requirement

11. Hot-pluggable

12. Good EMI, RoHS compliant

Application

• 10G Ethernet

• 10G Fibre Channel

• SONET/SDH

• switches and routers

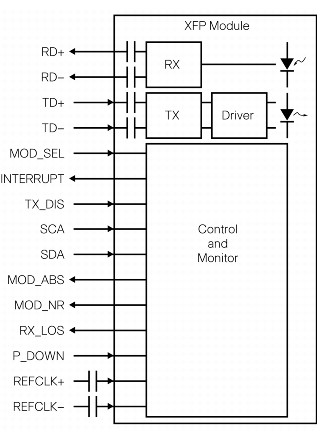

XFP Module Block Diagram

Transmitter :In the transmit direction, the transceiver module receives a 10-Gbps electrical data signal and transmits the data as an optical signal through an electrical to optical converter. The optical output power is held constant by an automatic power control circuit. The transmitter also contains a Clock Data Recovery (CDR) circuit. The function of this circuit is to attenuate and reshape any jitter received on the electrical interface.

Receiver: In the receive direction, the transceiver module receives a 10-Gbps optical signal and converts it to an electrical equivalent. The receiver contains a CDR circuit.
