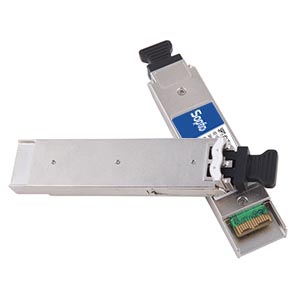

WDM XFP

WDM XFP series transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

SOPTO 10G BIDI/WDM XFP Transceiver Main Info

1. Ring Color: Blue/Red/White

2. Material: Metal

3. Weight: 0.02kg

4. Packing Quantity: 200pcs, 400pcs, 600pcs (accept sample order)

5. Data Rate: 10G

6. Wavelength: 1270nm TX 1330nm RX/1330nm TX 1270nm RX

7. Fiber Types: Single Mode (SM)

8. Fiber Connector Type: LC

9. Transmission Mode: Simplex

10. Transmission Distance: 10km, 20km, 40km, 60km

11. Laser Type: 1310nm FP laser and PIN photo-detector

12. Operating Case Temperature: -5~70°C

13. DDM Function: With

14. Compatible Brands: Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl鈥�




SOPTO 10G BIDI/WDM XFP Transceiver Model

Other information of our BIDI XFP

1. Operating Humidity: 0%~90% RH no condensing

2. Storage Humidity: 5%~90% RH no condensing

3. Saturated Optical Power: -3dBm

4. Average Output Power: -20~ -14dBm

5. Receiver Sensitivity: -15dBm

6. Supply Current: 351~386mA

7. Power Supply: +3.3V single power supply

8. Power Consumption: <3.5W

9. Number of Times of Hot-Pluggable: >200

Performance Feature:

1. Support 9.95Gb/s to 10.3Gb/s bit rates (10 Gigabit)

2. Hot-pluggable XFP footprint

3. Maximum link length of 10km with SMF

4. Single Fiber 1270/1310nm DFB laser Transmitter and 1300/1270nm Receiver

5. XFP MSA package with LC connector

6. No reference clock required

7. Loop Back Support

8. +3.3V power supply

9. Power dissipation<2W

10. Compatible with RoHS

11. Built-in digital diagnostic functions

Application

• 10GBASE-LR at 10.3125Gbps

• 10GBASE-LW at 9.953Gbps

• 10GBASE-BX 10G Ethernet
