Compact CWDM Mux Demux Module

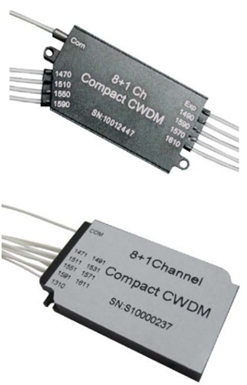

compact cwdm mux demux moduleProduct Impression

  1. Manufacturer: Sopto
  2. Latest Price:Contact online customer service NOW!
  3. Center Wavelength: 1471~1611nm
  4. Channel Spacing: 20nm
  5. Passband: CW±7.0nm
  6. Max Insertion Loss Without Connector: 1.5dB
  7. Adjacent Isolation: 30dB
  8. PDL: 0.2dB
  9. Directivity: 55dB
  10. Return Loss: 45dB
  11. PMD: 0.2ps
  12. Operating Temperature: -40 to +85℃
  13. Storage Temperature: -40 to +85℃
  14. Fiber Type: Corning ClearCurve® ZBL or G657A1 Fiber
  15. Browse the Evaluation: Click here to browse



Note: Part in order to prevail in kind. Please contact customer service before buying.



Performance Feature

  • Telcordia GR -1221 and GR -1209 Compliance
  • Compact size
  • Low insertion loss
  • Excellent temperature stability



Applications

  • Broadband Systems
  • Optical Add/Drop Multiplexing
  • Metro/Access Communication Networks
  • Fiber Optic Instruments



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



Sopto Compact CWDM Mux Demux Module Description



Sopto now offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages.  Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.



Sopto’s compact CWDM is based on thin film filter technology and available in 4 -or 8 -channel configurations. Optical performance is excellent with low insertion loss and excellent temperature stability.

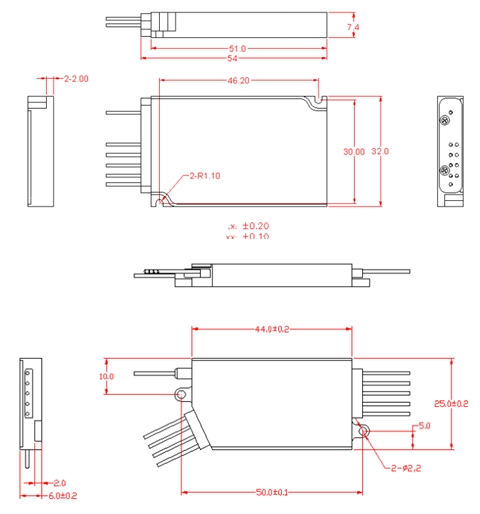

Package Dimensions



compact cwdm mux demux module package dimension

Sopto Compact CWDM Mux Demux Module



Performance Specification



Parameter

Unit

8Channel

Wavelength

nm

1471,1491,1511,1531,

1551,1571,1591,1611

Center Wavelength

nm

20

Passband

nm

CW±7.0

Max Insertion Loss

(Without Connector)

dB

1.5

Adjacent Isolation

dB

30

Non-Adjacent Isolation

dB

45

PDL

dB

0.2

Directivity

dB

55

Return Los

dB

45

PMD

ps

0.2

Operating Temperature

-40 to +85

Storage Temperature

-40 to +85

Fiber Type

G657A1 Fiber or Corning ClearCurve® ZBL

Package Dimensions

mm

43.0X25.0X6.0 or 54.0X32X7.4
