FWDM Photo Detector

FWDM Photo DetectorProduct Impression

  1. Manufacturer: Sopto
  2. Latest Price:Contact online customer service NOW!
  3. Passband Ripple: 0.3dB
  4. Polarization Dependent Loss: 0.15dB
  5. Return Loss: 50dB
  6. PD Dark Current: ≤1.0 (@25℃, 5V bias) nA
  7. PD Bandwidth: 1.0GHz
  8. Operating Temperature: -10 to +70℃
  9. Storage Temperature: -40 to + 85℃
  10. Fiber Type: G657A1 Fiber
  11. Fiber Jacket: 900μm Loose Tube
  12. Browse the Evaluation: Click here to browse



Note: Part in order to prevail in kind. Please contact customer service before buying.



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT, UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin

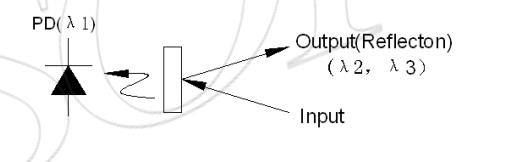

Configuration

FWDM Photo Detector

FWDM Photo Detector Configuration

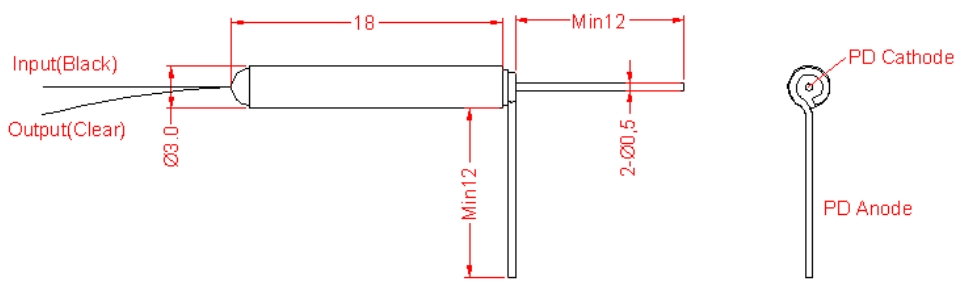

Package Dimension

FWDM Photo Detector Package Dimension

FWDM Photo Detector Package Dimension



Performance Specification



Parameter

Unit

Min

Typical

Max

Pass Channel Wavelength Range λ1

nm

1540



1560

Reflection Channel Wavelength Range λ2

nm

1260
1480



1360
1500

Reflection Channel Wavelength Range λ3

Insertion Loss

dB



0.4

0.6

Isolation

Pass Channel

dB

30





Reflect Channel

15





Passband Ripple

dB





0.3

Polarization Dependent Loss

dB





0.15

Return Loss

dB

50





PD Responsibility

mA/mW

0.8

0.9



PD Dark current

nA

≤1.0 (@25℃, 5V bias)

PD Bandwith

GHz

1.0

Operating Temperature

-10 to +70

Storage Temperature

-40 to +85

Fiber Type

G657A1 Fiber

Fiber Jacket

900μm Loose Tube

Connector Type

TBD

Fiber Length

1.0±0.1

Lead Soldering Temperature

260 (<10s)

Package Dimensions

mm

Ø3.0X18 (Bare Fiber)

Ø3.0X22(900 μm Loose Tube)
