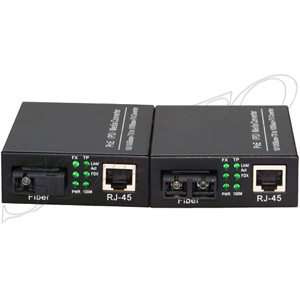

PD Media converter


SOPTO PD Media Converter Model

Part No.Description
SPM-DT43-N02S

PD Media converter MM 10/100M 2KM SC

SPM-DT43-N20S

PD Media converter SM 10/100M 20KM SC

SPM-DT43-N40S

PD Media converter SM 10/100M 40KM SC

SPM-DT435-N20S

PD Media converter10/100M BiDi Converter 20KM SC Connector

TX 1310 RX 1550 over one Fiber

SPM-DT453-N20S

PD Media converter10/100M BiDi Converter 20KM SC Connector

TX 1550 RX 1310 over one Fiber

SPM-DT435-N40S

PD Media converter10/100M BiDi Converter 40KM SC Connector

TX 1310 RX 1550 over one Fiber

SPM-DT453-N40S

PD Media converter10/100M BiDi Converter 40KM SC Connector

TX 1550 RX 1310 over one Fiber


Product Impression:


  1. Data rate: 10/100Mbps

  2. Fiber Types: Single mode (20km, 40km), multi mode (2km)

  3. UTP Cable: Cat5 UTP cable

  4. Color: Black or as customized

  5. Fiber Connector Type: SC, BIDI or others

  6. Interface Type: RJ45

  7. Transmission Mode: Half duplex or full duplex

  8. Transmission Distance: 2km, 20km, 40km

  9. Wavelength: TX 1310nm RX 1550nm/ TX 1550nm RX 1310nm, others

  10. Storage Temperature: 20°C to +85°C

  11. Operating Temperature: 0°C to 50°C

  12. Operating Humidity: 0%~90% RH no condensing

  13. Storage Humidity: 5%~90% RH no condensing

  14. Dimensions: 71(W) x 27(H) x 94(L) mm

  15. Weight: 200 g

  16. Power: Internal or external are both available

  17. Power Consumption: ≤5W

  18. Manageable or Unmanageable: Manageable or unmanageable are both available

  19. Application: Ethernet Network



Performance Feature:

  1. Supports 10/100Base-TX UTP to 100Base-FX

  2. Complied with IEEE802.3af standard

  3. Built in AC/DC power supply or supports external power supply


What does the “PD” mean for this media converter?

The “PD” refers to “Power Device”. The PD media converter is the client device to accept power from IEEE802.3af Power Sourcing Equipment (PSE) over CAT5 UTP cable (cable length up to 100meters / 330feets).



The function of POE-PD media converter

POE-PD is a 10/100Base-Tx to 100Base-FX media converter, which allows two types of network segment to be connected easily.
