SPT-X2-SR 10G X2 SR Transponder
SPT-X2-SR
X2 SR Transponder
Features
- Compatible with X2 MSA Rev2.0b
- Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
- Transmission Distance up to 300m(MMF)
- Vertical Cavity Surface Emitting Laser at 850nm
- SC Duplex Optical Connector
- Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
- Management and control via MDIO 2-wire interface
- Power Supply :+3.3V, APS(+1.2V)
- Diagnostic Optics Monitoring
- Temperature Range: 0~ 70 °C
- ROHS6 Compatible
Applications
- 10GE Ethernet switches and routers
- 10GE Core-routers
- 10GE Storage
- Other 10Gbps Ethernet Transmission System
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
Ref. |
|
Storage Ambient Temperature Range |
|
-40 |
+85 |
°C |
non condensing |
|
Powered case Temperature Range |
|
0 |
+70 |
°C |
non condensing |
|
Adaptable Power Supply(APS) |
Vap sense |
0 |
1.5 |
V |
Voltage @Pin APS Sense |
|
Supply Voltage Range @3.3V |
Vcc3 |
-0.5 |
4.0 |
V |
|
Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.
Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Operating Case Temperature |
Tc |
0 |
|
+70 |
°C |
|
Power Supply Voltage |
VCC3 |
3.14 |
3.3 |
3.47 |
V |
|
VAPS |
1.152 |
1.2 |
1.248 |
||
|
Power Dissipation |
PD |
|
1.7 |
2.4 |
W |
Optical Interface
Transmitter Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Range |
|
|
|
300 |
m |
|
|
Operating Date Rate |
|
|
10.3125 |
|
Gb/s |
|
|
Average Optics Power |
Po |
-6.5 |
|
-1 |
dBm |
|
|
Input Centre Wavelength |
λ |
840 |
850 |
860 |
nm |
|
|
Spectral Width |
Δλ |
|
0.4 |
0.45 |
dB |
|
|
Extinction Ratio |
ER |
3.5 |
|
|
|
|
|
Optical Modulation Amplitude |
OMA |
525 |
|
|
µW |
|
|
Transmitter and Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
|
Receiver Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
|
|
10.3125 |
|
Gb/s |
|
|
Overload |
Po |
-9.9 |
|
-1.0 |
dBm |
|
|
Sensitivity in OMA |
OMA0 |
|
|
-11.1 |
dBm |
1 |
|
Stressed Sensitivity in OMA |
OMAst |
|
|
-7.5 |
dBm |
|
Note: 1. Measured at 10.3125Gb/s, Non-framed PRBS2 31-1, NRZ
XAUI I/O Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
XAUI Date Rate |
DR |
|
3.125 |
|
Gb/s |
|
|
XAUI Baud Rate Tolerance |
|
-100 |
|
+100 |
ppm |
Relative Tolerance |
|
Differential Input Voltage Swing |
|
220 |
|
1600 |
mv |
8B/10B Coded Input Signal |
|
Differential Output Voltage Swing |
|
800 |
|
1600 |
mVp-p |
RLOAD=100Ω±5% |
|
Differential Input Impedance |
|
80 |
100 |
120 |
Ω |
|
|
Total Output Jitter |
TJXAUI |
|
|
0.35 |
UI |
no pre-equalization |
|
Total Deterministic Output Jitter |
DJXAUI |
|
|
0.17 |
UI |
no pre-equalization |

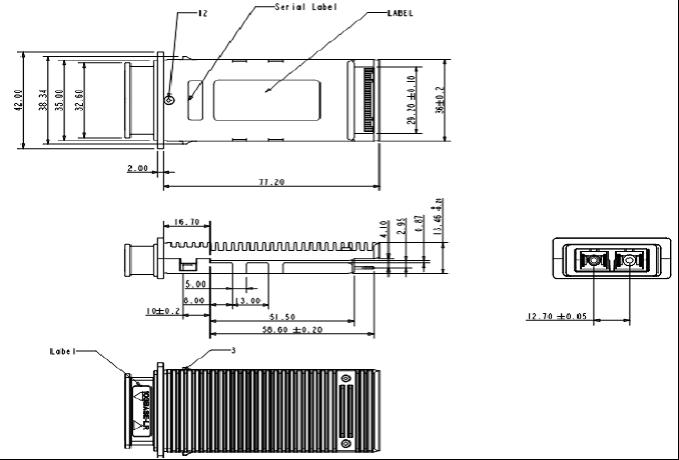

MechanicalDimensions
Dimensionsinmm
Ordering Information
|
Part Number |
Product Description |
|
SPT-X2-SR |
850nm,10.3125Gbps,300m,0ºC~70ºC |
