Sources for Fiber Optic Transmitters


The sources used for fiber optic transmitters need to meet several criteria: it has to be at the correct wavelength, be able to be modulated fast enough to transmit data and be efficiently coupled into fiber.

Four types of sources are commonly used, LEDs, fabry-perot (FP) lasers, distributed feedback (DFB) lasers and vertical cavity surface-emitting lasers (VCSELs). All convert electrical signals into optical signals, but are otherwise quite different devices. All three are tiny semiconductor devices (chips).

LEDs and VCSELs are fabricated on semiconductor wafers such that they emit light from the surface of the chip, while f-p lasers emit from the side of the chip from a laser cavity created in the middle of the chip.


LEDs have much lower power outputs than lasers and their larger, diverging light output pattern makes them harder to couple into fibers, limiting them to use with multimode fibers. Laser have smaller tighter light outputs and are easily coupled to single mode fibers, making them ideal for long distance high speed links.

 LEDs have much less bandwidth than lasers and are limited to systems operating up to about 250 MHz or around 200 Mb/s. Lasers have very high bandwidth capability, most being useful to well over 10 GHz or 10 Gb/s.

Because of their fabrication methods, LEDs and VCSELs are cheap to make. Lasers are more expensive because creating the laser cavity inside the device is more difficult, the chip must be separated from the semiconductor wafer and each end coated before the laser can even be tested to see if its good.


Typical Fiber Optic Source Specifications

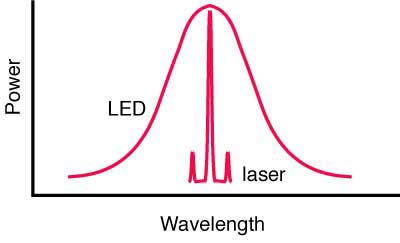

LEDs have a limited bandwidth while all types of lasers are very fast. Another big difference between LEDs and both types of lasers is the spectral output. LEDs have a very broad spectral output which causes them to suffer chromatic dispersion in fiber, while lasers have a narrow spectral output that suffers very little chromatic dispersion. DFB lasers, which are used in long distance and DWDM systems, have the narrowest spectral width which minimizes chromatic dispersion on the longest links.

DFB lasers are also highly linear (that is the light output directly follows the electrical input) so they can be used as sources in AM CATV systems.


The choice of these devices is determined mainly by speed and fiber compatibility issues.  As many premises systems using multimode fiber have exceeded bit rates of 1 Gb/s, lasers (mostly VCSELs) have replaced LEDs.

The output of the LED is very broad but lasers are very focused, and the sources will have very different modal fill in the fibers. The restricted launch of the VCSEL (or any laser) makes the effective bandwidth of the fiber higher, but laser-optimized fiber, usually OM3, is the choice for lasers.


The electronics for a transmitter are simple. They convert an incoming pulse (voltage) into a precise current pulse to drive the source. Lasers generally are biased with a low DC current and modulated above that bias current to maximize speed.
