SD SDI SMPTE 3G Video SFP Transceiver SPT-P2RV3-XX
SPT-P2RV3-XX
3Gbps Video SFP Optical Receiver, PIN photo detector
Features
HD-SDI SFP Receiver available
SD-SDI SFP Receiver available
3G-SDI SFP Receiver available
SMPTE 297-2006 Compatible
Metal enclosure for Lower EMI
PIN photo detector
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Digital Diagnostic functions available through the I2C interface
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
Applications
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.
Description
The video series transceivers are high performance, cost effective modules for duplex video transmission application over single mode fiber.
The receiver is designed to receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
The receiver is consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Operating Case Temperature |
Standard |
Tc |
0 |
|
+70 |
°C |
|
PowerSupplyVoltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
|
|
150 |
mA |
|
|
Data Rate |
|
|
3 |
|
Mbps |
|
Opticaland Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
||
|
Receiver |
||||||||
|
Rise/Fall Time (20%~80%) |
SD-SDI |
|
|
|
1500 |
ps |
|
|
|
HD-SDI |
tr/tf |
|
|
270 |
1 |
|||
|
3G-SDI |
|
|
|
135 |
|
|||
|
Total Output jitter |
PRBS and cooler bar |
SD-SDI |
|
|
70 |
200 |
ps |
|
|
HD-SDI |
|
|
50 |
135 |
|
|||
|
3G-SDI |
|
|
70 |
100 |
|
|||
|
Pathological |
SD-SDI |
|
|
200 |
300 |
|
||
|
HD-SDI |
|
|
115 |
|
|
|||
|
3G-SDI |
|
|
120 |
|
|
|||
|
Centre Wavelength |
|
λc |
1260 |
|
1580 |
nm |
|
|
|
Receiver Sensitivity (PRBS) |
SD-SDI |
|
|
|
-22 |
dBm |
|
|
|
HD-SDI |
|
|
|
-22 |
dBm |
|
||
|
3G-SDI |
|
|
|
-22 |
dBm |
|
||
|
Receiver Sensitivity (Pathological) |
SD-SDI |
|
|
|
-20 |
dBm |
|
|
|
HD-SDI |
|
|
|
-22 |
dB |
|
||
|
3G-SDI |
|
|
|
-22 |
mV |
|
||
|
Receiver Overload |
|
|
0 |
|
|
dBm |
3 |
|
|
LOS De-Assert |
|
LOSD |
|
|
|
dBm |
|
|
|
LOS Assert |
|
LOSA |
|
|
|
dBm |
|
|
|
LOS Hysteresis |
|
|
|
|
|
dB |
|
|
|
Data Output Swing Differential |
|
Vout |
650 |
800 |
1000 |
mV |
2 |
|
|
LOS |
|
High |
2.0 |
|
Vcc |
V |
|
|
|
|
Low |
|
|
0.8 |
V |
|
||
Notes:
1. Rise and fall times, 20% to 80%, are measured following a fourth-order Bessel-Thompson filter with a bandwidth of 0.75 x clock frequency corresponding to the serial data rate.
2. PECL input, internally AC-coupled and terminated.
3. Internally AC-coupled
Pin Definitions

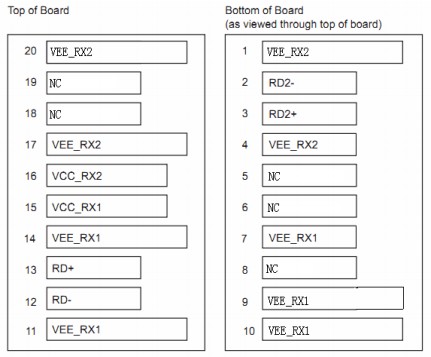

Pin Diagram
Pin Descriptions
|
Pin |
Signal Name |
Description |
PlugSeq |
Notes |
|
1 |
VEE_RX2 |
Receiver2 Ground |
1 |
|
|
2 |
RD2- |
Inv. Received2 Data Out |
3 |
Note1 |
|
3 |
RD2+ |
Received2 Data Out |
3 |
Note1 |
|
4 |
VEE_RX2 |
Receiver2 Ground |
3 |
|
|
5 |
NC |
Not Connected |
3 |
|
|
6 |
NC |
Not Connected |
3 |
|
|
7 |
VEE_RX1 |
Receiver1 Ground |
3 |
|
|
8 |
NC |
Not Connected |
3 |
|
|
9 |
VEE_RX1 |
Receiver1 Ground |
1 |
|
|
10 |
VEE_RX1 |
Receiver1 Ground |
1 |
|
|
11 |
VEE_RX1 |
Receiver1Ground |
1 |
|
|
12 |
RD- |
Inv. Received Data Out |
3 |
Note1 |
|
13 |
RD+ |
Received Data Out |
3 |
Note1 |
|
14 |
VEE_RX1 |
Receiver1 Ground |
1 |
|
|
15 |
VCC_RX1 |
Receiver1 Power Supply |
2 |
|
|
16 |
VCC_RX2 |
Receiver2 Power Supply |
2 |
|
|
17 |
VEE_RX2 |
Receiver2 Ground |
1 |
|
|
18 |
NC |
Not Connected |
3 |
|
|
19 |
NC |
Not Connected |
3 |
|
|
20 |
VEE_RX2 |
Receiver2 Ground |
1 |
|
1) RD-/+: These are the differential receiver outputs. They are internally AC-coupled 100 differential lines which should be terminated with 100Ω (differential) at the user SERDES.
Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
SPT-P2RV3-XX |
PIN, 3Gbps, Video Dual Rx SFP, 0ºC~+70ºC, Without DDM |
