SPT-P2T13V3-20D

3Gbps Video SFP Optical Transmitter, 20km Reach

Features

HD-SDI SFP Transmitter available

SD-SDI SFP Transmitter available

3G-SDI SFP Transmitter available

SMPTE 297-2006 Compatible.

Metal enclosure for Lower EMI

1310nm DFB laser

Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

Digital Diagnostic functions available through the I2C interface

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Standard: 0 to +70°C

Applications

SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.

HDTV/SDTV Service Interfaces.

Description

The video series transceivers are high performance, cost effective modules for duplex video transmission application over single mode fiber.

The Transmitter is designed to transmit data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.

The transmitter is a dual channel optical transmitter module, one channel consists of two sections: a FP laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.5

4.5

V

Storage Temperature

Ts

-40

+85

°C

Operating Humidity

-

5

85

%

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Standard

Tc

0



+70

°C

Industrial









Power Supply Voltage

Vcc

3.13

3.3

3.47

V

Power Supply Current

Icc





500

mA

Data Rate





3



Gbps

Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm



Spectral Width (-20dB)

σ





1

nm



Side Mode Suppression Ratio

SMSR

30





dB



Average Output Power

Pout

-6

-2

0

dBm

1

Extinction Ratio

ER

5

8



dB


Rise/Fall Time (20%~80%)

SD-SDI

tr/tf





1500

ps



HD-SDI



270

2

3G-SDI



135



Total Output Jitter

PRBS and color bar

SD-SDI





70

200

ps





HD-SDI

50

135



3G-SDI

70

100



Pathological

SD-SDI

200

300



HD-SDI

115





3G-SDI

120





Data Input Swing Differential

VIN

400



1800

mV

3

Input Differential Impedance

ZIN

90

100

110

Ω



TX Disable

Disable



2.0



Vcc

V



Enable



0



0.8

V



TX Fault

Fault



2.0



Vcc

V



Normal



0



0.8

V


Notes:

1. Rise and fall times, 20% to 80%, are measured following a fourth-order Bessel-Thompson filter with a bandwidth of 0.75 x clock frequency corresponding to the serial data rate.

2. PECL input, internally AC-coupled and terminated.

3. Internally AC-coupled

Timing and Electrical

Parameter

Symbol

Min

Typical

Max

Unit

TX Disable Negate Time

t_on





1

ms

TX Disable Assert Time

t_off





10

µs
Time To Initialize, including Reset of TX Fault

t_init





300

ms

TX Fault Assert Time

t_fault





100

µs

TX Disable To Reset

t_reset

10





µs

Serial ID Clock Rate

f_serial_clock





280

KHz

MOD_DEF (0:2)-High

VH

2



Vcc

V

MOD_DEF (0:2)-Low

VL





0.8

V

Diagnostics Specification

Parameter

Range

Unit

Accuracy

Calibration

Temperature

0to+70

°C

±3°C

 Internal / External

Voltage

3.0to3.6

V

±3%

Internal / External

Bias Current

0to100

mA

±10%

Internal / External

TX Power

-5to0

dBm

±3dB

Internal / External
I2C Bus Interface

The I2C bus interface uses the 2-wire serial CMOS E2PROM protocol. The serial interface meets the following specifications:

1. Support a maximum clock rate of 280 KHz.

2. Input/output levels comply with LVCMOS/LVTTL or compatible logics.

Low: 0 – 0.8 V High: 2.0 – 3.3 V Undefined: 0.8 – 2.0 V

Pin Definitions

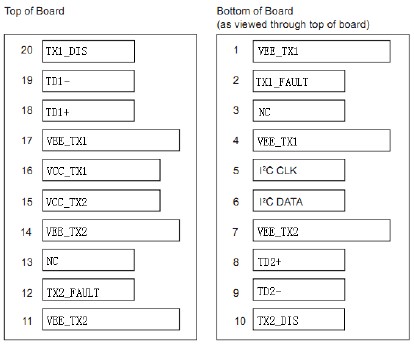

Pin Descriptions
Pin Descriptions

Pin

Signal Name

Description

Plug Seq.

Notes

1

VEE_TX1

Transmitter 1 Ground

1



2

TX1_FAULT

Transmitter 1 Fault Indication

3

Note1

3

NC

Not Connected

3



4

VEE_TX1

Transmitter 1 Ground

3



5

I2CCLK

SCL Serial Clock Signal

3

Note3

6

I2CDATA

SDA Serial Data Signal

3

Note3

7

VEE_TX2

Transmitter 2 Ground

3



8

TD2+

Transmit 2 Data In

3

Note4

9

TD2-

Inv. Transmit 2 Data In

1

Note4

10

TX2_DIS

Transmitter2 Disable

1

Note2

11

VEE_TX2

Transmitter2 Ground

1



12

TX2_FAULT

Transmitter2 Fault Indication

3

Note1

13

NC

Not Connected

3



14

VEE_TX2

Transmitter2 Ground

1



15

VCC_TX2

Transmitter Power2 Supply

2



16

VCC_TX1

Transmitter Power1 Supply

2



17

VEE_TX1

Transmitter1 Ground

1



18

TD1+

Transmit1 Data In

3

Note4

19

TD1-

Inv.Transmit1 Data In

3

Note4

20

TX1_DIS

Transmitter1 Disable

1

Note2
Notes:

Plug Seq.: Pin engagement sequence during hot plugging.

1) TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; Logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.

2) TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a4.7k~10kΩ resistor. Its states are:

Low (0 to 0.8V): Transmitter on

(>0.8V, < 2.0V): Undefined

High (2.0 to 3.465V): Transmitter Disabled

Open: Transmitter Disabled

3) They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VCC_TX1or VCC_TX2.

I2C CLK is the clock line of two wire serial interface for serial ID

I2C DATA is the data line of two wire serial interface for serial ID

4) TD1/2-/+: These are the differential transmitter inputs. They are internally AC-coupled, differential lines with 100Ω differential termination inside the module.

Serial ID Field Memory Map

The module serial ID and calibration information is stored in the E2PROM of the SFP supervising device using the address map.

Byte Adder

Bit Size

Name

Description

Value

(hex)

0

1

Identifier

Type of transceiver

82

1

1

Ext.Identifier

Extended identifier of type of transceiver

04

2

1

Connector

 Code for connector type

07

3

1

Standards Compliance

 For SMPTE259M/344M/292M/424M and SMPTE297M

41

4~10

7

Transceiver

 Code for electronic or optical compatibility,
Not applicable.



11

1

Encoding

 Code for serial encoding algorithm

30

12

1

BR,Nominal

 Nominal signaling rate, units of 100MBd.

1E

13

1

RateIdentifier

 Type of rate select functionality, Not applicable



14

1

Length(SMF,km)

 Link length supported for single mode fiber, units of km

14

15

1

Length(SMF)

 Link length supported for single mode fiber, units of 100 m

00

16

1

Length(50um)

 Link length supported for 50 um OM2 fiber, units of 10 m

00

17

1

Length(62.5um)

 Link length supported for 62.5 um OM1 fiber, units of 10 m

00

18

1

Length(cable)

 Link length supported for copper or direct attach cable, units of m

00

19

1

Length(OM3)

 Link length supported for 50 um OM3 fiber, units of 10 m

00

20~35

16

Vendorname

 SFP vendor name (ASCII)

X

36

1

Reserved

 Reserved

00

37~39

3

Vendor OUI

 SFP vendor IEEE company ID



40~55

16

Vendor PN

 Part number provided by SFP vendor (ASCII)

X

56~59

4

Vendor rev

 Revision level for part number provided by vendor (ASCII)

X

60

2

Wavelength

 Laser wavelength (Passive/Active Cable Specification Compliance)



61



62

1

Unallocated





63

1

CC_BASE

 Check code for Base ID Fields



64

2

Options

 Indicates which optional transceiver signals are implemented



65



66

1

BR,max

 Upper bit rate margin, units of %

05

67

1

BR,min

Lower bit rate margin,units of %

5F

68~83

16

VendorSN

Serial number provided by vendor (ASCII)

X

84~91

8

Datecode

Vendor’s manufacturing date code



92

1

Diagnostic Monitoring Type

Indicates which type of diagnostic monitoring is implemented (ifany) in the transceiver

28

93

1

Enhanced Options

Indicates which optional enhanced features are implemented (ifany) in the transceiver

90

94

1

SFF-8472 Compliance

Indicates which revision of SFF-8472 the transceiver complies with.

X

95

1

CC_EXT

Check code for the Extended ID Fields



96~127

32

Vendor Specific

Vendor Specific EEPROM

0

Digital Diagnostic Monitoring Interface(2-Wire Address A2H)

Byte Addr

Bit Size

Name

Description and Value of the Field

00-01

2

Temp High Alarm

MSB at lower address. 100°C

02-03

2

Temp Low Alarm

MSB at lower address. -50°C

04-05

2

Temp High Warning

MSB at lower address. 95°C

06-07

2

Temp Low Warning

MSB at lower address. -45°C

08-09

2

Voltage High Alarm

MSB at lower address. 3.7V

10-11

2

Voltage Low Alarm

MSB at lower address. 2.9V

12-13

2

Voltage High Warning

MSB at lower address. 3.6V

14-15

2

Voltage Low Warning

MSB at lower address. 3.0V

16-17

2

Bias High Alarm

MSB at lower address. 70mA

18-19

2

Bias Low Alarm

MSB at lower address. 8mA

20-21

2

Bias High Warning

MSB at lower address. 65mA

22-23

2

Bias Low Warning

MSB at lower address. 9mA

24-25

2

TX1 Power High Alarm

MSB at lower address. 3dBm

26-27

2

TX1 Power Low Alarm

MSB at lower address. -8dBm

28-29

2

TX1 Power High Warning

MSB at lower address. 2dBm

30-31

2

TX1 Power Low Warning

MSB at lower address. -7dBm

32-33

2

TX2 Power High Alarm

MSB at lower address. 3dBm

34-35

2

TX2 Power Low Alarm

MSB at lower address. -8dBm

36-37

2

TX2 Power High Warning

MSB at lower address.  2dBm

38-39

2

TX2 Power Low Warning

MSB at lower address.  -7dBm

40-55

16

Reserved

Reserved

56-59

4





60-63

4





64-67

4





68-71

4





72-75

4





76-77

2

TX_I(Slope)

Set to 1 for “internally calibrated” devices. Valueis 0100.

78-79

2

TX_I(Off set)

Set to zero for “internally calibrated” devices. Values 0000.

80-81

2

TX_PWR(Slope)

Set to 1for “internally calibrated“ devices. Valueis 0100.

82-83

2

TX_PWR(Off set)

Set to zero for “internally calibrated” devices. Values 0000.

84-85

2

T(Slope)

Set to 1 for “internally calibrated” devices. Valueis 0100.

86-87

2

T(Off set)

Set to zero for “internally calibrated” devices. Values 0000.

88-89

2

V(Slope)

Set to 1 for “internally calibrated” devices. Valueis 0100.

90-91

2

V(Off set)

Set to zero for “internally calibrated” devices. Values 0000.

92-94

3

Reserved

Reserved

95

1

Check sum

Checksumofbytes0–94.

96-97

2

Temperature(MSB,LSB)

Internally measured module temperature

98-99

2

Supply Voltage(MSB,LSB)

Internally measured supply voltage in module

100-101

2

Bias1(MSB,LSB)

Internally measured module bias1

102-103

2

Tx1 Power(MSB,LSB)
Email us

Related Search
