3Gbps Dual Receiver Video SFP Transceiver with DDM SPT-P2RV3-XXD
SPT-P2RV3-XXD
3Gbps Video SFP Optical Receiver, PIN photo detector
Features
HD-SDI SFP Receiver available
SD-SDI SFP Receiver available
3G-SDI SFP Receiver available
SMPTE 297-2006 Compatible.
Metal enclosure for Lower EMI
PIN photo detector
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Digital Diagnostic functions available through the I2C interface
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
Applications
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.
Description
The video series transceivers are high performance, cost effective modules for duplex video transmission application over single mode fiber.
The receiver is designed to receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
The receiver is consists of two sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Operating Case Temperature |
Standard |
Tc |
0 |
|
+70 |
°C |
|
|
|
|
|
|
||
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
|
|
150 |
mA |
|
|
Data Rate |
|
|
3 |
|
Gbps |
|
Optical and Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|||
|
Receiver |
|||||||||
|
Rise/Fall Time (20%~80%) |
SD-SDI |
|
|
|
1500 |
ps |
|
||
|
HD-SDI |
tr/tf |
|
|
270 |
1 |
||||
|
3G-SDI |
|
|
|
135 |
|
||||
|
Total Output jitter |
PRBS and coolerbar |
SD-SDI |
|
|
70 |
200 |
ps |
|
|
|
HD-SDI |
|
|
50 |
135 |
|
||||
|
3G-SDI |
|
|
70 |
100 |
|
||||
|
Pathological |
SD-SDI |
|
|
200 |
300 |
|
|||
|
HD-SDI |
|
|
115 |
|
|
||||
|
3G-SDI |
|
|
120 |
|
|
||||
|
Centre Wavelength |
|
λc |
1260 |
|
1580 |
nm |
|
||
|
Receiver Sensitivity (PRBS) |
SD-SDI |
|
|
|
-22 |
dBm |
|
||
|
HD-SDI |
|
|
|
-22 |
dBm |
|
|||
|
3G-SDI |
|
|
|
-22 |
dBm |
|
|||
|
Receiver Sensitivity (Pathological) |
SD-SDI |
|
|
|
-20 |
dBm |
|
||
|
HD-SDI |
|
|
|
-22 |
dB |
|
|||
|
3G-SDI |
|
|
|
-22 |
mV |
|
|||
|
Receiver Overload |
|
0 |
|
|
dBm |
3 |
|||
|
LOS De-Assert |
LOSD |
|
|
-22 |
dBm |
|
|||
|
LOS Assert |
LOSA |
-29 |
|
|
dBm |
|
|||
|
LOS Hysteresis |
|
1 |
|
4 |
dB |
|
|||
|
Data Output Swing Differential |
Vout |
650 |
800 |
1000 |
mV |
2 |
|||
|
LOS |
High |
2.0 |
|
Vcc |
V |
|
|||
|
Low |
|
|
0.8 |
V |
|
||||
1. Rise and fall times, 20% to 80%, are measured following a fourth-order Bessel-Thompson filter with a bandwidth of 0.75 x clock frequency corresponding to the serial data rate.
2. PECL input, internally AC-coupled and terminated.
3. Internally AC-coupled
Timing and Electrical
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
LOS Assert Time |
t_loss_on |
|
|
100 |
µs |
|
LOS De-assert Time |
t_loss_off |
|
|
100 |
µs |
|
Serial ID Clock Rate |
f_serial_clock |
|
|
280 |
KHz |
|
MOD_DEF(0:2)-High |
VH |
2 |
|
Vcc |
V |
|
MOD_DEF(0:2)-Low |
VL |
|
|
0.8 |
V |
Diagnostics
|
Parameter |
Range |
Unit |
Accuracy |
Calibration |
|
Temperature |
0 to +70 |
°C |
±3°C |
Internal/External |
|
Voltage |
3.0 to 3.6 |
V |
±3% |
Internal/External |
|
RX Power |
-20 to -6 |
dBm |
±3dB |
Internal/External |
The I2C bus interface uses the 2-wire serial CMOS E2PROM protocol. The serial interface meets the following specifications:
1. Support a maximum clock rate of 280 KHz.
2. Input/output levels comply with LVCMOS/LVTTL or compatible logics.
Low: 0 – 0.8 V High: 2.0 – 3.3 V Undefined: 0.8 – 2.0 V

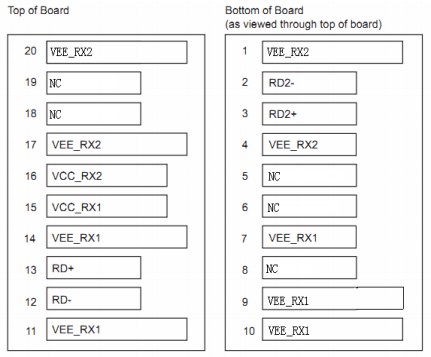

Pin Definitions
Pin Descriptions
|
Pin |
Signal Name |
Description |
Plug Seq. |
Notes |
|
1 |
VEE_RX2 |
Receiver2 Ground |
1 |
|
|
2 |
RD2- |
Inv. Received2 Data Out |
3 |
Note1 |
|
3 |
RD2+ |
Received2 Data Out |
3 |
|
|
4 |
VEE_RX2 |
Receiver2 Ground |
3 |
|
|
5 |
I2CCLK |
SCL Serial Clock Signal |
3 |
Note3 |
|
6 |
I2CDATA |
SDA Serial Data Signal |
3 |
Note3 |
|
7 |
VEE_RX1 |
Receiver1 Ground |
3 |
|
|
8 |
LOS1 |
Loss1 of Signal |
3 |
Note4 |
|
9 |
VEE_RX1 |
Receiver1 Ground |
1 |
Note4 |
|
10 |
VEE_RX1 |
Receiver1 Ground |
1 |
Note2 |
|
11 |
VEE_RX1 |
Receiver1 Ground |
1 |
|
|
12 |
RD- |
Inv. Received Data Out |
3 |
Note1 |
|
13 |
RD+ |
Received Data Out |
3 |
|
|
14 |
VEE_RX1 |
Receiver1 Ground |
1 |
|
|
15 |
VCC_RX1 |
Receiver1 Power Supply |
2 |
|
|
16 |
VCC_RX2 |
Receiver2 Power Supply |
2 |
|
|
17 |
VEE_RX2 |
Receiver2 Ground |
1 |
|
|
18 |
LOS2 |
Loss2 of Signal |
3 |
Note4 |
|
19 |
NC |
Not Connected |
3 |
Note4 |
|
20 |
VEE_RX2 |
Receiver2 Ground |
1 |
Note2 |
Plug Seq.: Pin engagement sequence during hot plugging.
1) These are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up Voltage shall be VccR.
I2C CLK is the clock line of two wire serial interface for serial ID
I2C DATA is the data line of two wire serial interface for serial ID
2) LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor. Pull up voltage between 2.0V and Vcc+0.3V. Logic 1 indicates loss of signal; Logic 0 indicates normal operation. In the low state, the output will be pulled to less than 0.8V.
3) RD-/+: These are the differential receiver outputs. They are internally AC-coupled 100 differential lines which should be terminated with 100Ω (differential) at the user SERDES.
Serial ID Field Memory Map
The module serial ID and calibration information is stored in the E2PROM of the SFP supervising device using the address map.
|
Byte Addr |
Bit Size |
Name |
Description |
Value (hex) |
|
0 |
1 |
Identifier |
Type of transceiver |
82 |
|
1 |
1 |
Ext.Identifier |
Extended identifier of type of transceiver |
04 |
|
2 |
1 |
Connector |
Code for connector type |
07 |
|
4~10 |
7 |
Transceiver |
Code for electronic or optical compatibility, Not applicable. |
|
|
11 |
1 |
Encoding |
Code for serial encoding algorithm |
30 |
|
12 |
1 |
BR, Nominal |
Nominal signaling rate, units of 100MBd. |
1E |
|
13 |
1 |
Rate Identifier |
Type of rate select functionality, Not applicable |
|
|
14 |
1 |
Length(SMF, km) | Link length supported for single mode fiber, units of km |
14 |
|
15 |
1 |
Length(SMF) |
Link length supported for single mode fiber, units of 100m |
00 |
|
16 |
1 |
Length(50um) |
Link length supported for 50um OM2 fiber, units of 10m |
00 |
|
17 |
1 |
Length(62.5um) |
Link length supported for 62.5um OM1 fiber, units of 10m |
00 |
|
18 |
1 |
Length(cable) |
Link length supported for copper or direct attach cable,units of m |
00 |
|
19 |
1 |
Length(OM3) |
Link length supported for 50um OM3 fiber, units of 10m |
00 |
|
20~35 |
16 |
Vendorname |
SFP vendor name (ASCII) |
X |
|
36 |
1 |
Reserved |
Reserved |
00 |
|
37~38 |
3 |
VendorOUI |
SFP vendor IEEE company ID |
00 |
|
40~55 |
16 |
VendorPN |
Part number provided by SFP vendor (ASCII) |
X |
|
56~59 |
4 |
Vendorrev |
Revision level for part number provided by vendor (ASCII) |
X |
|
60 |
2 |
Wavelength |
Laser wavelength (Passive/Active Cable Specification Compliance) |
|
|
61 |
|
|||
|
62 |
1 |
Unallocated |
|
|
|
63 |
1 |
CC_BASE Options |
Check code for Base ID Fields |
|
|
64 |
2 |
Options |
Indicates which optional transceiver signals are implemented |
|
|
65 |
|
|||
|
66 |
1 |
BR, max |
Upper bit rate margin, units of % |
05 |
|
67 |
1 |
BR, min |
Lower bit rate margin, units of % |
5F |
|
68~84 |
16 |
Vendor SN |
Serial number provided by vendor (ASCII) |
X |
|
85~91 |
8 |
Date code |
Vendor’s manufacturing date code |
|
|
92 |
1 |
Diagnostic Monitoring Type |
Indicates which type of diagnostic monitoring is implemented(if any) in the transceiver |
28 |
|
93 |
1 |
Enhanced Options |
Indicates which optional enhanced features are implemented(if any) in the transceiver |
90 |
|
94 |
1 |
SFF-8472 Compliance |
Indicates which revision of SFF-8472 the transceiver complies with. |
X |
|
95 |
1 |
CC_EXT |
Check code for the Extended ID Fields |
|
|
96~127 |
32 |
Vendor Specific |
Vendor Specific EEPROM |
0 |
Digital Diagnostic Monitoring Interface (2-Wire Address A2H)
|
Byte Addr |
Bit Size |
Name |
Description and Value of the Field |
|
00-01 |
2 |
Temp High Alarm |
MSB at lower address .100°C |
|
02-03 |
2 |
Temp Low Alarm |
MSB at lower address .-50°C |
|
04-05 |
2 |
Temp High Warning |
MSB at lower address .95°C |
|
06-07 |
2 |
Temp Low Warning |
MSB at lower address .-45°C |
|
08-09 |
2 |
Voltage High Alarm |
MSB at lower address .3.7V |
|
10-11 |
2 |
Voltage Low Alarm |
MSB at lower address .2.9V |
|
12-13 |
2 |
Voltage High Warning |
MSB at lower address .3.6V |
|
14-15 |
2 |
Voltage Low Warning |
MSBatloweraddress.3.0V |
|
16-17 |
2 |
Bias High Alarm |
MSB at lower address .70mA |
|
18-19 |
2 |
Bias Low Alarm |
MSB at lower address .8mA |
|
20-21 |
2 |
Bias High Warning |
MSB at lower address .65mA |
|
22-23 |
2 |
Bias Low Warning |
MSB at lower address .9mA |
|
24-25 |
2 |
RX2 Power High Alarm |
MSB at lower address.1dBm |
|
26-27 |
2 |
RX2 Power Low Alarm |
MSB at lower address .-25dBm |
|
28-29 |
2 |
RX2 Power High Warning |
MSB at lower address. 0dBm |
|
30-31 |
2 |
RX2 Power Low Warning |
MSB at lower address. -24dBm |
|
32-33 |
2 |
RX1 Power High Alarm |
MSB at lower address. 1dBm |
|
34-35 |
2 |
RX1 Power Low Alarm |
MSB at lower address. -25dBm |
|
36-37 |
2 |
RX1 Power High Warning |
MSB at lower address. 0dBm |
|
38-39 |
2 |
RX1 Power Low Warning |
MSB at lower address. -24dBm |
|
40-55 |
16 |
Reserved |
Reserved |
|
56-59 |
4 |
|
|
|
60-63 |
4 |
|
|
|
64-67 |
4 |
|
|
|
68-71 |
4 |
|
|
|
72-75 |
4 |
|
|
|
76-77 |
2 |
TX_I(Slope) |
Set to1for “internally calibrated” Devices. Value is 0100. |
|
78-79 |
2 |
TX_I(Offset) |
Set to zero for “internally calibrated” Devices.Valueis0000. |
|
80-81 |
2 |
TX_PWR(Slope) |
Set to 1 for“internally calibrated” Devices. Value is 0100. |
|
82-83 |
2 |
TX_PWR(Offset) |
Set to zero for “internally calibrated” Devices. Value is 0000. |
|
84-85 |
2 |
T(Slope) |
Set to 1 for “internally calibrated” Devices.Valueis0100. |
|
86-87 |
2 |
T(Offset) |
Settozerofor“internallycalibrated” Devices. Valueis0000. |
|
88-89 |
2 |
V(Slope) |
Setto1for“internallycalibrated” Devices.Value is 0100. |
|
90-91 |
2 |
V(Offset) |
Set to zero for “internally calibrated” Devices. Value is 0000. |
|
92-94 |
3 |
Reserved |
Reserved |
|
95 |
1 |
Checksum |
Check sum of bytes 0–94. |
|
96-97 |
2 |
Temperature (MSB, LSB) |
Internally measured module temperature |
|
98-99 |
2 |
Supply Voltage (MSB, LSB) |
Internally measured supply voltage in module |
|
100-101 |
2 |
|
