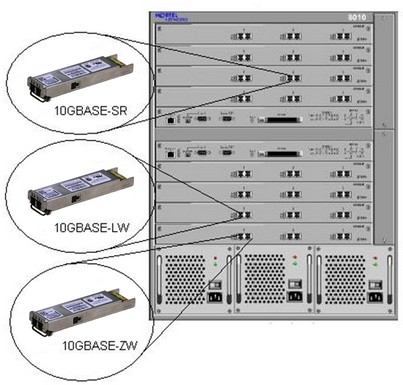

What are the main types of 10 Gigabit Ethernet?
10 Gigabit Ethernet is 10 times faster than gigabit Ethernet, with a data rate of 10 Gbit/s. The following are referenced in the description of our Transceiver Modules, so please use the below as a guide.
10GBASE-SR (short reach) :
- Medium: Multi-mode fibre (MMF)
- Distance: up to 300 metres
- Wavelength: 850 nm
10GBASE-LR (long reach) :
- Medium: Single-mode fibre (SMF)
- Distance: up to 10 km
- Wavelength: 1310 nm
10GBASE-LRM (long reach multimode) :
- Medium: Multi-mode fibre (MMF)
- Distance: up to 220 metres
- Wavelength: 1310 nm
10GBASE-ER (extended reach) :
- Medium: Single-mode fibre (SMF)
- Distance: up to 40 km
- Wavelength: 1550 nm
10GBASE-ZR :
- Medium: Single-mode fibre (SMF)
- Distance: up to 80 km
- Wavelength: 1550 nm
10GBASE-LX4 :
- Medium: Multi-mode fibre (MMF)
- Distance: up to 300 metres
- Medium: Single-mode fibre (SMF)
- Distance: up to 10 km
- Wavelength: 1300 nm
10GBASE-CX4 :
- Medium: Copper
- Distance: up to 15 metres
