10/100/1000Base-T to Dual 1000Base-X SFP Media Converter
Sopto 10/100/1000Base-T to Dual 1000Base-X SFP Gigabit Media Converter is upgraded by providing 2 Gigabit SFP slots, strengthened redundant function, and other features shown below:
■ DIP Switch for 3-port Operation in Gigabit Switch Mode or Redundant Mode
■ Hardware Fiber Port Redundant
The 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter is equipped with one 10/100/1000Base-T port and dual Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter provides high reliability and flexibility to extend the media transmission distance up to 550m, 10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

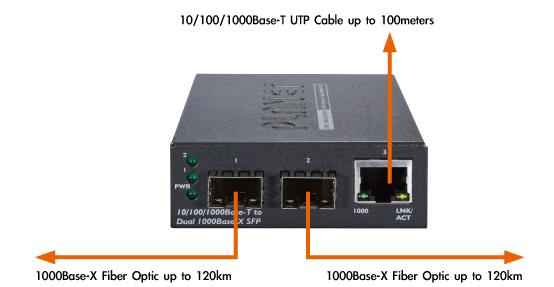

Ports of 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter
Via the built-in DIP switch, the 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter can be configured as 3-port Ethernet switch or 2-port Redundant Media converter. With the 3-port switch mode, the 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

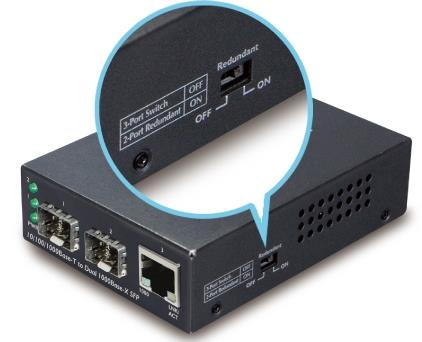

Redundant Port of 10/100/1000Base-T to Dual 1000Base-X SFP Media Converter
The 10/100/1000Base-T to Dual 1000Base-X SFP Gigabit Media Converter can be used as a standalone unit or as a slide-in module to the Sopto Media Converter Chassis, 7-Slot Media Converter Chassis and 15-Slot Media Converter Chassis. These media chassis can assist in providing DC power to the 10/100/1000Base-T to Dual 1000Base-X SFP Gigabit Media Converter and the fiber-optic network can be maintained at one central location. With the 3-port switch mode, they work in high performance Store and Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-duplex) and Back Pressure (Half-duplex) function.
As the 10/100/1000Base-T to Dual 1000Base-X SFP Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy simply by using the plug and play feature.
For purchasing high quality fiber optic media converters with low cost or for more products’ information, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
