OM1 Duplex Fiber Optic Patch Cord Switches and Servers
Laser optimized multi-mode fiber (LOMMF) is designed for use with 850 nm VCSELs. Today, this evolution continues with the development of OM4 multimode fiber as the industry prepares itself for speeds of 40 and 100 Gb/s.
For these parallel systems, IEEE set an objective of a minimum reach of 100 meters (m), specifically on OM3 fiber (OM1 Duplex and OM2 fibers will not be supported in the 40 Gb/s and 100 Gb/s standard).
Because the 100 m distance is expected to cover only about 85 percent of data center links, the Task force subsequently adopted OM1 Duplex 62.5/125, capable of reaching 125 m. Although the additional 25 m may seem insignificant, it will support the majority of the remaining access to distribution and distribution to core links in large data centers.

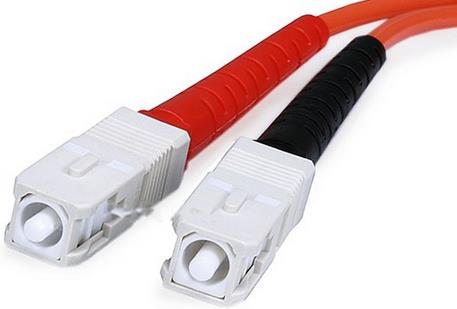

SC/PC OM1 Multi-mode Patch Cord
It supports 300-meter link lengths for 10 Gb/s applications and it is tested to ensure a 2,000 MHz-km Effective Modal Bandwidth (EMB). Its industry-standard 50um core size couples sufficient power from LED sources to support legacy applications like Ethernet, Token Ring, FDDI, and Fast Ethernet for virtually all in-building networks and many campus networks.
The 50um core size is also directly suitable for laser-based applications like Gigabit Ethernet and Fibre Channel, etc. Furthermore, it’s the recommended multimode fiber type in ANSI/EIA/TIA-942, Telecommunications Infrastructure Standard for Data Centers.
For more information, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com
