Removing the 40-Gigabit QSFP+ Transceiver Module
The QSFP+ transceiver module is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling QSFP+ transceiver modules or coming into contact with modules.
To remove a QSFP+ transceiver, follow these steps:
Step 1 For optical QSFP+ transceivers, disconnect the network interface cable from the QSFP+ transceiver connector.
Step 2 For QSFP+ transceivers equipped with a bail-clasp latch (See the Figure below):
a. Pivot the bail-clasp down to the horizontal position.
b. Immediately install the dust plug into the transceivers optical bore.
c. Grasp the sides of the QSFP+ transceiver and slide it out of the module socket.

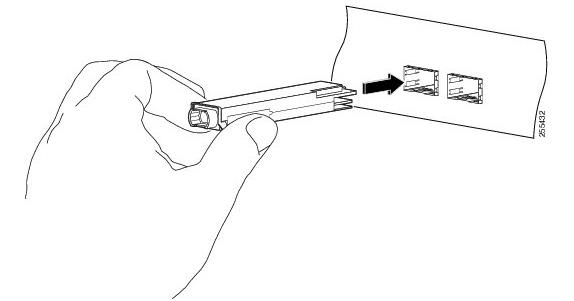

QSFP+ transceivers equipped with a bail-clasp latch

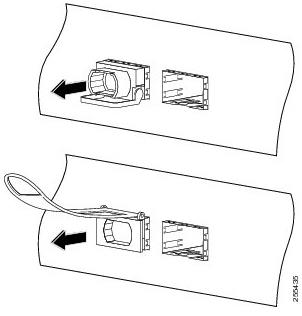

Step 3 For QSFP+ transceivers equipped with a pull tab latch (See the Figure, bottom view):
a. Immediately install the dust plug into the transceiver's optical bore.
b. Grasp the tab and gently pull to release the transceiver from the socket.
c. Slide the transceiver out of the socket.
Step 4
Place the QSFP+ transceiver into an antistatic bag.
Removing the 40-Gigabit QSFP+ Transceiver Module
For more high quality fiber optical module, please contact SOPTO.
