Splitter Technology for GEPON Network

Gigabit Ethernet Passive Optical Network (PON) splitters play an important role in Fiber to the Home (FTTH) networks by allowing a single PON network interface to be shared among many subscribers. The PLC Splitter contains no electronics and uses no power. They are the network elements that put the passive in Passive Optical Network and are available in a variety of split ratios, including 1:8, 1:16, and 1:32.

Splitters are installed in each optical network between the PON Optical Line Termination (OLT) and the Optical Network Unit (ONU) that the OLT serves. Networks implementing BPON, GPON, EPON, 10G EPON, and 10G GPON technologies all use these simple optical splitters.  In place of an optical splitter, a WDM PON network will use an Arrayed Wave Guide (AWG).

A PON network may be designed with a single optical splitter, or it can have two or more splitters cascaded together.  Since each optical connection adds attenuation, a single splitter is superior to multiple cascaded splitters. One net additional coupling (and source of attenuation) is introduced in connecting two splitters together.

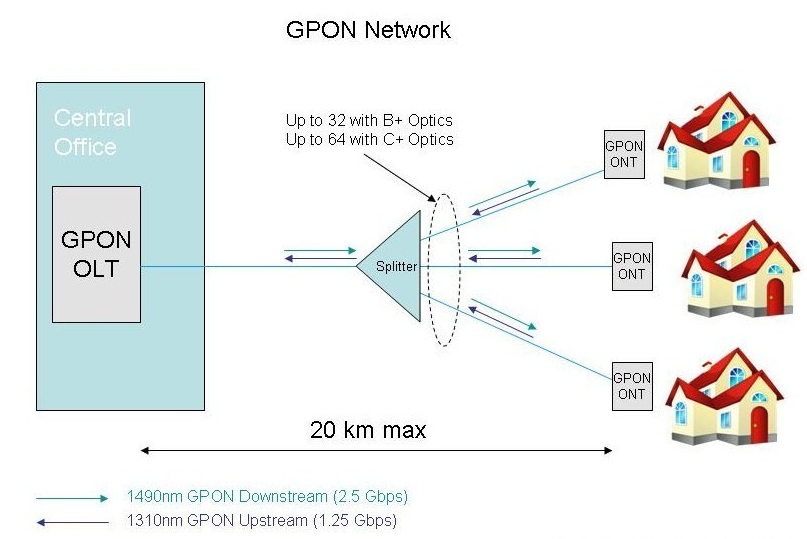

A single splitter is shown in the GPON network diagram below.  Note that the splitter can be deployed in the Central Office (CO) alongside the OLT, or it may be deployed in an OutSide Plant (OSP) cabinet closer to the subscribers. A splitter can also be deployed in the basement of a building for a Multiple Dwelling Unit (MDU) installation (not shown).

GPON Network

An interesting (and strange) fact is that attenuation of light through an optical splitter is symmetrical. It is identical in both directions.  Whether a splitter is combining light in the upstream direction or dividing light in the downstream direction, it still introduces the same attenuation to an optical input signal (a little more than 3 dB for each 1:2 split).

There are two basic technologies for building passive optical network splitters: Fused Biconical Taper (FBT) and Planar Lightwave Circuit (PLC). Fused Biconical Taper is the older technology and generally introduces more loss than the newer PLC splitters, though both PLC and FBT splitters are used in PON networks.

A Fused Biconical Taper (FBT) splitter is made by wrapping two fiber cores together, putting tension on the optical fibers, and then heating the junction until the two fibers are tapered from the tension and fused together. FBT attenuation tends to be a bit higher than attenuation from PLC splitters.

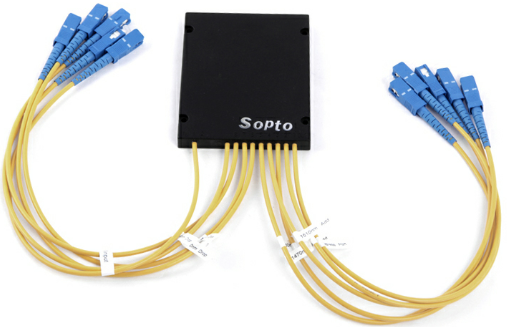

A 1x8 PLC splitter is diagrammed in the figure below. A PLC splitter is made with techniques much like those to manufacture semiconductors, and these optical splitters are very compact, efficient, and reliable. A single 1x32 PLC splitter may be no larger than 1 cm x 2 cm.

1x8 PLC Splitter

The loss to be expected from a 1x8 splitter, like the one diagrammed above is less than one dB greater than what would be expected from a perfect splitter, which has exactly 9 dB of loss (3dB for each 1x2 split). A good 1x32 PLC splitter has an attenuation in both directions of less than 17 dB or even 16 dB (a perfect 1x32 optical splitter would introduce 15 dB of loss).
