1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter

Sopto 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Particularly designed for network equipment requiring sufficient and reliable power input, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter supports up to 30 Watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network.

The special and convenient power system of the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter supports 24/48 VDC power, inputting for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75 degrees C, the I1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter can be placed in almost any difficult environment.

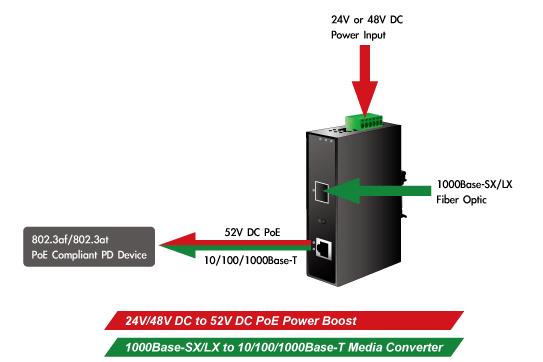

1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter Structure

The maximum distance between the PoE PSE (Power Sourcing Equipment) and PD (Powered Device) via Ethernet cable is 100 meters. To extend the PoE deployment range, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter is integrated with Fiber interface for farther distance applications. The 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter and its respective fiber connecting type include:

　　■ IGTP-802T: SC type multi-mode Fiber Interface, transmission distance up to 220m / 550m

　　■ IGTP-802TS: SC type single mode Fiber Interface, transmission distance up to 10km

　　■ IGTP-805AT: SFP slot supporting 100Base-FX / 1000Base-X Multi / Single Mode SFP module, transmission distance up to 120km (Varying on SFP module)

With the long Fiber distance support, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control and the LFP (Link Fault Passthrough function) function in the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.

Complying with the brand-new IEEE 802.3at High Power over Ethernet technology, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter provides up to 30 watts output power that doubles PoE power, more than the conventional 802.3af PoE currently. It is also backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

To facilitate the 802.3at High Power PoE usage with commonly used 24V DC or 48V DC power input for transportation and industrial-level applications, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter adapts 24/48V to 52V power boost technology to solving power source issue without the need for special power supplies. The 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter provides an integrated power supply with a wide range of voltages (24V / 48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 24V / 48V DC power supply inputs for high availability applications.

PD Media Converter

The 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converters is packaged in a compact, IP30 rugged strong case that allows either DIN-Rail or wall mounting for efficient use of cabinet space.

With IP30 rugged strong case protection and PoE design, the 1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter is ideal for service providers, campuses and public area to deploy the PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

For the places difficult to find the power outlet, the I1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n) wireless LAN access points and other network devices that need higher power to function normally.

For instance, users can flexibly install the security IP camera, wireless access point and other IEEE 802.3at / IEEE 802.3af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs.

For more information, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
