Differences between PCI and PCI-X
PCI (Peripheral Component Interconnect) is a data bus protocol. The first generation of cards that were built to utilize this bus are referred to as PCI cards. Although the term PCI still applies to the data bus in modern computers, several newer generations of interface protocols (such as PCI-X and PCIe) have since been developed. The original protocol for PCI cards and slots are now referred to as ‘Conventional’ PCI cards and slots. Conventional PCI cards are usually 32 bits, but some are 64 bits.
The standard configuration for conventional PCI is 133 MB/s. PCI cards can operate in PCI-X slots of the same operating voltage (3.3V or 5V), even if the PCI-X slot is longer than the PCI card connector.
.jpg)
When a conventional PCI card is running in a PCI-X slot, all other PCI-X slots on the same bus will be limited to the speed of the slowest card.
PCI-X (PCI eXtended) is an enhanced PCI bus technology. All PCI-X cards operate at 64 bits and are capable of up to 1064 MB/s (8 times as much as Conventional PCI peak rates). In many cases, PCI-X is backward compatible with existing PCI cards.
PCI-X cards will operate in PCI slots of the same operating voltage (3.3V or 5V), but the data transfer rate will be limited to the slower PCI rates. If the PCI-X card connector is longer than the PCI slot, mechanical impediments (such as capacitors near the slot) may prevent the card from fitting in the slot.
The following images show the physical differences between different PCI and PCI-X cards and slots:
Differences between different PCI and PCI-X slots

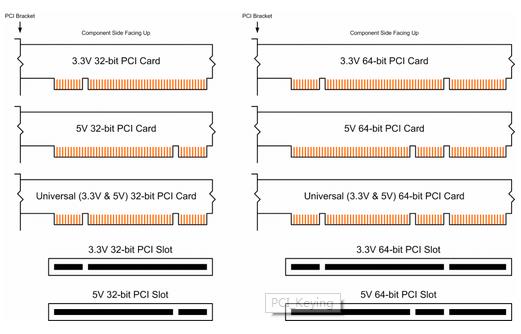

Differences between different PCI and PCI-X cards
Sopto is a professional PCI-E Card manufacturer and provider, our PCIe products mainly include PCIe 1.0 Server Adapters, PCIe 2.0 NIC and PCIe 3.0 Sever Cards and so on.
For more information, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
