Useful Multi-mode Fiber Connectors
When your network grows to 40G or 100G, you may find yourself in adrift in a sea of cables and connectors that don’t work.
Whether you are a client or not, we want to help you understand that Multi-Mode Fiber (MM Fiber) connectors are actually quite simple. In the chart below, we want to show you just how straightforward the setup for each network size really is – in a 1/10G network, 40G network or 100G network.

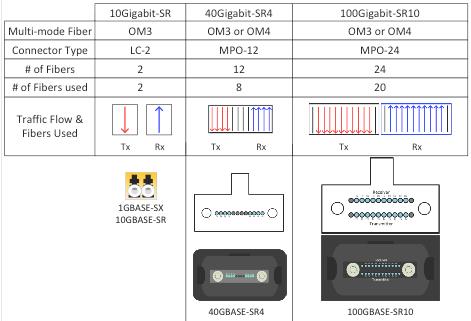

10G,40G and 100G Multi-mode Fiber Connectors
So as you can see, each MM Fiber cable has 2, 12, or 24 10G fibers inside. In a LC-2 connector (1 or 10G networks), there is one single multi-mode fiber in each direction. Following the same logic, there are four multi-mode fibers – in each direction – in a 40G connector and ten in a 100G. In a 10G-SR link, you transmit (Tx) 10G of traffic and receive (Rx) 10G of traffic in a full duplex link over the 2 fibers. In a 40G-SR4 link, you transmit (Tx) 40G of traffic over 4 fibers and receive (Rx) 40 G of traffic over 4 fibers in a full duplex link total 80 gigabits of traffic; the same applies to 100G.
For more info, please browse our website. For purchasing fiber optic assembly products, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
