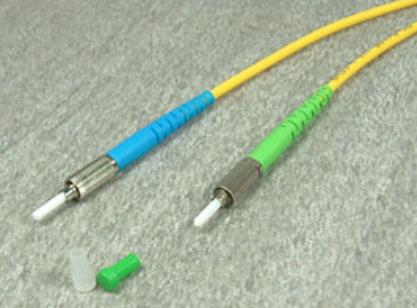

Patch Cord DIN connectors



Manufacturer: SOPTO Patch Cord DIN
Type: DIN Patch Cord
Data Rete: 10Gigabit
Connector Type: DIN
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..


The DIN connectors used in our patch cords meet DIN 47256. They are compact and have spring-loaded free floating zirconia ferrules for superior performance.


In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.


Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.


Features
1. Compatible with DIN 47256
2. Compact design
3. Low insertion loss and high return loss
4. Materials meet RoHS requirements
5. Riser, Plenum, and LSZH cables available

Applications
1. Telecommunication
2. Computer networks
3. CATV networks
4. Instrumentation

Insertion Loss, SM 9/125um PC

DIN Insertion Loss SM 9 or 125um PC

Insertion Loss, SM 9/125um APC

DIN Insertion Loss SM 9 or 125um PC

* Typical performance charts and actual data may vary from lot to lot.



Dimensional Drawing

DIN patch cord Dimensional Drawing
