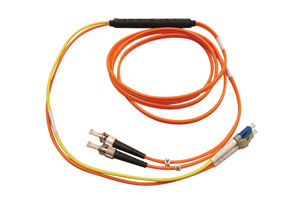

Mode Conditioning Patch Cord
Manufacturer: SOPTO | |
Type: Mode Conditioning Patch Cord | |
Data Rete: 10Gigabit | |
Connector Type: LC/SC/MTRJ... | |
End Face: UPC/PC/APC | |
Skin Material: PVC/LSZH/OFNR... |
Mode conditioning patch cord are used in Gigabit Ethernet 1000BASE-LX applications, and deploying new high-speed 1000BASE-LX routers, switches, or transceivers within existing multimode system backbones. It includes multimode 62.5/125 and 50/125 and often used in the 1300nm or 1310nm optical wavelength window.
Any attempt to connect 1000Base-LX/LH equipment over short distances of multimode fiber without the use of mode conditioning fiber will result in a high bit error rate. Mode conditioning cables are normally used in pairs to connect the equipment to the cable plant. So then these cables are usually ordered in even numbers.
Feature of Mode Conditioning Patch Cord
- Increased transmission bandwidth up to 4 times
- Fits existing cabling scheme
- Compliant with IEEE 802.3Z standard
- Removes effects form DMD
- Permanent, low-profile offset closure
- Enables 1000Base-LX/LH optics to be used with Multi-Mode Fibre
- PC, UPC, APC polish types
- Low insertion loss (<1dB)
- Reduced modal noise
- Vcsel laser source into standard multimode fiber
- OM1, OM2, OM3 Mode Conditioning Patch Cords are available
Applications of Mode Conditioning Patch Cord
- Gigabit Ethernet
- Equipment interconnection
- High speed data transfer
- LAN
- Telecom network
