What is the Difference between 64-bit PCI Slot and PCI-X Slot?
There is a question about 64-bit PCI Slot and PCI-X Slot and this question is collected by us from internet. The original text is shown below:
I need to identify what kinds of slots are available from my computer based on the shape of the slot. So far, I can easily tell the difference between 32-bit PCI and PCIe slots but I am having problem with 64-bit PCI and PCI-X slots.
From my googling, the slot itself looks like either a 3.3V 64-bit slot or a 3.3V PCI-X slot, but I cannot find any article that put both kind of slots together side-by-side for comparison. Is there any way to identify the slot based on the physical shape of the slot only?
For this question, we can obtain the answer from Wikipedia:

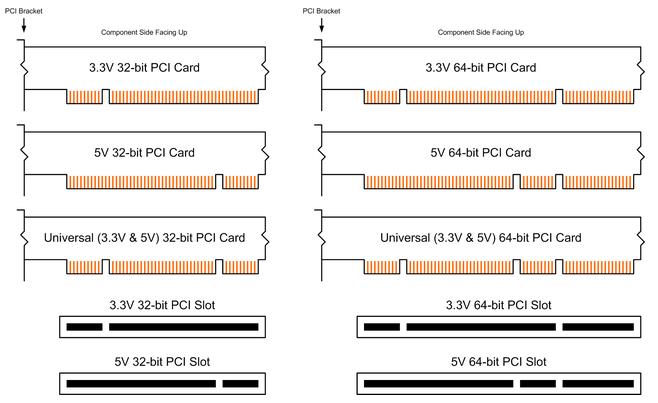

The 64-bit PCI connector can be distinguished from 32-bit by being longer and from PCI-X by having three segments, with the one in the middle much shorter than the others. PCI-X slots can be distinguished from 64-bit PCI as the small segment is first, instead of in the center.
Difference PCI Slots
