PCIe2 LP 2-Port 10GbE RoCE SFP+ Adapter Overview
There are two types of IBM PCIe2 LP 2-Port 10GbE RoCE SFP+ Adapter. One is a full-height adapter; another is a low-profile adapter. The names of these two adapters are:
• FC EC27: PCIe2 LP 2-Port 10GbE RoCE SFP+ adapter
• FC EC28: PCIe2 2-Port 10GbE RoCE SFP+ adapter
The adapter is a PCIe generation-2 (PCIe2), dual port, 10-Gigabit Ethernet (GbE) adapter with a PCIe 2.0 host bus interface. The adapter delivers high-bandwidth and low-latency 10GbE connectivity. The adapter is optimized for high-transaction databases, cloud computing, virtualization, storage, and other data center applications. The adapter improves network performance by increasing available bandwidth to the central processing unit (CPU) and providing enhanced performance.
The two 10Gb small form-factor pluggable (SFP+) transceiver ports are used for connectivity with other servers or switches in the network. Each SFP+ port provides Ethernet connectivity with a nominal data rate of 10 gigabits per second (Gbps), and uses the SFP+ copper twinaxial cables up to 5 m (16.4 ft) in length. The link aggregation and failover features of the adapter are ideal for critical network applications that require redundancy and high availability.

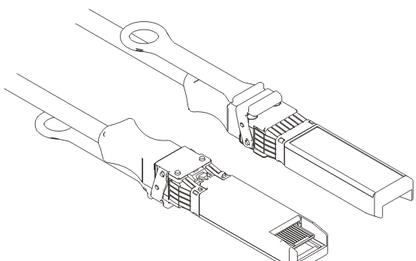

This adapter requires the use of compatible SFP+, 10 Gbps, copper, twinaxial, active, Ethernet cables. See Figure 1 for a view of the cable top and cable bottom. These cables are compliant with industry standard specifications SFF-8431 Rev 4.1 and SFF-8472 Rev 10.4, and all applicable IBM® requirements.
Figure 1
cable top and cable bottom
As an optical fiber optical communication service provider, Sopto supplies compatible gigabit PCI Express Cards and 10G SFP+ Cables as well as XFP cables, QSFP+ cables and so on for Cisco, IBM, HUAWEI and other brands’ devices. Our products have a reasonable price. For the details, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
