PCIe 2.0 4-port 1GbE Adapter Overview
The IBM PCIe2 LP 4-port 1GbE Adapter is a full-height, generation-2 PCIe adapter. This adapter provides four 1-Gb Ethernet ports that can be configured to run at 1000 megabits per second (Mbps) (or 1 gigabit per second (Gbps)), 100 Mbps, or 10 Mbps. The adapter connects to a network that uses unshielded twisted pair (UTP) cable for distances of up to 100 meters (328.08 feet). The adapter supports AIX® Network Installation Management (NIM) boot capability. The adapter conforms to the IEEE 802.3ab 1000Base-T standard. The adapter supports jumbo frames when running at the 1000 Mbps speed.

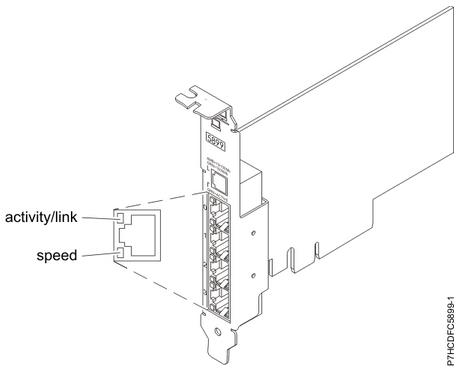

PCIe 2.0 4-port 1GbE Adapter
Each of the Ethernet ports can be connected by using:
• CAT5e (or later) UTP cables for 1000 Mbps network attachment
• CAT5 or CAT3 UTP cables for 100 Mbps or 10 Mbps network attachment
The cables are attached to the copper RJ45 connectors. Each port is independent of one another and supports full-duplex or half-duplex. The half-duplex mode does not support a speed of 1000 Mbps.
The adapter provides the following features:
• Supports interrupt moderation to deliver increased performance while significantly reducing processor utilization
• Supports dual port operation in almost any PCIe slot, except x1
• Supports auto-negotiation, full-duplex only
• Supports integrated media-access control (MAC) and physical layer (PHY)
• Supports Fast EtherChannel (FEC) with the existing software
• Supports gigabit EtherChannel (GEC) with the existing software
• Supports IEEE 802.3ad (Link Aggregation control protocol)
• Supports IEEE 802.1Q VLANs
• Supports IEEE 802.3 z, ab, u, x flow control support
• Supports IEEE 802.1p
• Supports IEEE 802.3ab for TX
• Supports TCP checksum offload transmission control protocol (TCP), user datagram protocol (UDP), Internet Protocol (IP) for IPv4 and IPv6
• Supports TCP segmentation or large send offload
• Supports EEPROM-SPI and single EEPROM
• Supports interrupt levels INTA and MSI
• Hardware certifications FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
• Network Controller (MAC) Intel 82571EB
• Compliant with European Union Directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
As an optical fiber optical communication service provider, Sopto supplies compatible gigabit PCI Express Cards for Cisco, IBM, HUAWEI and other brands’ devices. Our products have a reasonable price. For the details, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
