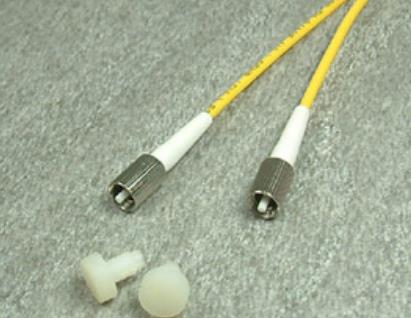

Patch Cord D4 connectors

Manufacturer: SOPTO
Type: D4 Patch Cord
Data Rete: 10Gigabit
Connector Type: D4
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..

The D4 connectors used in our patch cords belong to an older generation of connectors that are keyed and spring-loaded. The zirconia ferrules are 2mm in diameter and fully compatible with existing D4 hardware.

In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality.

Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.

Features

1. Non-optical disconnect performance
2. 2mm zirconia ferrules diameter
3. Low insertion loss and high return loss
4. Materials meet RoHS requirements
5. Riser, Plenum, and LSZH cables available

Applications

1. Telecommunication
2. Computer networks
3. Instrumentation

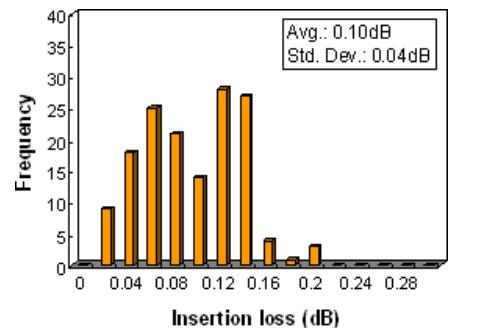

Optical Performance Distribution

Insertion Loss, SM 9/125um PC

* Typical performance chart and actual data may vary from lot to lot.

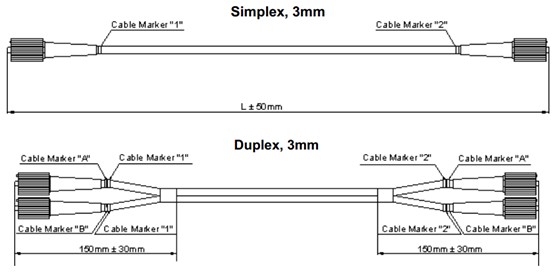

Dimensional Drawing
