Patch Cord SC Connector

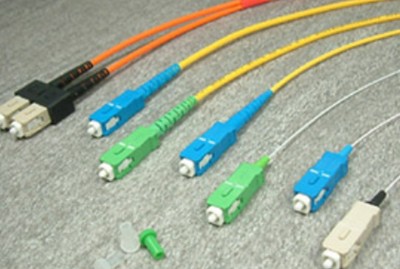

Manufacturer: SOPTO SC Connector Patch Cord.jpg
Type: SC Patch Cord
Data Rete: 10Gigabit
Connector Type: SC
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR...


The SC* connectors used for our patch cords are designed to NTT-SC* standards and are fully compatible with existing SC hardware. Two simplex connectors can be configured into a duplex format by adding a duplex clip. In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.


Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.


*NTT-SC is a trademark of NTT Advanced Technology Corp.



  1. Push-pull latching mechanism
  2. Non-optical disconnect performance
  3. High quality zirconia ferrules
  4. Materials meet RoHS requirements
  5. Riser, Plenum, and LSZH cables available



  1. Telecommunication
  2. Computer networks
  3. CATV networks
  4. Active device termination
  5. Instrumentation


Optical Performance Distribution

Insertion Loss, MM 62.5/125um

SC Insertion Loss MM 62.5 or 125um


Insertion Loss, SM 9/125um PC

SC Insertion Loss SM 9 or 125um PC

* Typical performance charts and actual data may vary from lot to lot.

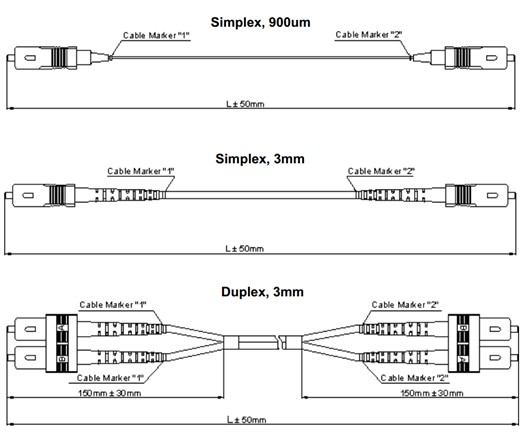

Dimensional Drawing

SC patch cord Dimensional Drawing
