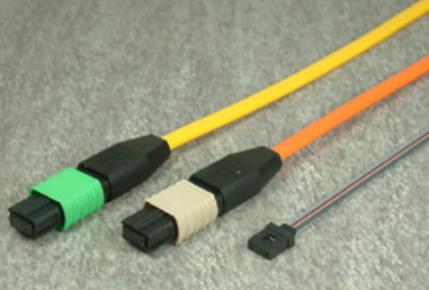

Patch Cord MTP-MPO Connector

Manufacturer: SOPTO Patch Cord MTP-MPO Connector
Type: MTP-MPO Patch Cord
Data Rete: 10Gigabit
Connector Type: MTP-MPO
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..



MT family is an array technology providing quick connection for 4, 8 or 12 fibers. It reduces time and cost of installation. Fiber alignment is achieved with high precision guide pins. The ferrules and connectors are manufactured to IEC 61754-5 and 61754-7 respectively.



The MT family has two catagories:

1) MPO or MTP connector assembled to ribbon (or ribbonized) cable or bare ribbon.

Connectors with push-pull latching mechanism are coupled via an adapter.

MTP has an extra feature over MPO with a removable housing for re-polishing.

2) MT ferrule with fiber ribbon. MT ferrules are coupled using a spring clamp only.



*MTP is a trademark of US Conec Ltd



Features

1. High density interconnection

2. High precision guide pins for fiber alignment

3. Materials meet RoHS requirements

4. Riser, Plenum, and LSZH cables available



Applications

1. Local Area Networks

2. Optical switch connections

3. Fiber Channel

4. Parallel interconnection

5. Miniature OE modules



Dimensional Drawing

MPO-MTP Dimensional Drawing



MPO-MTP Dimensional Drawing
