Patch Cord FC Connector

Manufacturer: SOPTO
Type: FC Patch Cord
Data Rete: 10Gigabit
Connector Type:  FC
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..

The FC* connectors used in our patch cords are designed to NTT-FC* standards with high quality zirconia ferrules and non-optical disconnect performance. They are fully compatible with existing FC hardware.

In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.

Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.

*NTT-FC is a trademark of NTT Advanced Technology Corp.

Features

1. Non-optical disconnect performance
2. High quality zirconia ferrules
3. Low insertion loss and high return loss
4. Materials meet RoHS requirements
5. Riser, Plenum, and LSZH cables available

Applications

1. Telecommunication
2. Computer networks
3. CATV networks
4. Active device termination
5. Instrumentation

Optical Performance Distribution

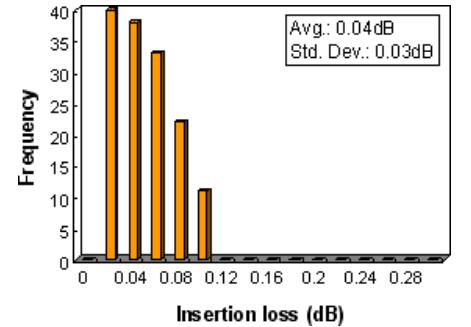

Insertion Loss, MM 62.5/125um

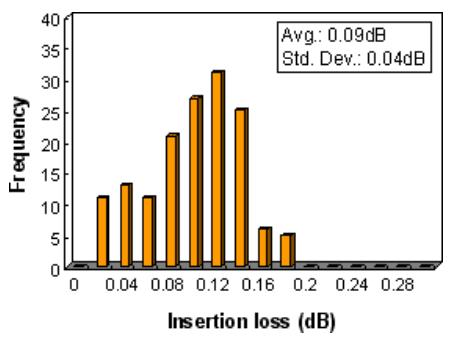

Insertion Loss, SM 9/125um PC

* Typical performance charts and actual data may vary from lot to lot.

Dimensional Drawing
