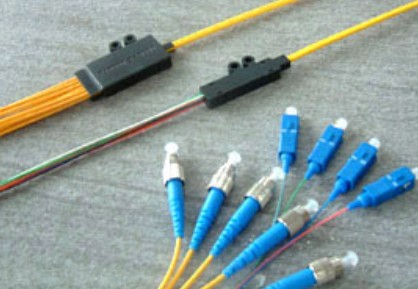

Fan-Out Patch Cord


Manufacturer: SOPTOFan Out Patch Cord
Type: Fan-Out Patch Cord
Data Rete: 10Gigabit
Connector Type: SC/FC/ST/LC/E2000/MU/DIN/D4/MPO/MTP..
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..


Fiber optic fan-outs are designed for patch panels or cable ducts where space-saving is required. The patch panels have either array fusion splicing (between outside plant cables and bare ribbon pigtails) or array interconnections (MPO/MTP fan-out). For cables that run from patch panels to equipment or patch panels to patch panels, the fan-out cords with either ribbon cables or distribution cables can save space for cable ducts. Distribution cables are more rugged than ribbon cables.


Most popular connectors, such as SC, FC, ST, LC, E2000, MU, DIN, D4, and MPO/MTP are available. A fan-out cord can have MPO/MTP at one end, and fan-out terminated with single fiber connectors at the other end. The fan-out tube has a choice of 900um or 2mm.



  1. 4, 6, 8 and 12-fiber count available

  2. Save duct space and installation time

  3. 900um, or 2mm fan-out tube

  4. Easy to use

  5. Jacketed ribbon cables, bare ribbons, or distribution cables



  1. Telecommunication

  2. Long haul networks

  3. CATV networks

  4. Building interconnections


Dimensional Drawing

Bare ribbon fan-out pigtail with flat fan out kin 900um

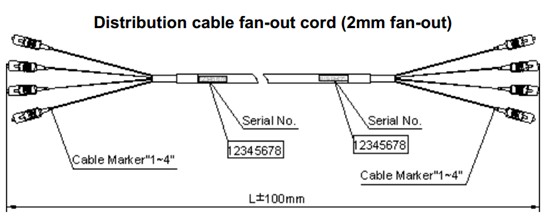

distribution cable fan out cord 2mm
