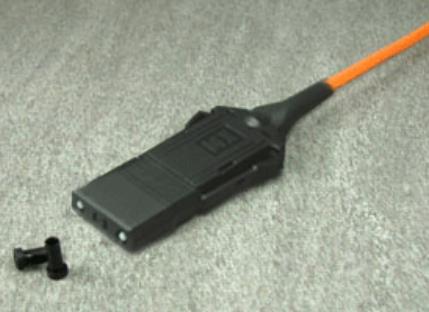

Patch Cord ESCON Connector

Manufacturer: SOPTO
Type: ESCON Patch Cord
Data Rete: 10Gigabit
Connector Type: ESCON
End Face:  UPC/PC/APC or others
Skin Material: PVC/LSZH/OFNR..

The ESCON* architecture was developed to improve connectivity between mainframe, its peripherals, and other networks. The connector system is a retractable shroud duplex meeting IBM* requirements.

In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.

Other than standard single mode and multimode fibers, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request

*ESCON and IBM are trademarks of International Business Machines Corp.

Features

1. Push-pull latching mechanism

2. Polarized housing with retractable shroud

3. Compatible with IBM ESCON architecture

4. Materials meet RoHS requirements

5. Riser, Plenum, and LSZH cables available

Applications

1. IBM networks

2. Peripheral control

3. Storage devices

4. Workstations

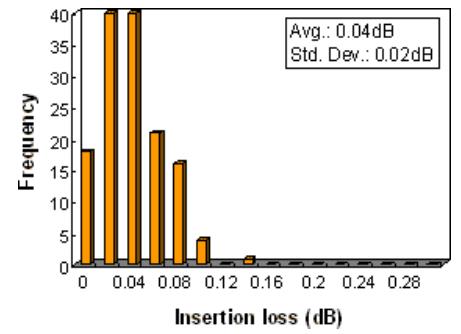

Optical Performance Distribution

Insertion Loss, MM 62.5/125um

Insertion Loss, SM 9/125um PC

* Typical performance chart and actual data may vary from lot to lot.

Dimensional Drawing
