N x E1 to ETH Converter

Product Impression:

  1. Manufacturer: SOPTO
  2. Latest Price: Contact our customer services NOW!
  3. Data Rate: 10/100Mbps
  4. Wavelength: 850nm/1310/1550nm
  5. Fiber Types: Single mode, Multi mode
  6. UTP Cable: UTP category 3, 4, 5, 5e cable
  7. Color: White or as customized
  8. Number of E1 Interface: E1/ 2E1/ 4E1/ 8E1/ 16E1
  9. Fiber Connector Type: SC, FC, ST
  10. Fiber cable: 8.3/125, 8.7/125, 9/125 or 10/125
  11. Interface Type: BNC, RJ45, Fiber Ethernet Port
  12. Transmission Mode: Half duplex or full duplex
  13. E1 Interface Impedance: 75Ω (unbalance), 120Ω (balance)
  14. Transmission Distance: 2km, 20km, 40km, 60km, 80km, 100km, 120km
  15. Storage Temperature: -40~ 70 °C
  16. Operating Temperature: -10~60°C
  17. Operating Humidity: 0%~90% RH no condensing
  18. Storage Humidity: 5%~90% RH no condensing
  19. Dimensions:  340 (D) x 240 (W) x 55 (H)mm; ;9" L x 5.8" W x 1.6" H
  20. Weight:  ≤ 1 kg
  21. Power: 220V/ 110V/48V
  22. Power Consumption: <3W
  23. Manageable or Unmanageable: Manageable
  24. Application: Wireless Network, Remote LAN Connections, Optical SONET / SDH Network
  25. Browse the Evaluation: Click here to browse



Performance Feature:

  1. Mini rack or 19 inch rack
  2. According with IEEE 802.3
  3. Support E1 channel hot plug
  4. Support 10Base-T, 100Base-T
  5. Power supply AC-220V or DC-48V
  6. Easy for installation and maintenance
  7. Local and remote loopback supported
  8. Provide local E1 loop, remote E1 loop functions
  9. Support Ethernet exchanger with VLAN function
  10. According with IEEE 802.3, 802.3u Ethernet and G.823 protocols
  11. E1 interface according with ITU-T G.703, G.704 and G.823
  12. Support VLAN, flow control, and self- negotiation; full/semi duplex, 10M/100M optional
  13. Ethernet transmission transparent, support AUTO-MDIX, straight and crossover auto-adapt



Note: Part in order to prevail in kind. Please contact customer service before buying.



Quality Certification:

  1. Good Anti-electromagnetic interference (EMI)
  2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
  3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



Factory:

  1. Advanced dust-free workshop
  2. Experienced technicians
  3. Mature production technology
  4. Standard production process



Information you want to know more:

  1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas
  2. Arrival Date: 5 to 7 days
  3. Selectable Logistics: FedEx, DHL, TNT,UPS or EMS
  4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
  5. Warranty: 1-3 years
  6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.



pay and logistics

Related Read:

  1. Payment methods
  2. Delivery guide
  3. Return & Refund
  4. Guarantee
  5. FAQ



Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin



Features and advantages of N x E1 to Ethernet converter



The N x E1 to Ethernet converters maximum transmission capacity up to 16E, it uses reverse multiplexing technology to transmit 10/100BaseT data with bonding multi E1 channels, When used in 10/100Mbps half/full duplex mode, this equipment can be connected with Ethernet switch or hub (integrated circuit machine) to expand transmitting distance and application scope of Ethernet by making full use of large number of E1 channels in current telecommunication network. It can easily to satisfy real-time video, audio, and data transmit.



Typical Application of N x E1 to Ethernet converters

Typical Application of N x E1 to Ethernet converters

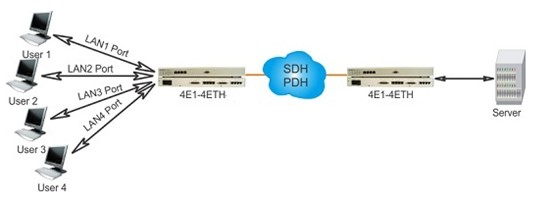

Device networking application - unit's are connected to using 4E1 lines directly to PDH or SDH network, and special interconnection features are possible at SDH level due to GFP-F, VC and LCAS technology support.

Device networking application

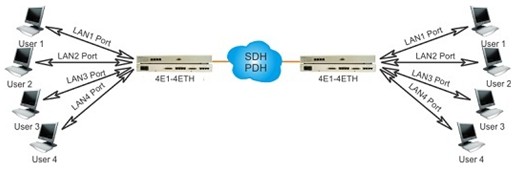

Access Server - Two 4E1-4ETH devices are connected via SDH or PDH transmission network interconnection. Using GFP and VC technology get together 1~4E1 and provide 4×2Mbps transmission channel bandwidth used to transport Ethernet services. Transmission channel bandwidth dynamic adjustment using LCAS technology.



“User 1’” and “User 2” can communicate with each other and are able to access to the “Server” , “User 3” and “User 4” can communicate with each other and are able to access to the ‘Server’, But “User 1” and “User 2” are isolated with “User 3” and “User 4”.



Access Server





Part No. Description
SPT-4E1-ETH 4E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN
SPT-4E1-ETH-G 4E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN GFP
SPT-4E1-4ETH 4E1/4*10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V
SPT-8E1-ETH 8E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN
SPT-8E1-ETH-G 8E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN GFP
SPT-8E1-4ETH 8E1/4*10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V
SPT-16E1-ETH 16E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN
SPT-16E1-ETH-G 16E1/10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V support VLAN GFP
SPT-16E1-4ETH 16E1/4*10/100BaseT Converter E1 Port: 120ohm or 75Ohm, Power Supply: 220V or -48V
