V.35 to ETH Converter

Product Impression:

1. Manufacturer: SOPTO

2. Latest Price: Contact our customer services NOW!

3. Data Rate: 10/100Mbps

4. UTP Cable: UTP category 3, 4, 5, 5e cable

5. Color: Black/White/Grey or as customized

6. Interface Type: RJ45, 10/100Base-T, V.35 port

7. Impedance: 120Ω(balance) 75Ω(unbalance)

8. Transmission Mode: Half duplex or full duplex

9. Transmission Distance: 2km, 20km, 40km, 60km or customer specified

10. Storage Temperature: -40° ~70°C

11. Operating Temperature:  0°C ~ 50°C

12. Operating Humidity: 0%~90% RH no condensing

13. Storage Humidity: 5%~90% RH no condensing

14. Dimensions: 210 (L) x 138 (W) x 30(H)mm (Desktop device for mini type)

15. Weight: 750g

16. Power: 220V or 48V

17. Power Consumption: <3W

18. Application: Remote LAN Connections, Wireless Network, Optical Sonet / SDH Network

19. Browse the Evaluation: Click here to browse

Performance Feature:

1. AC220V±20%

2. 256 frame buffer

3. Ethernet interface support

4. Transport protocols: HDLC

5. Small volume and low cost

6. Support IEEE 802.3 and ETHV.2

7. 10,000 MAC address LAN table

8. Auto-study and update function

9. Provide E1 master clock, E1 line clock

10. Support 10M full duplex and half duplex protocol

11. Support local loop, to remote loop, order remote loop

12. Supports DTC and DCE, external clock and internal clock

13. WAN interface: V.35, rate range from 0 to 10Mbps self-adapt

14. Filtration & transmission rate reach to 15000 Frame per second

15. LED indicator the status of both local and remote side equipment

16. Embed BER tester, generate pseudo random code and test BER online

17. Equip Ethernet monitor, when problem detected, auto-reset to eliminate problem

18. 10/100M high fast powered self-adapting self-educated long-range Ethernet bridge

19. V.35 interface for DTE, the rate adaptive DCE device, maximum up to 10Mbps Robust

20. Without disturbance of erosive and solvent gas, raising dust or strong magnetic field

Note: Part in order to prevail in kind. Please contact customer service before buying.

Quality Certification:

1. Good Anti-electromagnetic interference (EMI)

2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates

Factory:

1. Advanced dust-free workshop

2. Experienced technicians

3. Mature production technology

4. Standard production process

Information you want to know more:

1. Reachable Continents: Asia, Europe, Oceania, Africa, the Americas

2. Arrival Date: 5 to 7 days

3. Selectable Logistics: FedEx, DHL, TNT,UPS or EMS

4. Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment

5. Warranty: 1-3 years

6. Discounts, Promotions and Gifts: Please just contact our online customer services or pay attention to our website.

Related Read:

1. Payment methods

2. Delivery guide

3. Return & Refund

4. Guarantee

5. FAQ

Please pay attention to our SNS pages:

Facebook      Twitter      Linkedin

Overview of V.35 to ETH converter

V.35 to ETH converter, device for converting from V.35 to 10Base-T, is a kind of high performance, self-study and long-distance ETH bridges. It can realize the convert between the V.35 interface and Ethernet interface. It is widely used in data communication such as the connection between the Base band modem and LAN. It is of small volume and low cost and is very suitable for connection application which needs low cost equipment. Also, it can be used as a LAN stretcher. Generally, it is used in pairs.

Technical Specification:

V.35 port

1. Transmission velocity: 2048Kbps

2. Electric characteristics: according to ITU-T V.35

3. Connector: DB25

4. Connect way: DCE

5. Clock mode: Inner clock, outer clock

10/100Base-T port

1. Rate: 10M/100M, full/half duplex, auto adopt

2. Protocol: IEEE 802.3, IEEE 802.1Q(VLAN)

3. MAC addr. List: 4096 MAC addr. can be learned

4. Connecter: RJ45, Auto-MDIX (across and straight line auto adopt)

Power supply

1. Adapting module power, voltage range can be wide, with strong anti-jamming function.

2. With good insulation, stable working status is available

3. power: -48V type, input voltage: -36V～-72V

4. power: +24V type, input voltage: +18V～+36V

5. power: -24V type, input voltage: -18V～-36V

6. power: 220V type, input voltage: 180V～260V

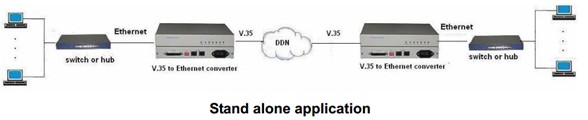

Application Diagram:
