10G Ethernet Standard Overview
The 10 Gigabit Ethernet standard extends the IEEE 802.3ae*standard protocols to a wire speed of 10Gbps and expands the Ethernet application space to include WAN-compatible links. The 10 Gigabit Ethernet standard provides a significant increase in bandwidth while maintaining maximum compatibility with the installed base of 802.3 standard interfaces, protects previous investment in research and development, and retains the existing principles of network operation and management.
Under the Open Systems Interconnection (OSI) model, Ethernet is fundamentally a Layer 1 and Layer 2 protocol. 10 Gigabit Ethernet retains key Ethernet architecture, including the Media Access Control (MAC) protocol, the Ethernet frame format, and the minimum and maximum frame size. Just as Gigabit Ethernet, both 1000BASE-X and 1000BASE-T, followed the standard Ethernet model, 10 Gigabit Ethernet continues the evolution of Ethernet in speed and distance, while retaining the same Ethernet architecture used in other Ethernet specifications, except for one key ingredient. Since 10 Gigabit Ethernet is a full-duplex only technology, it does not need the carrier-sensing multiple-access with collision detection (CSMA/CD) protocol used in other Ethernet technologies. In every other respect, 10 Gigabit Ethernet matches the original Ethernet model.

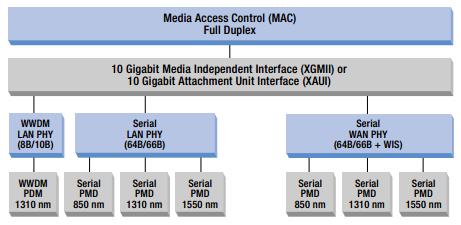

Figure 1 The architectural components of the 802.3ae* standard.
At the physical layer (Layer 1), an Ethernet physical layer device (PHY) connects the optical or copper media to the MAC layer through a connectivity technology (Figure 1). Ethernet architecture further divides the physical layer into three sublayers: Physical Medium Dependent (PMD), Physical Medium Attachment (PMA), and Physical Coding Sublayer (PCS). PMDs provide the physical connection and signaling to the medium; optical transceivers, for example, are PMDs. The PCS consists of coding (e.g., 64B/66B) and a serializer or multiplexor. The IEEE 802.3ae* standard defines two PHY types: the LAN PHY and the WAN PHY. They provide the same functionality, except the WAN PHY has an extended feature set in the PCS that enables connectivity with SONET STS-192c/SHD VC-4-64c networks.
Sopto supplies high quality twinax cables, like SFP+ DAC, XFP to XFP cables, MiniSAS Cables and so on to meet 10G Ethernet applications.
For more info, please browse our website. For purchasing fiber optic assembly products, please contact a Sopto representative by calling 86-755-36946668, or by sending an email to info@sopto.com.
