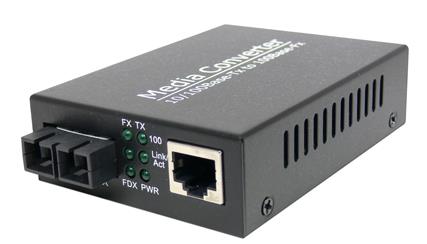

Fast Ethernet Fiber Media Converter

The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100Base-T and 100Base-FX Fast Ethernet. It supports 10/100Base-T and 100Base-FX applications.

The Converter is equipped with 2 single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply… [Details]

Feature:

1. Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standard
2. Have SNMP management function when SNMP stand-alone is used in the SNMP media chassis.
3. Single-mode, multi-mode, WDM Bi-direction types are available.
4. Auto-detection of half/full duplex transfer mode for TX port
5. Auto-negotiation of 10/100Mbs rate and Auto-MDI/MDIX for TX port
6. Provide switch configuration of half/full duplex transfer mode for FX port
