Indoor Duct Water-Blocking Drop Cable
Manufacturer: SOPTO | |
Type: GJYXFHA/GJYXFHS | |
Cable Diameter (mm): 7.3/7.4 | |
Crush Resistance long/short terms(N/100mm): 1000/2200 | |
Tensile Strength long/short term(N): 300/600 | |
Cable Weight (kg/km): 42/59 | |
Certification: RoHS, CE, FCC | |
Newest Quote: |

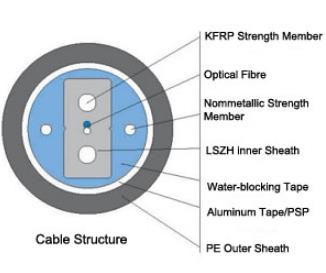

The optical fibers are laid in the center of the indoor duct water-blocking drop cable. Two parallel KERPs are placed at two sides to press the LSZH jack. Generally, the cable size of this indoor duct water-blocking drop cable is 7.3mm or 7.4mm. Sopto supplies these cable are 42kg/km or 59kg/km… [Details]
Characteristics
Novel groove design, easily strip and splice, simplify the installation and maintenance, high tensile strength
From outdoor duct application to indoor wiring
Waterproof, good safety
Application
For waterproof application in fiber to the home and other access network, this indoor duct water-blocking drop cable is very useful. To purchase this high quality cable with low cost, please contact us.
