10G 40km 1470~1610nm CWDM XFP Optical Transceiver Module

1550nm 1G fiber optic transceiver
Contact Us Now

Features

  • Wavelength selectable to ITU-T standards covering CWDM grid wavelengthsXFP MSA Compliant
  • data rate from 9.95 Gbps to 11.3Gbps
  • No Reference Clock required
  • Cold EML transmitter and APD receiver
  • 1470nm~1610nm link length up to  40km
  • Low Power Dissipation 3.5W Maximum
  • -5ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical powerRoHS compliant and lead free

Applications

  • SONET OC-192&SDH STM 64
  • 10G Ethernet
  • 80 km 10G Fiber Channel
  • CWDM Networks

Description

CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR/EW and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage 1 Vcc3 -0.5 4.0 V
Supply Voltage 2 Vcc5 -0.5 6.0 V
Supply Voltage 3 Vcc2   2 V
Storage Temperature Tst -40 85 ºC
Case Operating Temperature Top -5 70 ºC
Optical Input Received Power APD-IN - -8 dBm

Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage 1

Vcc3

3.13

3.3

3.47

V

Supply current 1

Icc3





750

mA

Supply Voltage 2

Vcc5

4.75

5

5.25

V

Supply current 2

Icc5





500

mA

Supply Voltage 3

Vcc2

1.71

1.8

1.89

V

Supply current 3

Icc2





750

mA

Operating Case temperature

Tca

-5

-

70

ºC

Module Power Dissipation

Pm

-



3.5

W

Transmitter Specifications – Optical

Parameter

Symbol

Min

Typical

Max

Unit

Data Rate Multirate

Mra

9.95

-

11.1

Gbps

Center Wavelength

ëc

1464.5

ëc

1617.5

nm

Center wavelength stability

ÄëD

−6.5



6.5

nm

Optical Transmit Power

Po

0

-

+4

dBm



Optical Transmit Power (disabled)



PTX_DISABLE



-



-



-30



dBm

Extinction Ratio

ER

9



-

dB

Channel Spacing

∆f

-

20

-

nm

Jitter Generation

TJP-P

-

-

0.1

UI

Spectral Width (-20dB)

Dl20

-

0.1

0.3

nm

Side Mode Suppression Ratio

SMSR

30

-

-

dB

Dispersion penalty(800ps/nm)

DP





2

dB

Eye Mask

Compliant with ITU-T G.691 STM-64 eye mask

△Laser- Start of Life

▲Laser End of life


Transmitter Specifications – Electrical

Parameter

Symbol

Min

Typical

Max

Unit

Input differential impedance

Rim

-

100

-

Ω

Differential data Input

VtxDIFF

120

-

850

mV

Transmit Disable Voltage

VD

2.0

-

Vcc3+0.3

V

Transmit Enable Voltage

Ven

0

-

+0.8

V

Transmit Disable Assert Time

Vn

-

-

10

us

Receiver Specifications – Optical

Parameter

Symbol

Min

Typical

Max

Unit

Data Rate Multirate

Mra

9.95

-

11.1

Gbps

Receiver Sensitivity 9.95Gb/s

Rsens9

-

-

-24

dBm



Receiver Sensitivity 10.7Gb/s



Rsens10



-



-



-23



dBm

Maximum Input Power

RX-overload

-

-

-7

dBm

Input Operating Wavelength

λ

1260

-

1620

nm

Reflectance

Rrx

-

-

-27

dB

Loss of Signal Asserted



-34

-

-

dBm

LOS De-Asserted



-

-

-24

dBm

LOS Hysteresis



0.5

-

-

dB

Receiver Specifications – Electrical

Parameter

Symbol

Min

Typical

Max

Unit

Differential Output Swing

Vout P-P

350

-

850

mV

Rise/Fall Time

Tr / Tf

24

-

-

ps

Loss of Signal –Asserted

VOH

2

-

Vcc3+0.3-

V

Loss of Signal –Negated

VOL

0

-

+0.4

V

Low Speed Electrical Signal Timings



Parameter

Symbol

Min

Typical

Max

Unit

TX Disable, Power_Down/RST

VIH

2.0



Vcc3+0.3

V

VIL

-0.3



0.8

V

Interrupt, Mod_NR, Rx_Los

VOH

Vdd3-0.5



Vdd3+0.3

V

VOL

0



0.4

V



SCL,SDA(IN)

VIH

Vdd3*0.7



Vdd3+0.5

V

VIL

-0.3



Vdd3*0.3

V



SCL,SDA(OUT)

VOH

Vdd3-0.5



Vdd3+0.3

V

VOL

0



0.4

V

I2C clock rate

t_reset



-

400

KHz

Leakage current

IL

-

-

100

uA

Pin Descriptions



Pin

Logic

Symbol

Name/Description

Ref.

1



GND

Module Ground

1

2



VEE5

Optional –5.2 Power Supply – Not required





3



LVTTL-I



Mod-Desel

Module De-select; When held low allows the module to , respond to 2-wire serial interface commands





4



LVTTL-O



Interrupt

Interrupt (bar); Indicates presence of an important condition which can be read over the serial 2-wire interface



2

5

LVTTL-I

TX_DIS

Transmitter Disable; Transmitter laser source turned off



6



VCC5

+5 Power Supply



7



GND

Module Ground

1

8



VCC3

+3.3V Power Supply



9



VCC3

+3.3V Power Supply



10

LVTTL-I

SCL

Serial 2-wire interface clock

2



11

LVTTL- I/O



SDA



Serial 2-wire interface data line



2

12

LVTTL-O

Mod_Abs

Module Absent; Indicates module is not present. Grounded in the module.

2

13

LVTTL-O

Mod_NR

Module Not Ready;

2

14

LVTTL-O

RX_LOS

Receiver Loss of Signal indicator

2

15



GND

Module Ground

1

16



GND

Module Ground

1

17

CML-O

RD-

Receiver inverted data output



18

CML-O

RD+

Receiver non-inverted data output





19



GND

Module Ground

1

20



VCC2

+1.8V Power Supply







21





LVTTL-I





P_Down/R ST

Power Down; When high, places the module in the low power stand-by mode and on the falling edge of P_Down initiates a module reset



Reset; The falling edge initiates a complete reset of the module including the

2-wire serial interface, equivalent to a power cycle.



22



VCC2

+1.8V Power Supply



23



GND

Module Ground

1



24



PECL-I



RefCLK+

Reference Clock non-inverted input, AC coupled on the host board – Not required



3

25

PECL-I

RefCLK-

Reference Clock inverted input, AC coupled on the host board – Not required

3

26



GND

Module Ground

1

27



GND

Module Ground

1

28

CML-I

TD-

Transmitter inverted data input



29

CML-I

TD+

Transmitter non-inverted data input



30



GND

Module Ground

1

Notes:

1. Module circuit ground is isolated from module chassis ground within the module.

2. Open collector; should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.

3. A Reference Clock input is not required.

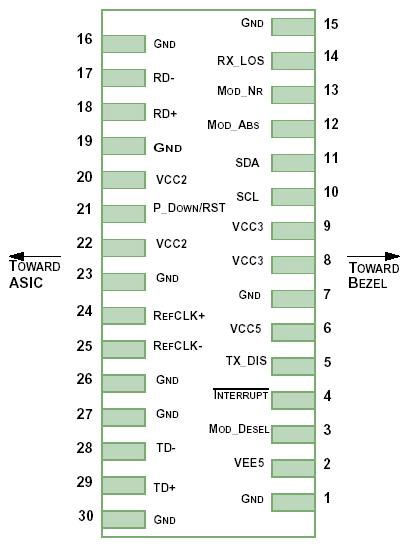

Figure1:Electrical Pin-out Details

Digital Diagnostic Functions

SPT-XCXXTG-80D Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification Rev 4.5.

As defined by the XFP MSA, XFP transceivers provide digital diagnostic functions via a 2-wire serial interface, which allows real-time access to the following operating parameters:

  • Transceiver temperature
  • Laser bias current
  • Transmitted optical power
  • Received optical power
  • Transceiver supply voltage

It also provides a sophisticated system of alarm and warning flags, which may be used to alert end-users when particular operating parameters are outside of a factory-set normalrange.

Figure2: 2-wire Serial Digital Diagnostic Memory Map

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller inside the transceiver, which is accessed through the 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL pin) is generated by the host. The positive edge clocks data into the XFP transceiver into those segments of its memory map that are not write-protected. The negative edge clocks data from the XFP transceiver. The serial data signal (SDA pin) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially. The 2-wire serial interface provides sequential or random access to the 8 bit parameters, addressed from 000h to the maximum address of the memory.

EEPROM Serial ID Memory Contents(Table 01h):



Data

Address

Field Size

(Bytes)

Name of

Field



Description and Contents

Base ID Fields

128

1

Identifier

Type of Serial transceiver (06h=XFP)

129

1

Ext. Identifier

TX Ref Clock Input not Required (90h)

130

1

Connector

Code of optical connector type (07h=LC)

131-138

8

Transceiver

10GBASE-ZR

139

1

Encoding

NRZ(10h)

140

1

BR-MIN

9.953Gbps(63h)

141

1

BR-MAX

11.3Gbps(71h)

142

1

Length(SMF)-km

40KM(50h)

143

1

Length(E-50um)

(00h)

144

1

Length(50um)

(00h)

145

1

Length(62.5um)

(00h)

146

1

Length(Copper)

(00h)

147

1

Device Tech

Cooled1550nm EML, APD Detector

148-163

16

Vendor Name

XFP vendor name: “SOPTO” (ASCII)

164

1

CDR Support

CDR supports 9.953Gbps~11.1Gbps(F8h)

165-167

3

Vendor OUI

XFP transceiver vendor OUI ID

168-183

16

Vendor PN

Part Number: “SPT-XCXXTG-80D” (ASCII)

184-185

2

Vendor rev

“32 61” means 2a revision (ASCII)

186-187

2

Wavelength

Specified ITU Grid Wavelength

188-189

2

Wavelength Tolerance

+/-0.025nm

190

1

Max Case Temp

70°C(46h)

191

1

CC_BASE

Check sum of bytes 128~190

192-195

4

Power Supply

3.5W(MAX) (AF 96 A7 01)

196-211

16

Vendor SN

Serial number (ASCII)

212-219

8

Date code

Year(2 bytes), Month(2 bytes), Day (2 bytes)

220

1

Diagnostic type

No BER Support, Average Power(08h)

221

1

Enhanced option

Optional Soft Tx_Disable and P_Down(60h)

222

1

Aux Monitoring

+5.0V and +3.3V Supply Voltage(67h)

223

1

CC_EXT

Check sum of bytes 192~222

Vendor Specific ID fields

224-255

32

Vendor specific

Vendor specific





Figure3: Recommended Host Board Power Supply Circuit

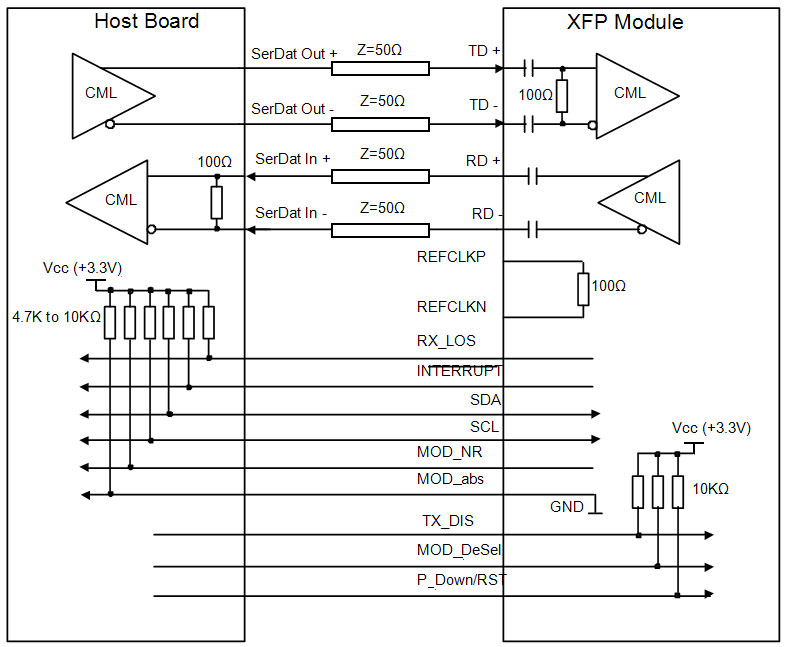

Figure4: Recommended High-speed Interface Circuit

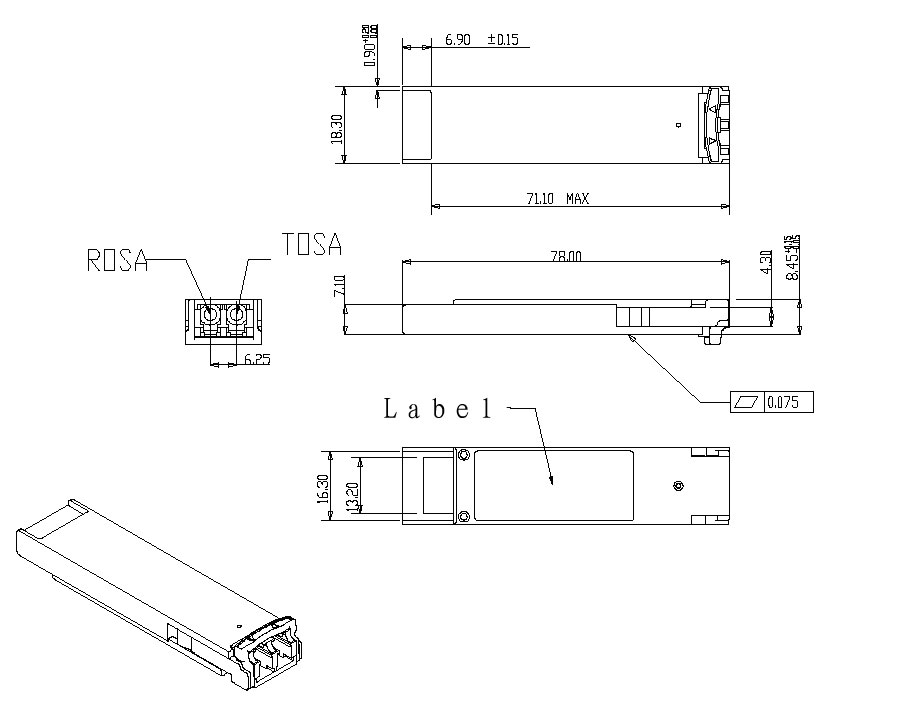

Figure5: Mechanical Specifications

Ordering information

Part Number

Product Description

SPT-XC47TG-40D

1470nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC49TG-40D

1490nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC51TG-40D

1510nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC53TG-40D

1530nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC55TG-40D

1550nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC57TG-40D

1570nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC59TG-40D

1590nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC

SPT-XC61TG-40D

1610nm, 10Gbps, CWDM XFP 40km, -5ºC ~ +70ºC
